Tektronix 161-420-63 I/O Trigger Interconnect Module IGS-1614-63 BNC SMU

(No reviews yet) Write a Review
SKU:
28560
MPN:
161-420-63
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
24.00 LBS
Shipping:
Calculated at Checkout

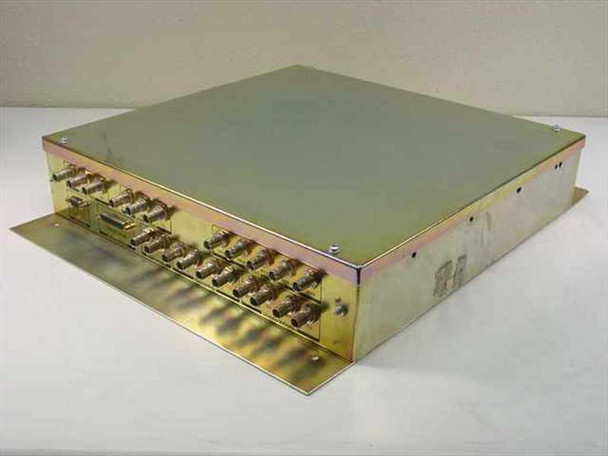

  • Tektronix 161-420-63 I/O Trigger Interconnect Module in IGS-1614-63 enclosure — three-quarter front/side view showing BNC connectors along front edge
  • Tektronix 161-420-63 IGS-1614-63 enclosure — rear three-quarter view showing gold-anodized aluminum enclosure top and side, small label visible on front face

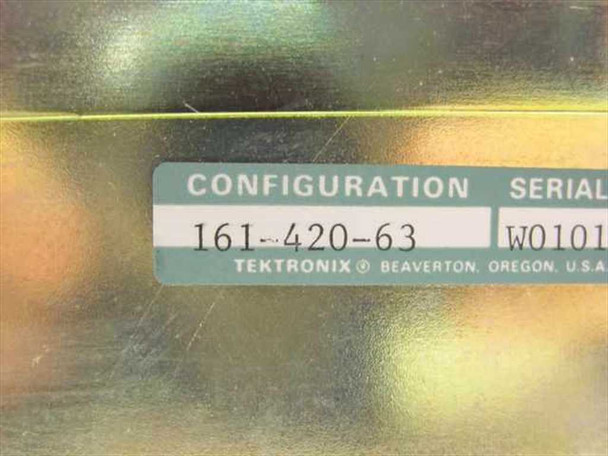

  • Tektronix 161-420-63 configuration label closeup — reads Configuration 161-420-63, Serial W0101, Tektronix Beaverton Oregon USA

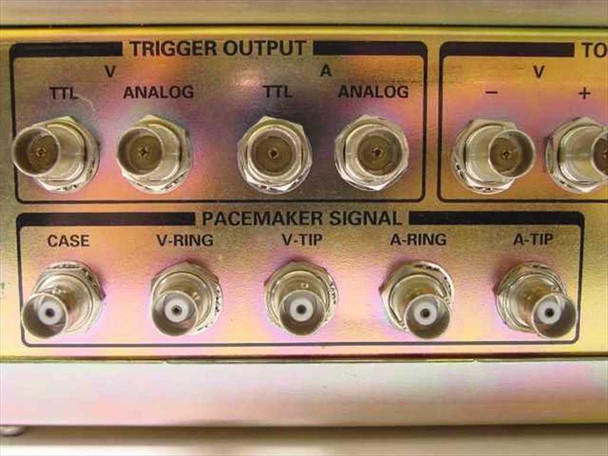

  • Tektronix 161-420-63 front panel closeup — Trigger Output section with TTL and Analog BNC connectors (V and A channels), and Pacemaker Signal section with CASE, V-RING, V-TIP, A-RING, A-TIP BNC connectors
  • Tektronix 161-420-63 front panel closeup — To Digitizer BNC outputs (V+, V-, A+, A-), From ARBS BNC inputs (V, A), and SMU Output section (LO, HI-SENSE, HI)
  • Tektronix 161-420-63 front panel section — From DIG I/O DB25 connector with DIG I/O CONTROL label, POWER DB9 connector, and SMU Input BNC connectors (LO, HI-SENSE, HI)
  • Tektronix 161-420-63 internal PCB view — green Pacemaker Matrix board with multiple yellow relay components, ICs, resistors, and white wire harness interconnects
  • Tektronix 161-420-63 internal PCB label closeup — reads PACEMAKER MATRIX 16S-1614-63 Rev 1A
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Tektronix 161-420-63 I/O Trigger Interconnect Module IGS-1614-63 BNC SMU

I/O trigger interconnect module for Tektronix measurement systems. Routes and conditions trigger signals, SMU connections, and digital I/O across benchtop and rack-mounted configurations.

Specifications & What's Included

  • Model: 161-420-63 (IGS-1614-63)
  • Connectors: BNC, DB25, DB9
  • Trigger outputs: TTL and analog BNC
  • SMU connections: HI, HI-SENSE, LO (input/output)
  • Digital I/O: DB25 control connector
  • Internal board: Pacemaker Matrix 16S-1614-63 Rev 1A
  • Enclosure: Gold-anodized aluminum with rack flange
  • Manufactured in Beaverton, Oregon

Applications

Used in Tektronix test and measurement systems for signal routing and trigger distribution. Supports integration of arbitrary waveform generators, digitizers, and source-measure units. Commonly deployed in semiconductor characterization, device testing, and automated measurement setups requiring coordinated multi-instrument control.

Condition: Used
This Tektronix 161-420-63 I/O Trigger Interconnect Module in enclosure IGS-1614-63 has been inspected and is in good used condition. It was pulled from a working environment where it was in active use and functional. The gold-anodized enclosure shows light surface wear consistent with lab use. The BNC connectors, DB25 DIG I/O port, and DB9 power connector all appear clean and undamaged in the photos. The internal Pacemaker Matrix PCB (16S-1614-63) is visible and shows no obvious damage or burnt components. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tektronix
Model:
161-420-63
MPN:
161-420-63
Secondary Model:
IGS-1614-63
SKU:
28560
Type:
I/O Trigger Interconnect Module
Condition:
Used – Pulled from Working Environment
Form Factor:
Benchtop / Enclosed Module
Connector Type:
BNC, DB25, DB9
Interface Type:
BNC (TTL/Analog Trigger), SMU, DIG I/O, POWER
Trigger Output:
TTL and Analog BNC outputs
SMU Connections:
SMU Input (LO, HI-SENSE, HI) and SMU Output (LO, HI-SENSE, HI)
Signal Routing:
Pacemaker Signal: CASE, V-RING, V-TIP, A-RING, A-TIP
Additional I/O:
FROM ARBS (V, A), TO DIGITIZER (V+, V-, A+, A-)
Digital I/O:
DIG I/O Control via DB25 connector
Power Connector:
DB9 POWER connector
Internal Board:
Pacemaker Matrix board 16S-1614-63 Rev 1A
Relay Count:
Multiple yellow relays visible on internal PCB
Enclosure:
Gold-anodized aluminum enclosure with rack flange
Country/Region of Manufacture:
United States (Beaverton, Oregon)
Seller Notes:
Module only in enclosure; pulled from a working environment
Condition Notes:
Tektronix 161-420-63 I/O Trigger Interconnect Module (IGS-1614-63) inspected and in good used condition. Pulled from a working environment where it was in active use. BNC, DB25, and DB9 connectors appear clean and undamaged.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
