Tektronix

Tektronix IGS-1614-60 Trigger Interconnect Module Rev A Rackmount VX4385 VX4287

(No reviews yet) Write a Review
SKU:
24420
MPN:
IGS-1614-60
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
15.00 LBS
Shipping:
Calculated at Checkout

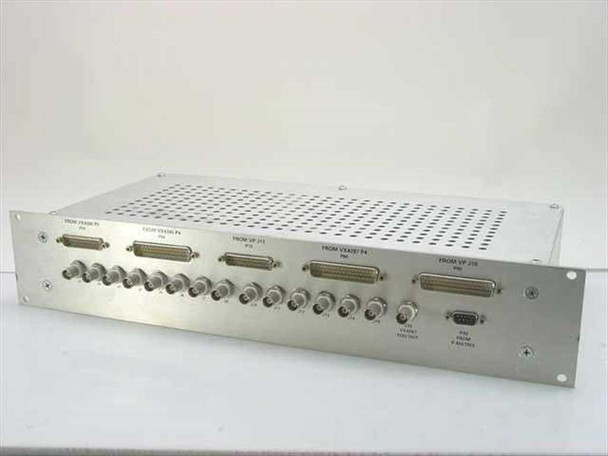

  • Tektronix IGS-1614-60 Trigger Interconnect Module – front panel showing BNC connectors and D-Sub 50-pin ports labeled FROM VX4385 P5, P4, FROM VP J11, FROM VX4287 P4, and FROM VP J16

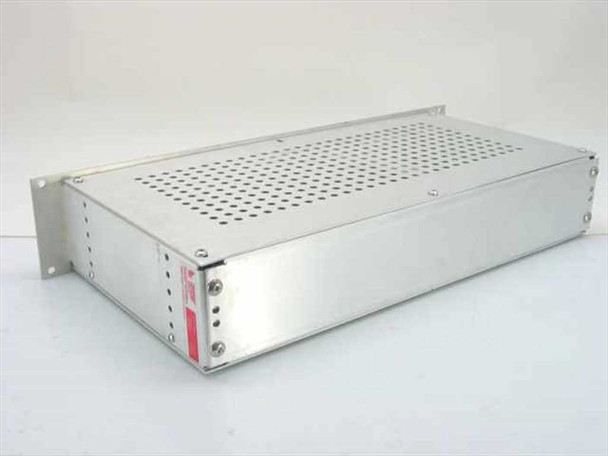

  • Tektronix IGS-1614-60 Trigger Interconnect Module – right-side and top view of 2U rackmount enclosure showing perforated aluminum top cover

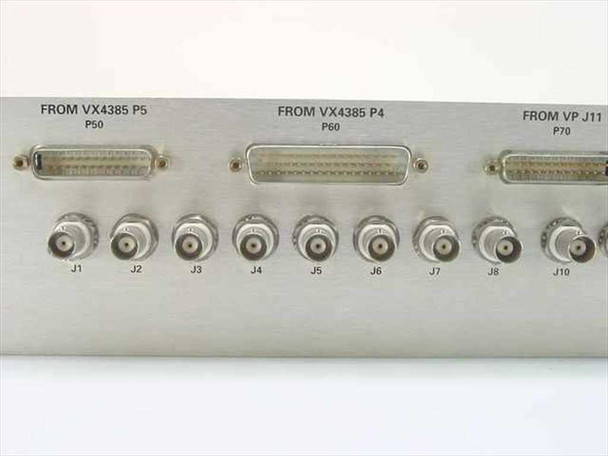

  • Tektronix IGS-1614-60 front panel close-up – left section showing D-Sub 50-pin connectors P50 and P60 labeled FROM VX4385 P5 and P4, with BNC connectors J1 through J10

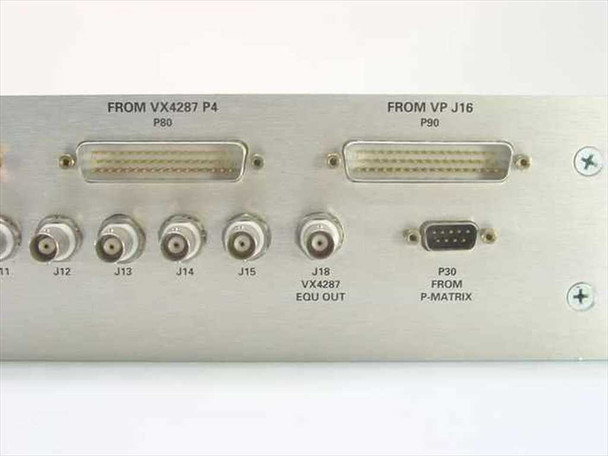

  • Tektronix IGS-1614-60 front panel close-up – right section showing D-Sub connectors P80 and P90 labeled FROM VX4287 P4 and FROM VP J16, BNC connectors J11–J15, J18 VX4287 EQU OUT, and DB9 P30 FROM P-MATRIX

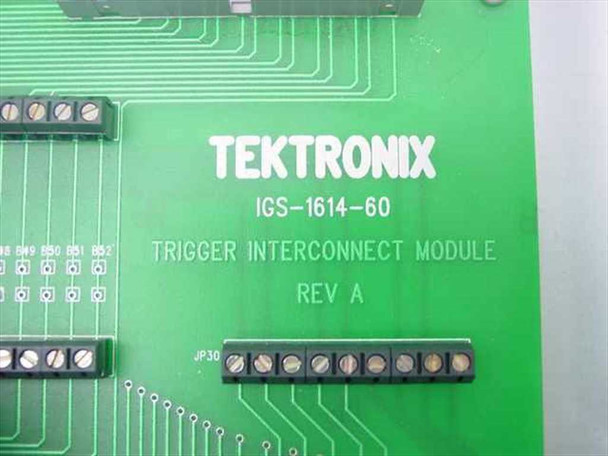

  • Tektronix IGS-1614-60 internal PCB label showing TEKTRONIX IGS-1614-60 TRIGGER INTERCONNECT MODULE REV A silkscreen on green circuit board with JP30 jumper block
$150.00
Was: $300.00
Current Stock: 2

Sold Out

Description

Tektronix IGS-1614-60 Trigger Interconnect Module Rev A Rackmount VX4385 VX4287

A 2U rackmount trigger interconnect module designed for VXI instrument systems. Routes and distributes trigger signals across compatible Tektronix VXI modules and test equipment.

Specifications & What's Included

  • Model: IGS-1614-60 Rev A
  • Form Factor: 2U rackmount enclosure
  • Connectors: 15+ BNC (J1–J18), DB50 D-Sub, DB9 D-Sub
  • Bus Type: VXIbus
  • Compatible with Tektronix VX4385, VX4287, VP VXI modules, and P-Matrix systems
  • Interfaces: BNC, VXIbus, D-Sub

Applications

Used in VXI-based test and measurement systems for signal routing and trigger distribution. Connects to Tektronix mainframes and modular instruments for synchronization and control. Supports complex test setups requiring coordinated trigger signals across multiple instrument modules and external equipment.

Condition: Used
This Tektronix IGS-1614-60 Trigger Interconnect Module has been inspected and is in good condition. The rackmount enclosure and front panel are clean with normal light wear consistent with lab use. All BNC connectors and D-Sub ports appear intact with no visible damage. The internal PCB label is clearly legible. No accessories beyond the module in its enclosure were observed. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tektronix
Model:
IGS-1614-60
MPN:
IGS-1614-60
Type:
Trigger Interconnect Module
SKU:
24420
Revision:
Rev A
Form Factor:
Rackmount
Rack Units:
2U
Compatible With 1:
Tektronix VX4385 (P5, P4 connectors)
Compatible With 2:
Tektronix VX4287 (P4 connector, EQU OUT)
Compatible With 3:
Tektronix VP VXI module (J11, J16)
Compatible With 4:
P-Matrix (P30)
Interface Type:
BNC, D-Sub (DB50, DB9), VXIbus
Connector Types:
BNC (J1–J18), D-Sub 50-pin, DB9
Number of BNC Connectors:
15+ BNC (J1–J18 series, front panel)
Bus Type:
VXIbus
Application:
VXI trigger signal routing and interconnect
Condition:
Used – Inspected
Seller Notes:
Module in rackmount enclosure; no additional accessories observed.
Country/Region of Manufacture:
United States
Condition Notes:
Tektronix IGS-1614-60 Trigger Interconnect Module, inspected and in good condition. Rackmount enclosure, all front-panel BNC and D-Sub connectors intact. No accessories observed. Contact us with questions.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
View AllClose
