Tektronix 7A26 070-1484-01 Dual Trace Amplifier Instruction Manual 1972

Tektronix 7A26 070-1484-01 Dual Trace Amplifier Instruction Manual 1972

This is the original printed Instruction Manual for the Tektronix 7A26 Dual Trace Amplifier plug-in, publication number 070-1484-01. First printed in October 1972 and revised in November 1984, this manual covers operation, theory, and maintenance for the 7A26 plug-in unit. It is spiral-bound in Tektronix's standard teal format from that era.

Specifications & What's Included

• Manufacturer: Tektronix, Inc. — Beaverton, Oregon
• Instrument covered: 7A26 Dual Trace Amplifier plug-in

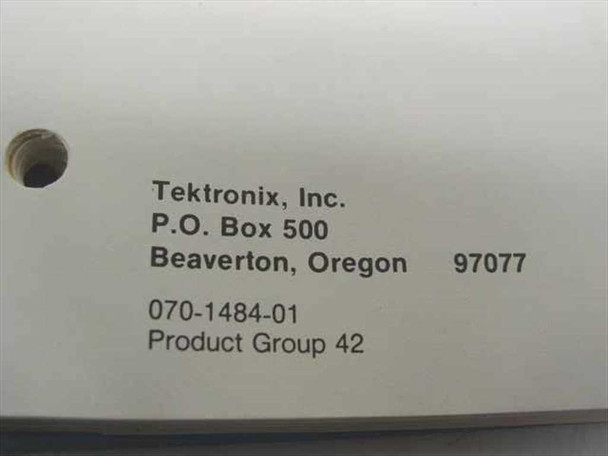

• Publication number: 070-1484-01
• Product Group: 42

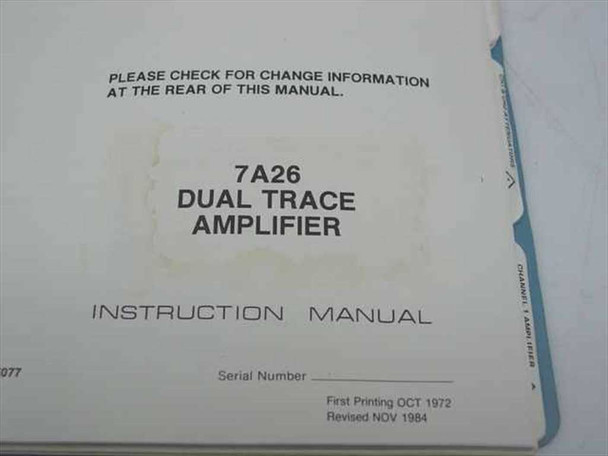

• First printing: October 1972
• Revision date: November 1984
• Format: Original printed manual, spiral bound
• Language: English
• Includes: front-panel diagrams, circuit theory, calibration procedures, parts lists, and schematic diagrams
• Compatible with: Tektronix 7000-series oscilloscope mainframes (e.g. 7603, 7704, 7904 and others that accept 7A-series plug-ins)

Applications

The Tektronix 7A26 is a dual-trace vertical amplifier plug-in designed for use in the Tektronix 7000-series modular oscilloscope mainframes, a platform Tektronix introduced in the late 1960s that became a standard in electronic test labs through the 1970s and 1980s. The 7A26 provides two independent vertical input channels with selectable coupling, sensitivity, and display modes, making it one of the most widely used plug-ins in the 7000 family. This instruction manual is the primary reference for technicians and engineers who operate, calibrate, or service the 7A26 — covering front-panel controls, internal adjustments, and full schematic diagrams. Today it remains sought after by labs and collectors maintaining vintage Tektronix 7000-series equipment, as original Tektronix documentation is essential for accurate calibration and repair work on these instruments.
