Tektronix 7A24 Dual Trace Amplifier Instruction Manual SN B103000-UP Rev A 1980
This is the original printed Instruction Manual for the Tektronix 7A24 Dual Trace Amplifier plug-in, covering serial numbers B103000 and up. This is the Rev A edition, dated September 1980. The 7A24 is a two-channel vertical amplifier plug-in designed for use in Tektronix 7000-series mainframe oscilloscopes, providing dual-trace capability for comparative waveform measurements.
Specifications & What's Included
- Manufacturer: Tektronix
- Instrument Model: 7A24 Dual Trace Amplifier
- Document Type: Instruction Manual
- Revision: Rev A
- Publication Date: September 1980
- Serial Number Coverage: SN B103000 and up
- Language: English
- Format: Original printed hard copy, spiral-bound

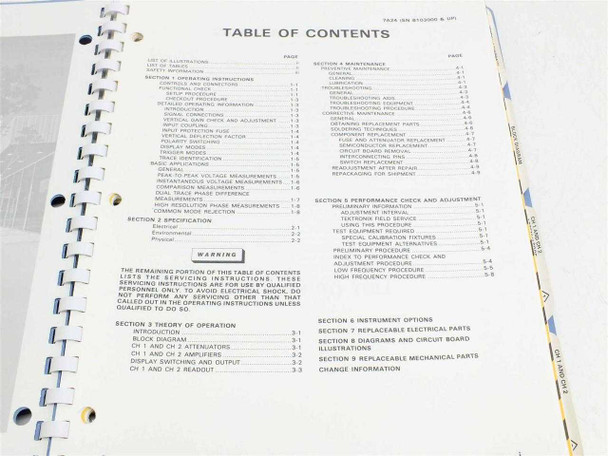

- Sections included: Safety Information, Operating Instructions, Theory of Operation, Specifications, Maintenance, Performance Check and Adjustment, Instrument Options, Replaceable Electrical Parts, Diagrams and Circuit Boards, Replaceable Mechanical Parts, Change Information
- Includes full fold-out schematic diagrams: CH1 & CH2 Attenuators, CH1 & CH2 Readout circuits

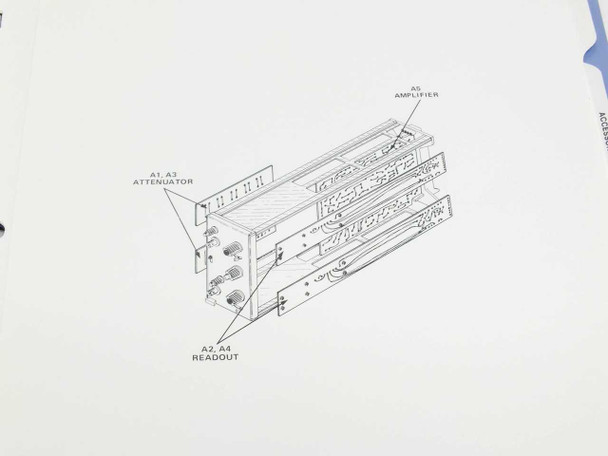

- Includes exploded assembly illustrations for attenuator, readout, and amplifier board assemblies
- Compatible with: Tektronix 7000-series oscilloscope mainframes
Applications
The Tektronix 7A24 is a plug-in vertical amplifier for the Tektronix 7000-series modular oscilloscope system, a widely used platform in electronics labs, R&D facilities, and service centers from the late 1960s through the 1980s. The 7000-series architecture allowed engineers to configure their oscilloscope by swapping plug-in modules — vertical amplifiers, time bases, and special-purpose plug-ins — into a common mainframe. The 7A24 provides two independent input channels with selectable coupling, sensitivity, and display modes, making it suitable for dual-trace comparisons, phase measurements, and general-purpose analog waveform analysis. This instruction manual covers both operation and servicing, making it useful for technicians maintaining, calibrating, or repairing a 7A24 plug-in today. Tektronix 7000-series equipment remains in use in vintage electronics restoration, legacy industrial maintenance, and among oscilloscope collectors, and original printed manuals with complete schematic packages are actively sought by that community.
This Tektronix 7A24 Dual Trace Amplifier Instruction Manual has been inspected and is in good used condition. The cover shows light shelf wear consistent with age but is intact and secure. All pages are present and legible, including the fold-out schematic diagrams for the CH1/CH2 attenuators and readout circuits. The spiral binding is complete and holds the pages firmly. This is the Rev A edition dated September 1980, covering serial numbers B103000 and up. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Tektronix |
Model: |
7A24 |
MPN: |
7A24 |
Type: |
Instruction Manual |
SKU: |
37632 |
Document Type: |
Instruction Manual |
For Make/Model: |
Tektronix 7A24 Dual Trace Amplifier |
Serial Number Range: |
SN B103000-UP |
Revision: |
Rev A |
Publication Date: |
September 1980 |
Language: |
English |
Format: |
Print / Hard Copy |
Compatible With: |
Tektronix 7000 Series Oscilloscopes |
Condition: |
Used – Inspected |
Seller Notes: |
Original printed manual; all pages present and legible |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Tektronix 7A24 Dual Trace Amplifier Instruction Manual in good used condition. Inspected; all pages present and legible including fold-out schematics. Spiral binding intact. Rev A, Sep 1980, SN B103000-UP. |
