Description
Taber Teledyne 176-SA Electrical Pressure Transmitter 0-1000 PSI 350 Ohm

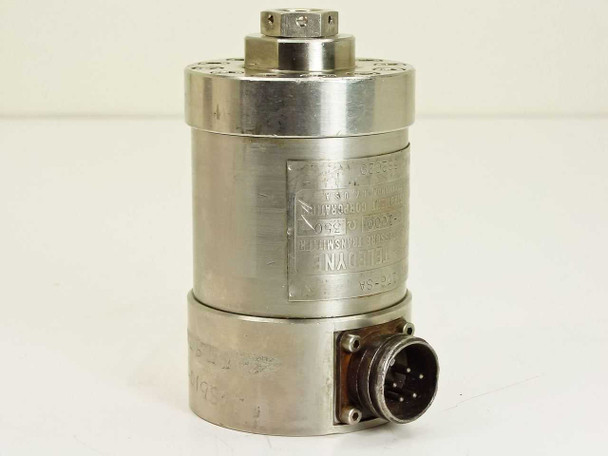

Electrical pressure transmitter with 0–1000 PSI range and 350-ohm bridge resistance output. Stainless steel and aluminum alloy construction with military-style multi-pin circular connector and threaded pressure port.
Specifications & What's Included
- Model: 176-SA
- Pressure Range: 0–1000 PSI
- Bridge Resistance: 350 Ohms
- Connector: Multi-pin circular military-style
- Body Material: Stainless steel / aluminum alloy
- Service Medium: Liquid Fluorine

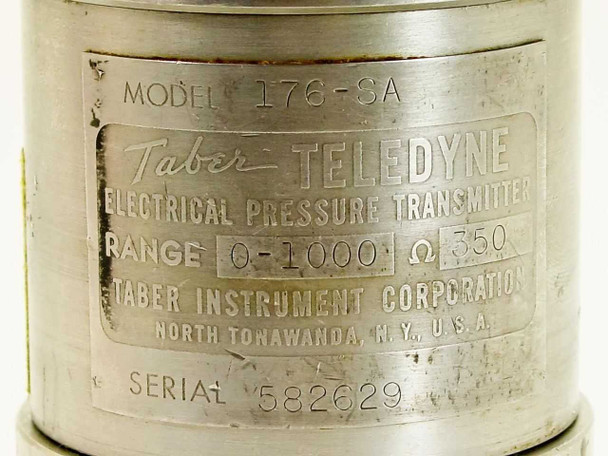

- Manufacturer: Taber Instrument Corporation, North Tonawanda, NY
- Unit only, no additional components included
Applications
The 176-SA was designed for aerospace and rocket motor applications requiring high-pressure measurement in cryogenic liquid environments. This transmitter type was used to monitor chamber pressure in liquid propellant rocket motors and similar high-performance systems. The liquid fluorine service rating indicates use in specialized propulsion environments. Military and aerospace contractors historically used Taber transmitters of this configuration for flight-qualified pressure monitoring systems.

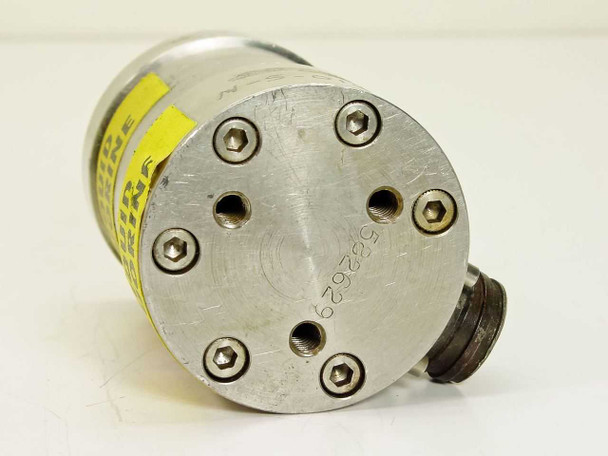

This Taber Teledyne 176-SA Electrical Pressure Transmitter has been inspected and appears to be in good used condition. It was pulled from an active working environment where it was in service. The stainless steel and aluminum body shows typical wear consistent with aerospace or industrial use. The multi-pin circular connector on the side shows some oxidation and surface discoloration as visible in the photos. Two yellow 'LIQUID FLUORINE' labels remain affixed to the body, indicating prior service with that medium — buyers should factor this into their application assessment. The threaded pressure port on the bottom appears intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Taber Instrument Corporation |
Model: |
176-SA |
MPN: |
176-SA |
Type: |
Electrical Pressure Transmitter |
SKU: |
39252 |
Pressure Range: |
0–1000 PSI |
Bridge Resistance: |
350 Ohms |
Connector Type: |
Multi-pin circular military-style connector |
Body Material: |
Stainless steel / aluminum alloy |
Manufacturer: |
Taber Instrument Corporation, North Tonawanda, NY, USA |
Associated Brand: |
Teledyne |
Application: |
Aerospace, rocket motor chamber pressure measurement |
Service Medium: |
Liquid Fluorine (per unit label) |
Country/Region of Manufacture: |
United States |
Form Factor: |
Cylindrical body with threaded pressure port |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; pulled from aerospace rocket motor service. |
Condition Notes: |
Taber Teledyne 176-SA Pressure Transmitter pulled from active service, inspected and in good used condition. Body shows normal wear; connector has surface oxidation. LIQUID FLUORINE service labels present. Please contact us with questions. |
