Systems Chemistry Inc. Chemical Tank Delivery System Enclosure 24x23x57

(No reviews yet) Write a Review
SKU:
42689
MPN:
24 x 23 x 57
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
115.00 LBS
Shipping:
Calculated at Checkout

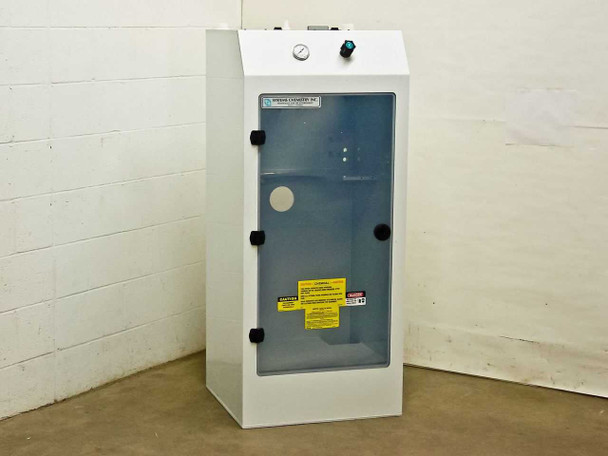

  • Systems Chemistry Inc. Chemical Tank Delivery System Enclosure – front three-quarter view showing clear door and top-mounted pressure gauge
  • Systems Chemistry Inc. Chemical Tank Delivery Enclosure – rear and left side view showing circular pass-through port
  • Span Instruments 0–30 psi pressure gauge with USE NO OIL marking mounted on enclosure top

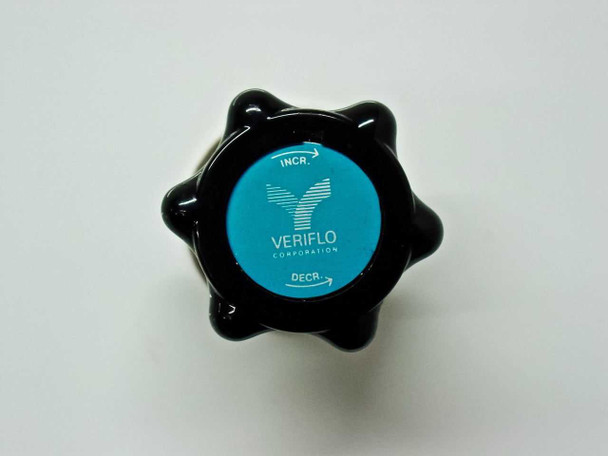

  • Veriflo Corporation pressure regulator adjustment knob with INCR/DECR markings
  • Interior view of Systems Chemistry enclosure with door open showing mounting panel and circular pass-through hole
  • Interior top section of Systems Chemistry enclosure showing five bottle cradle bracket mounts
  • Interior lower shelf of Systems Chemistry enclosure with three-compartment storage tray
  • Systems Chemistry Inc. label on enclosure door reading 'Technology for the Environment – Milpitas, California'
  • Top of Systems Chemistry enclosure with lid open showing chemical warning labels, pressure gauge, and Veriflo regulator knob
  • Top interior compartment of Systems Chemistry enclosure showing tray with vertical dividers and fittings ports
  • Systems Chemistry Inc. Chemical Tank Delivery System Enclosure 24 x 23 x 57
  • Systems Chemistry Inc. Chemical Tank Delivery System Enclosure 24 x 23 x 57
  • Systems Chemistry Inc. Chemical Tank Delivery System Enclosure 24 x 23 x 57
$850.00
Was: $1,700.00
Current Stock: 1

Sold Out

Description

Systems Chemistry Inc. Chemical Tank Delivery System Enclosure 24x23x57

Freestanding floor cabinet for chemical tank delivery systems used in cleanroom and semiconductor manufacturing environments. Houses pressurized chemical tanks with integrated regulation and monitoring.

Specifications & What's Included

  • Dimensions: 24 x 23 x 57 inches
  • Pressure gauge: Span Instruments 0-30 psi (use no oil)
  • Regulator: Veriflo Corporation pressure regulator knob
  • Front door: Hinged clear polycarbonate/acrylic
  • Interior: Bottle cradle mounts, lower shelf with 3 compartments
  • Rear circular pass-through port on interior panel
  • Painted steel enclosure body with chemical safety labels
  • Made in United States

Applications

Designed for cleanroom and semiconductor chemical delivery systems where controlled dispensing and safe storage of chemical tanks are required. The integrated pressure regulation and monitoring setup supports precision chemical application in manufacturing processes requiring contamination control.

Condition: Used
This Systems Chemistry Inc. Chemical Tank Delivery System Enclosure has been inspected and is in good used condition. The painted steel cabinet body is clean with no significant damage. The clear front door, interior cradle mounts, lower shelf with three compartments, and circular pass-through ports all appear intact. The top-mounted Span Instruments 0–30 psi pressure gauge and Veriflo Corporation regulator knob are present. Chemical warning/caution labels are still affixed. Normal light wear consistent with prior lab or cleanroom use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Systems Chemistry Inc.
Model:
Chemical Tank Delivery System Enclosure
Type:
Chemical Tank Delivery System Enclosure
SKU:
42689
Dimensions (W x D x H):
24 x 23 x 57 inches
Pressure Gauge:
Span Instruments, 0-30 psi, USE NO OIL
Regulator:
Veriflo Corporation pressure regulator knob
Door Type:
Hinged clear polycarbonate/acrylic front door
Interior Features:
Bottle cradle mounts, lower shelf with 3 compartments
Pass-Through:
Circular port on rear and interior panel
Application:
Cleanroom / semiconductor chemical tank delivery
Material:
Painted steel enclosure body
Safety Labels:
Chemical danger/caution labels present
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Includes pressure gauge and Veriflo regulator knob
Country/Region of Manufacture:
United States
Form Factor:
Freestanding Floor Cabinet
Condition Notes:
Systems Chemistry Inc. Chemical Tank Delivery System Enclosure, 24x23x57 in. Inspected and in good used condition. Cabinet, door, cradle mounts, shelf, pressure gauge, and Veriflo regulator knob all present and intact.
