SV Probe C48-2 Rev A 888008 Motherboard Test Fixture DAS-ELG SV#R7626

(No reviews yet) Write a Review
SKU:
30846
MPN:
C48-2 Rev A 888008
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • SV Probe C48-2 Rev A 888008 Motherboard Test Fixture – front face showing gold edge connector fingers and circular probe contact array on red PCB

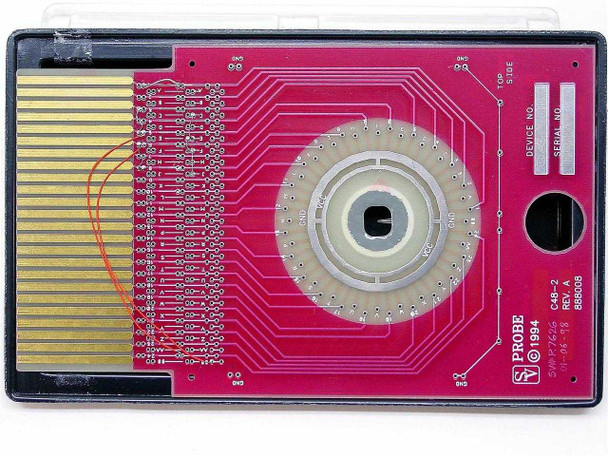

  • SV Probe C48-2 Rev A 888008 Motherboard Test Fixture – reverse side view showing circular probe array, Device No. and Serial No. label fields, and SV Probe markings
  • SV Probe C48-2 Rev A 888008 close-up of PCB silkscreen showing SV Probe logo, copyright 1994, SV#R7626, date 01-06-98, model C48-2 Rev A, part number 888008
  • SV Probe C48-2 DAS-ELG Device No. label and blank Serial No. field on red PCB – Top Side orientation marking visible

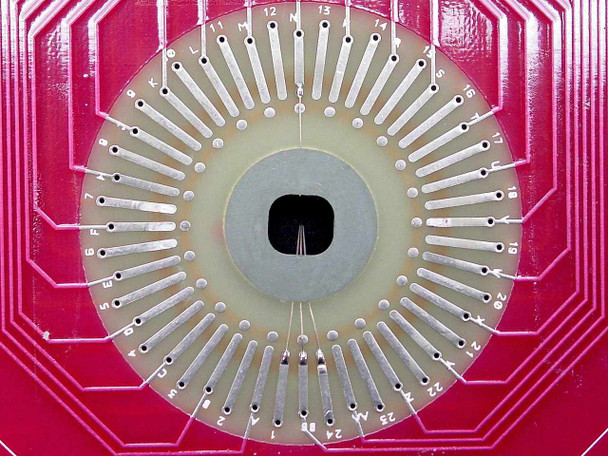

  • SV Probe C48-2 888008 close-up of circular probe contact array with numbered and lettered contact positions around radial spokes
$110.00
Was: $225.00
Current Stock: 1

Sold Out

Description

SV Probe C48-2 Rev A 888008 Motherboard Test Fixture DAS-ELG SV#R7626

This is a PCB-mounted test fixture designed for motherboard and IC device testing. The C48-2 probe card interfaces with automated test equipment to validate board-level functionality during manufacturing and service operations.

Specifications & What's Included

  • Brand: SV Probe
  • Model: C48-2 Rev A
  • MPN: 888008 | Device Number: DAS-ELG | SV#R7626
  • Type: Motherboard Test Fixture PCB
  • Form Factor: PCB Card with edge connectors
  • Manufactured: United States, 1994
  • Includes: Test fixture PCB as shown

Applications

This fixture was used in ATE (Automated Test Equipment) systems for PCB and motherboard validation. Probe cards of this type connect to test handlers and load boards to execute functional diagnostics on assembled circuit boards, checking signal integrity, continuity, and component operation across the contact array.

Condition: Used
This SV Probe C48-2 Rev A 888008 Motherboard Test Fixture has been inspected and is in good condition. The red PCB is clean with no visible damage to the board itself. The gold edge connector fingers along the left side show some light oxidation consistent with normal age and use, and the circular probe contact array appears intact with no broken or missing contacts visible in the photos. The Device No. label reads DAS-ELG. Please view our photo set and contact us if you have any questions.
