Description

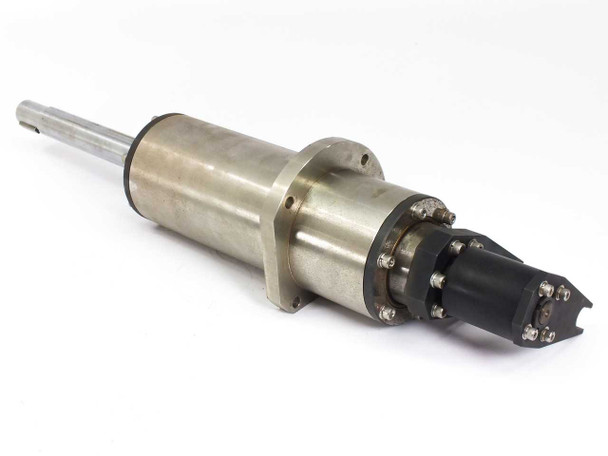

Stainless Steel Rotation Cylinder 330mm w/ 630mm Positioning Arm 105mm Body

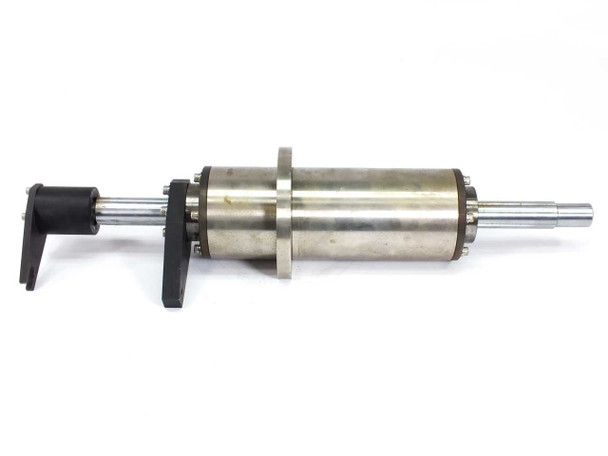

This is a stainless steel rotation cylinder with an integrated 630mm positioning arm, used for controlled rotational and positioning applications in industrial and telecom equipment. The unit features a 330mm cylinder body with a 105mm diameter and a 630mm arm for extended reach positioning.
Specifications & What's Included
- Cylinder Length: 330 mm; Body Diameter: 105 mm
- Positioning Arm Length: 630 mm; Arm Shaft Diameter: 32 mm
- Mounting Ring Diameter: 130 mm (15 mm thick); 4 x 9 mm mounting holes
- Mounting End Diameter: 28 mm; Positioning Hand Internal Radius: 8.5 mm, Depth: 23 mm
- Material: Stainless Steel; Unbranded
- Includes cylinder body, mounting flange, and 630mm positioning arm
Applications
Rotation cylinders with positioning arms are used in telecom infrastructure, industrial automation, and mechanical positioning systems. These units provide controlled rotational movement for antenna adjustment, cable routing, equipment alignment, and load positioning. The stainless steel construction suits outdoor or corrosive environments.

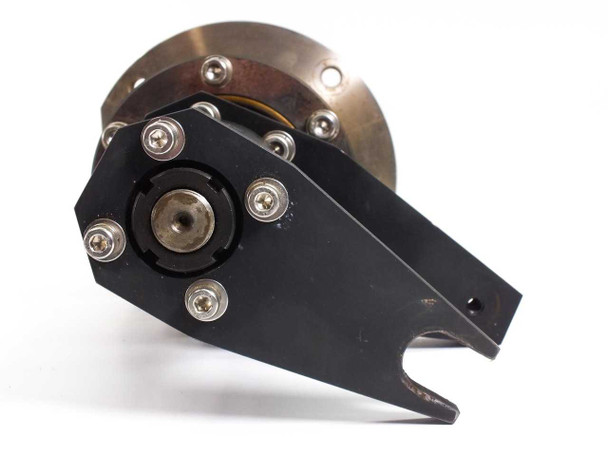

This Stainless Steel Rotation Cylinder with 630mm Positioning Arm has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The stainless steel body shows light surface wear and minor scuffing consistent with prior use, and the black positioning arm and mounting hardware appear intact and undamaged. The shaft is straight and shows no visible bending or corrosion. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Unbranded |
Model: |
Rotation Cylinder 330mm |
Type: |
Rotation Cylinder with Positioning Arm |
SKU: |
48706 |
Condition: |
Used – Pulled from Working Environment |
Material: |
Stainless Steel |
Cylinder Length: |
330 mm |
Cylinder Body Diameter: |
105 mm |
Mounting Ring Diameter: |
130 mm |
Mounting Ring Thickness: |
15 mm |
Mounting Holes: |
4 x 9 mm diameter |
Positioning Arm Length: |
630 mm |
Arm Shaft Diameter: |
32 mm |
Mounting End Diameter: |
28 mm |
Mounting End Length: |
40 mm |
Positioning Hand Internal Radius: |
8.5 mm |
Positioning Hand Depth: |
23 mm |
Seller Notes: |
Includes cylinder body, mounting flange, and 630mm positioning arm as shown. |
Condition Notes: |
This stainless steel rotation cylinder with 630mm positioning arm has been inspected and is in good used condition. Pulled from a working environment. Light surface wear on the body; arm, flange, and shaft appear intact. |
