Description
Stainless Steel Rotation Cylinder 250mm w/ 610mm Positioning Arm 72mm Body
Rotary positioning cylinder assembly with integrated 610mm arm and fork-end attachment. Used for controlled rotational indexing and positioning in industrial automation applications.
Specifications & What's Included
- Cylinder body: 250mm length, 72mm diameter
- Mounting flange: 100mm diameter, 15mm thickness, four 9mm holes
- Positioning arm: 610mm length, 20mm shaft diameter
- Fork-end attachment with 11mm internal radius
- Material: Stainless steel
- Type: Inline/flange mount
Applications
Rotary cylinders are used in manufacturing and telecom equipment for precise angular positioning and indexing tasks. These assemblies typically integrate into automated conveyor systems, packaging machinery, and rotary valve controls. The stainless steel construction provides corrosion resistance for food processing, pharmaceutical, and outdoor installations.
Condition: Used

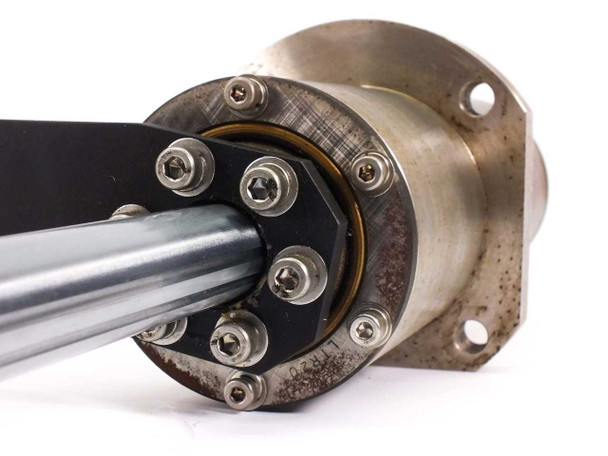

This stainless steel rotation cylinder with 610mm positioning arm has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The stainless steel body and shaft show some surface wear and minor oxidation consistent with industrial use, visible on the flange face and end cap area. The fork-end attachment and mounting hardware appear intact. Please view our photo set and contact us if you have any questions.
This stainless steel rotation cylinder with 610mm positioning arm has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The stainless steel body and shaft show some surface wear and minor oxidation consistent with industrial use, visible on the flange face and end cap area. The fork-end attachment and mounting hardware appear intact. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Unbranded |
Model: |
Rotation Cylinder 250mm |
Type: |
Rotary Positioning Cylinder Assembly |
SKU: |
48701 |
Condition: |
Used – Pulled from Working Environment |
Material: |
Stainless Steel |
Cylinder Body Length: |
250 mm |
Cylinder Body Diameter: |
72 mm |
Mounting Flange Diameter: |
100 mm |
Mounting Flange Thickness: |
15 mm |
Mounting Hole Diameter: |
9 mm (x4) |
Positioning Arm Length: |
610 mm |
Arm Shaft Diameter: |
20 mm |
Shaft Mounting End Diameter: |
18 mm |
Shaft Mounting End Length: |
30 mm |
Fork Attachment Internal Radius: |
11 mm |
Fork Attachment Depth: |
30 mm |
Overall Cylinder Dimensions: |
250 mm L x 100 mm x 100 mm |
Seller Notes: |
Includes cylinder body, positioning arm with fork-end attachment. No additional accessories included. |
Application: |
Industrial Automation, Rotary Positioning, Indexing |
Form Factor: |
Inline / Flange Mount |
Condition Notes: |
Stainless steel rotation cylinder 250mm with 610mm positioning arm. Inspected, good used condition. Pulled from a working environment. Surface wear and minor oxidation on flange and end cap. Fork-end attachment and hardware intact. |
