Specialty Microwave 573874-1 LNA Control Panel SATCOM 120V Dual PSU Rack Mount

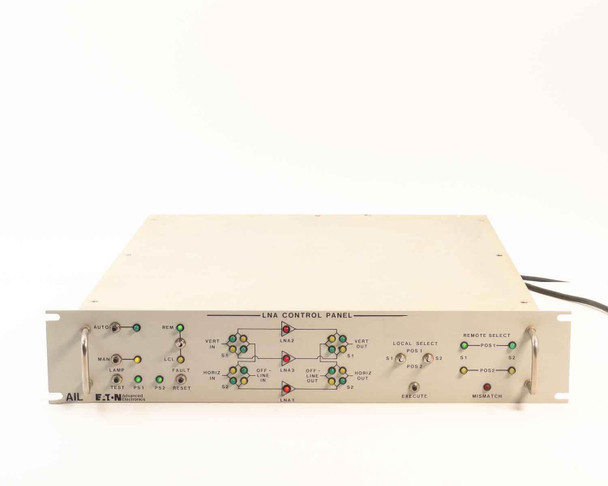

The Specialty Microwave 573874-1 is a rack-mount Low Noise Amplifier (LNA) control panel designed for SATCOM ground station systems. Built and co-labeled by AIL / Eaton Advanced Electronics, this unit provides centralized control and status monitoring for a three-LNA switching matrix, supporting both local and remote operation modes from a single front panel.
Specifications & What's Included
- Manufacturer: Specialty Microwave Corporation (AIL / Eaton Advanced Electronics)
- Part Number: 573874-1
- Type: LNA Control Panel — SATCOM ground station
- Form Factor: Rack Mount (approximately 2U)
- Power: 120V AC, dual redundant power supply (PS1 and PS2)
- PS1 / PS2 fusing: 7.5A each (rotary fuse holders, rear panel)
- LNA channel fusing: LNA1, LNA2, LNA3 — 0.25A each (rear panel)
- LNA switching matrix: three LNAs (LNA1, LNA2, LNA3) with S1/S2 redundancy switches
- Signal paths: Vertical In, Horizontal In, Vertical Out, Horizontal Out, Offline In, Offline Out
- Control modes: AUTO / MAN (front panel toggle); Local Select and Remote Select (POS1/POS2, S1/S2)

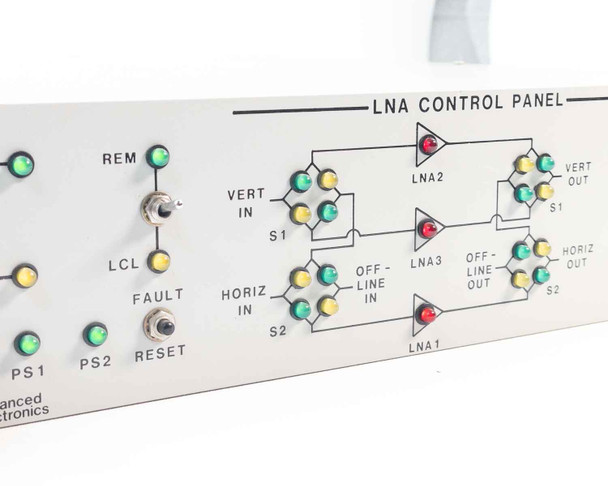

- Front panel indicators: multi-color LEDs for AUTO, MAN, REM, LCL, FAULT, PS1, PS2, and all switching matrix nodes
- Front panel controls: LAMP TEST button, FAULT RESET button, EXECUTE button, MISMATCH LED indicator
- Rear connectors: J1 — large circular mil-spec connector (blue insert); J2 — DB-25; J5 — DB-9; plus coaxial ports and PS1/PS2 ON/OFF toggles
- Includes: two AC power cords (attached)
Applications
LNA control panels of this type are central to SATCOM ground station antenna systems, where multiple low noise amplifiers are deployed in redundant configurations to maintain continuous satellite link availability. The controller manages which LNA is active on the signal path — switching between primary and backup amplifiers either automatically or on operator command — while providing real-time status via the front-panel LED matrix. Local/Remote capability allows the panel to be operated directly by a technician at the rack or driven from a remote monitoring and control system. This type of equipment is used in fixed and transportable satellite earth stations for commercial, government, and defense communications, as well as broadcast uplink facilities. The dual power supply design and redundant LNA switching architecture reflect the high-availability requirements typical of professional SATCOM infrastructure.
This Specialty Microwave 573874-1 LNA Control Panel was pulled from a working SATCOM environment and has been inspected at our facility. Both power cords were connected and the unit was powered on. All front-panel LEDs illuminate correctly when the lamp test button is pressed. The front and rear switches engage their respective mechanisms and respond as expected. No testing of the LNA switching outputs could be performed. The chassis shows light surface wear consistent with rack service use; overall cosmetic condition is good. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Specialty Microwave |
Model: |
573874-1 |
MPN: |
573874-1 |
Type: |
LNA Control Panel |
SKU: |
53107 |
Seller Notes: |
Includes two power cords. Unit only — no additional accessories. |
Form Factor: |
Rack Mount |
Power Requirements: |
120V AC, Dual Power Supply |
Number of Power Supplies: |
2 (PS1 and PS2, each 7.5A fused) |
Number of LNA Channels: |
3 (LNA1, LNA2, LNA3 — each 0.25A fused) |
Control Modes: |
Local and Remote |
Front Panel Indicators: |
Multi-color LED matrix; Auto, Man, REM, LCL, Fault, PS1, PS2 |
Front Panel Controls: |
Lamp Test, Fault Reset, Local Select (POS1/POS2), Execute, Mismatch |
Signal Path: |
Vertical In, Horizontal In, Vertical Out, Horizontal Out, Offline In/Out |
Switching Matrix: |
S1 / S2 redundancy switching with LNA1, LNA2, LNA3 |
Rear Connectors: |
J1 circular mil-spec connector, J2 DB-25, J5 DB-9, coax ports |
Rear Fusing: |
PS1 7.5A, PS2 7.5A, LNA1/2/3 each 0.25A |
Application: |
SATCOM ground station LNA redundancy and switching control |
Compatible With: |
SATCOM ground station systems requiring LNA switching control |
Co-Branding / OEM: |
AIL / Eaton Advanced Electronics (labeled on front panel) |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected and Tested |
Condition Notes: |
Specialty Microwave 573874-1 LNA Control Panel pulled from a working SATCOM environment. Powered on — all LEDs illuminate on lamp test; front and rear switches engage. Output not tested. Good cosmetic condition. Includes two power cords. |
