Cisco Systems

Cisco 7204VXR Router Chassis w/ NPE Fast Ethernet I/O Controller Dual PSU Rack

(No reviews yet) Write a Review
SKU:
37156
MPN:
7204VXR
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
50.00 LBS
Shipping:
Calculated at Checkout

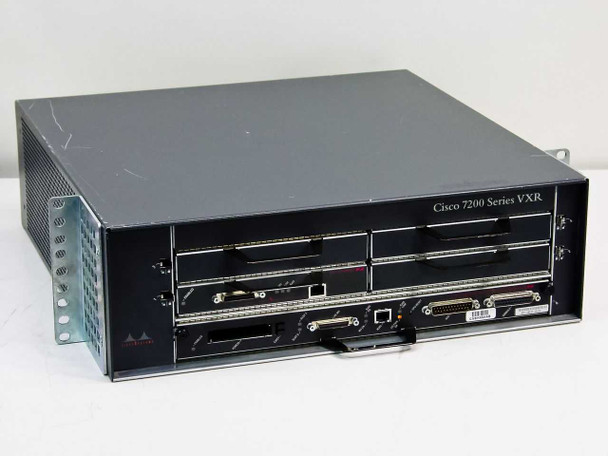

  • Cisco 7200 Series VXR 7204VXR rackmount router chassis front-left angle view showing module bays and rack ears
  • Cisco 7204VXR front panel close-up showing Fast Ethernet I/O controller with DB-25 connector and RJ-45 port with LED indicators
  • Cisco 7200 Series VXR front panel showing Fast Ethernet Input/Output Controller label, AUX and Console DB-25 ports, and CPU Reset button
  • Cisco 7204VXR rear panel showing dual Cisco 34-0687-01 power supply modules with IEC AC inlets and on/off switches
  • Cisco 7204VXR power supply close-up showing Cisco Systems label, IEC AC inlet, and power switch with 100–240V 5A 50/60Hz rating label
  • Cisco 7204VXR power supply label close-up showing Cisco P/N 34-0687-01 Rev G0, 100–240V 5A 50/60Hz, and Network Processing Engine 225 label
  • Cisco 7204VXR Fast Ethernet I/O Controller module face plate showing DB-25 connector, RJ-45 Fast Ethernet port, and activity LED indicators
  • Cisco 7204VXR Fast Ethernet I/O Controller PCB removed from chassis showing Pulse transformer, Texas Instruments ICs, and board components
  • Cisco 7204VXR Network Processing Engine module PCB showing SDRAM DIMM slot, processor, and sub-board with Xilinx FPGA
  • Cisco 7204VXR Network Processing Engine module face plate showing PCMCIA slot, eject button, Fast Ethernet RJ-45 port, and DB-25 console connector
  • Cisco Systems 7204VXR Network Processing Engine w/ Dual Power Supplies 19" Rack
  • Cisco Systems 7204VXR Network Processing Engine w/ Dual Power Supplies 19" Rack
  • Cisco Systems 7204VXR Network Processing Engine w/ Dual Power Supplies 19" Rack
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Cisco 7204VXR Router Chassis w/ NPE Fast Ethernet I/O Controller Dual PSU Rack

The Cisco 7204VXR is a 4-slot, 3U rackmount chassis from the Cisco 7200 Series VXR platform — a high-performance modular router designed for enterprise WAN aggregation, service provider edge routing, and large-scale campus network core applications. This listing includes the 7204VXR chassis with a Network Processing Engine (NPE) module installed, a Fast Ethernet Input/Output Controller card, and two Cisco 34-0687-01 redundant AC power supplies — a complete, ready-to-configure routing platform.

Specifications & What's Included

  • Model: Cisco 7204VXR (Cisco 7200 Series VXR platform)
  • Form factor: 19-inch rackmount, 3U
  • Module slots: 4 interface card slots
  • Network Processing Engine (NPE) module installed
  • Fast Ethernet Input/Output Controller (I/O Controller) installed
  • I/O Controller ports: Fast Ethernet RJ-45, DB-25 Console, DB-25 AUX
  • I/O Controller LEDs: ACT, LNK, FLG indicators
  • NPE module: PCMCIA slot (with eject button), Fast Ethernet RJ-45, DB-25 connector
  • Power supplies: 2x Cisco P/N 34-0687-01 Rev G0 (dual redundant)
  • Power supply rating: 100–240V AC, 5A, 50/60Hz (universal input)
  • Power supply connectors: IEC C14 AC inlet, rocker on/off switch per PSU
  • Fast Ethernet I/O Controller PCB: Pulse transformer, Texas Instruments ICs visible
  • Rack ears (mounting ears) installed
  • Platform: Cisco IOS

Applications

The Cisco 7200 Series VXR routers were a cornerstone of enterprise and service provider networks from the late 1990s through the 2000s, designed to deliver high-speed, modular WAN routing with a range of interface options. The 7204VXR variant supports four interface slots, making it well-suited for multi-protocol WAN aggregation, T1/E1/T3 connectivity, Frame Relay, ATM, and IP/MPLS edge routing. The VXR chassis introduced a more powerful Network Processing Engine architecture compared to the original 7200 series, enabling higher packet-forwarding rates required by growing broadband and enterprise traffic demands. These platforms were widely deployed by ISPs, enterprise IT departments, and government networks as core and edge routers, and remain in use today for lab environments, Cisco IOS training and certification labs (CCNP/CCIE), legacy network maintenance, and low-volume WAN aggregation where a cost-effective IOS platform is needed. The modular design allows network adapters and WAN interface cards to be swapped to support a wide variety of connectivity types.

Condition: Used
This Cisco 7204VXR Network Processing Engine router chassis has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The chassis shows normal wear consistent with prior rack deployment — light surface scuffing on the panels, but no cracks, major dents, or damage. All four module bays, the dual Cisco 34-0687-01 power supplies, the Fast Ethernet I/O Controller, and the NPE module are present and appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Cisco
Model:
7204VXR
MPN:
7204VXR
Secondary Model:
Cisco 7200 Series VXR
Type:
Rackmount Enterprise Router Chassis
SKU:
37156
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes Fast Ethernet I/O Controller, NPE module, and 2x Cisco 34-0687-01 power supplies
Country/Region of Manufacture:
United States
Form Factor:
Rack Mount
Rack Size:
19 inch, 3U
Number of Slots:
4
Power Supply MPN:
34-0687-01 Rev G0
Number of Power Supplies:
2 (Dual Redundant)
Power Requirements:
100–240V AC, 5A, 50/60Hz
I/O Controller:
Fast Ethernet Input/Output Controller
Interface Type:
Fast Ethernet, AUX, Console
Console Port:
DB-25 Serial (Console)
AUX Port:
DB-25 Serial (AUX)
Management Type:
Managed
Compatible With:
Cisco 7200 Series VXR: 7204VXR, 7206VXR
Platform:
Cisco IOS
Network Processing Engine:
NPE module installed (model not fully legible)
Condition Notes:
Cisco 7204VXR router chassis pulled from a working environment. Inspected and in good used condition with normal cosmetic wear. Includes Fast Ethernet I/O Controller, NPE module, and 2x Cisco 34-0687-01 power supplies.
