SoloPower SP3L-160 160W Flexible CIGS Solar Panel 65.1V 3.4A MC4 86.5in

SoloPower SP3L-160 160W Flexible CIGS Solar Panel 65.1V 3.4A MC4 86.5in

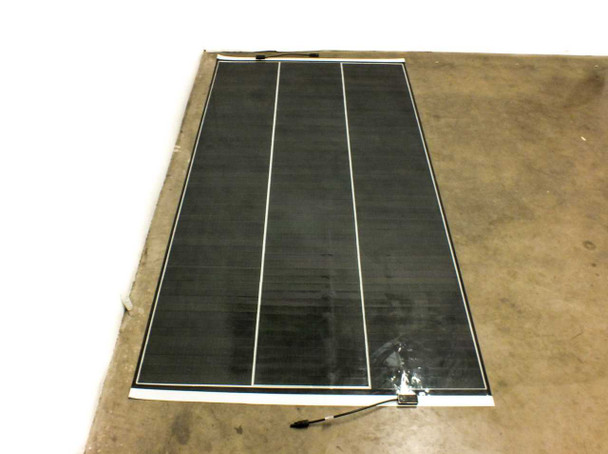

The SoloPower SP3L-160 is a large-format flexible thin-film solar panel built on CIGS (Copper Indium Gallium Selenide) cell technology. At 86.5 inches long and just 0.1 inches thick, it is substantially larger and lighter than a conventional glass-framed crystalline silicon panel of comparable wattage. The panel is constructed from 180 series-connected CIGS cells and features an ETFE (Ethylene Tetrafluoroethylene) top sheet, which provides UV resistance and long-term weatherability without the weight or rigidity of glass. MC4 connector cables are attached and ready for wiring into a charge controller or inverter system.

Specifications & What's Included

• Model: SP3L-160
• Cell Technology: CIGS (Copper Indium Gallium Selenide) thin film
• Number of Cells: 180 series-connected flexible CIGS cells
• Rated Power (Pmax): 160 W
• Voltage at Pmax (Vmp): 65.1 V
• Current at Pmax (Imp): 3.4 A
• Open Circuit Voltage (Voc): 91.8 V
• Short Circuit Current (Isc): 4.40 A
• Max Series Fuse Rating: 7 A
• Max System Voltage: 600 VDC
• Power Tolerance: +5% / -3% at STC (1000 W/m², 25°C cell temperature)
• Top Sheet: ETFE (Ethylene Tetrafluoroethylene)
• Panel Length: 86.5 in (7.2 ft / 2.197 m)
• Panel Width: 45.1 in (3.75 ft / 1.146 m)
• Panel Thickness: 0.1 in (2.0 mm)
• Connector Type: MC4
• Field Wiring: 14–10 AWG / 2.5–6 mm² insulated for 90°C minimum
• Manufactured by SoloPower, Portland, Oregon, USA

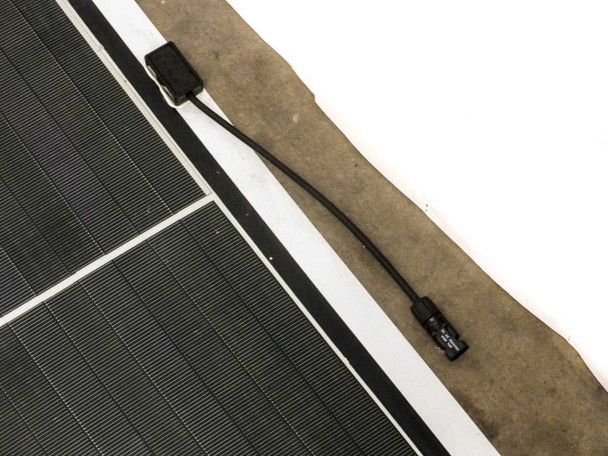

• Includes: MC4 connector cables attached to panel
• Note: Panel ships without an adhesive label — the label shown in photos is an example reference tag only

Applications

CIGS thin-film flexible solar panels like the SP3L-160 are used wherever a lightweight, low-profile photovoltaic solution is needed on a curved or non-rigid surface. SoloPower designed this panel primarily for residential and commercial rooftop applications where a non-penetrating or adhesive-bonded installation is preferred over a traditional racked glass panel system. The thin, rollable form factor also makes it well suited for marine applications — boat canopies, deck surfaces, and bimini tops — as well as RV rooftops and portable power setups. With a relatively high open-circuit voltage of 91.8V and a 600VDC max system voltage, the SP3L-160 is compatible with standard grid-tie and off-grid inverter and charge controller systems that accept high-voltage string input. CIGS technology generally performs better than crystalline silicon under diffuse or low-angle light conditions, which can be an advantage in northern latitudes or partially shaded installations. These specific units are new and unused — among the last produced at SoloPower's Portland, Oregon facility — and were originally rated for a 20-year service life.
