Solopower

Solopower SP1 60W Flexible Thin Film CIGS Solar Panel 86.5" 20V Solder Tabs

(No reviews yet) Write a Review
SKU:
48300
MPN:
SP1
Condition:
New
Availability:
Usually ships within 1-2 business days.
Weight:
7.00 LBS
Shipping:
Calculated at Checkout

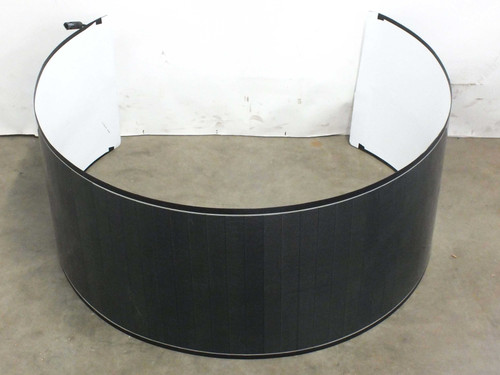

  • Solopower SP1 flexible CIGS solar panel rolled into a cylinder showing the dark photovoltaic surface and white backing

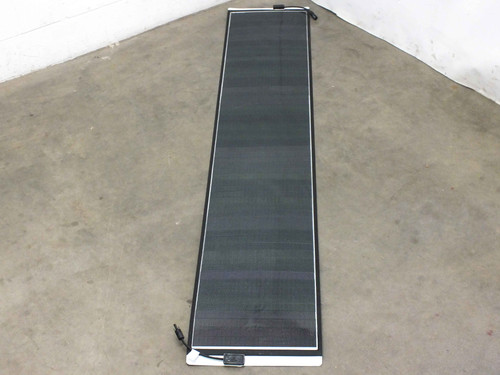

  • Solopower SP1 60W flexible thin-film CIGS solar panel laid flat on the floor showing full 86.5-inch length
  • Close-up of Solopower SP1 solder tab electrical connections at end of panel with short metal wire leads and small junction box

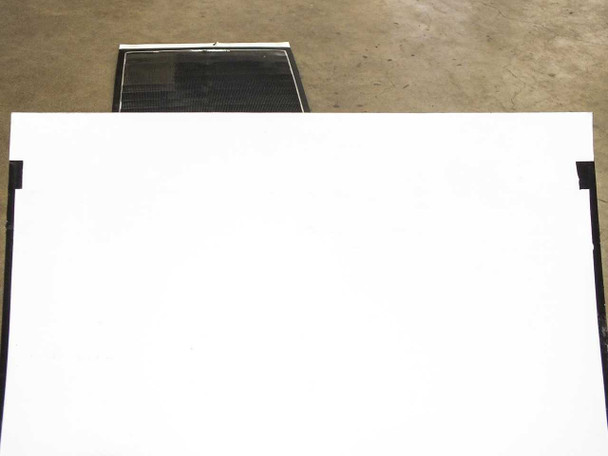

  • Solopower SP1 flexible solar panel showing white backing side with panel leaning upright against another panel in background

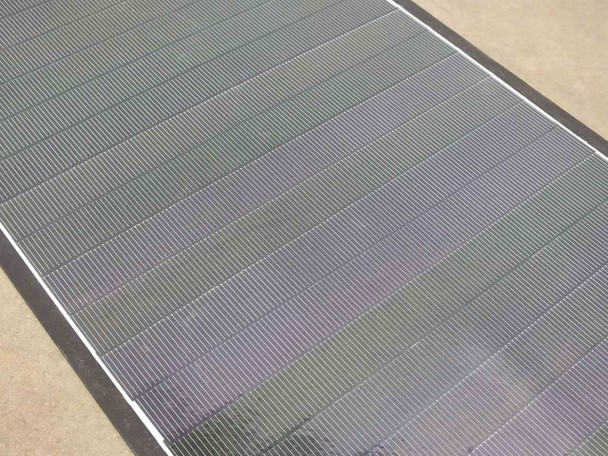

  • Close-up of Solopower SP1 CIGS thin-film solar cell surface showing parallel cell stripes with iridescent finish
$60.00
Was: $125.00
Current Stock: 28

Sold Out

Description

Solopower SP1 60W Flexible Thin Film CIGS Solar Panel 86.5" 20V Solder Tabs

The Solopower SP1 is a 60-watt flexible thin-film solar panel using CIGS (Copper Indium Gallium Selenide) photovoltaic technology. At 86.5 inches long and just 0.1 inches thick, it can be rolled for storage and transport, making it well suited for installations where rigid glass panels won't work. Electrical output is taken from metal solder tabs located at opposite ends of the panel — no junction boxes required to generate power, though MC4 cables with pre-attached junction boxes are included for easier hookup.

Specifications & What's Included

  • Model: Solopower SP1
  • Cell Technology: CIGS (Copper Indium Gallium Selenide) thin film
  • Peak Power Output: 60 Watts
  • Maximum Power Voltage (Vmp): 20 V
  • Maximum Power Current (Imp): 3.5 A
  • Open Circuit Voltage (Voc): 31 V
  • Short Circuit Current (Isc): 4 A
  • Length: 86.5 in / 2.197 m (7.2 ft)
  • Width: 15.7 in / 0.398 m (1.3 ft)
  • Thickness: 0.1 in / 2.0 mm
  • Rolled Diameter: 10–12 inches
  • Roof Load: 0.49 lbs/ft² / 2.4 kg/m²
  • Connectors: Metal solder tab connections with approx. 1"–2" wire leads on opposite ends of panel
  • Manufactured: Solopower facility, San Jose, California, USA
  • Includes: Panel + one pair of MC4 cables with pre-attached junction boxes (unattached, for user installation)

Applications

CIGS thin-film solar panels like the Solopower SP1 are used in applications where weight, flexibility, or low profile matter more than the compact footprint of conventional silicon panels. The rollable format makes them a practical choice for curved or irregular mounting surfaces — commercial rooftop membranes, RV roofs, marine applications, and portable or remote off-grid power setups where rigid panels can't be used. CIGS technology performs relatively well in diffuse or low-light conditions compared to standard crystalline silicon, which can be an advantage in overcast climates or partially shaded installations. The solder-tab output connections allow direct integration into custom wiring harnesses or charge controller setups without needing pre-made MC4 connectors, though the included MC4 cables with junction boxes give installers a plug-and-play option as well. Solopower produced these panels at their San Jose facility and this stock comes directly from their QC process.

Condition: New
This Solopower SP1 60W flexible CIGS solar panel is new and unused, manufactured at Solopower's San Jose, California facility. It comes from their QC department and has been tested to output voltage. Many panels in this lot have handwritten markings on them from the testing process — this is normal and does not affect electrical performance. Please note that we have multiple units and the panel you receive may vary slightly from the one shown in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Data Sheet:
Solopower SP1 Solar Panel Data Sheet
Brand:
Solopower
Model:
SP1
MPN:
SP1
Type:
Flexible Thin Film CIGS Solar Panel
SKU:
48300
Seller Notes:
Includes free pair of MC4 cables with pre-attached junction boxes
Country/Region of Manufacture:
United States
Peak Power Output:
60 Watts
Maximum Power Voltage (Vmp):
20 V
Maximum Power Current (Imp):
3.5 A
Open Circuit Voltage (Voc):
31 V
Short Circuit Current (Isc):
4 A
Panel Length:
86.5 in / 2.197 m (7.2 ft)
Panel Width:
15.7 in / 0.398 m (1.3 ft)
Panel Thickness:
0.1 in / 2.0 mm
Rolled Diameter:
10–12 inches
Cell Technology:
CIGS (Copper Indium Gallium Selenide)
Panel Flexibility:
Flexible / Rollable
Connector Type:
Metal solder tabs (approx. 1"–2" wire leads, opposite ends)
Roof Load:
0.49 lbs/ft² / 2.4 kg/m²
Compatible With:
MC4 cables, junction boxes, off-grid and custom solar installs
Condition:
New – Tested to Output Voltage
Form Factor:
Flexible / Rollable Sheet
Condition Notes:
New, unused Solopower SP1 60W flexible CIGS solar panel from Solopower's San Jose QC dept. Tested to output voltage. May have test markings on surface. Unit received may vary from photo. Contact us with questions.
View AllClose
