SoloPower SP3L-160 160W Flexible CIGS Solar Panel 65.1V 3.4A Solder Tabs

SoloPower SP3L-160 160W Flexible CIGS Solar Panel 65.1V 3.4A Solder Tabs

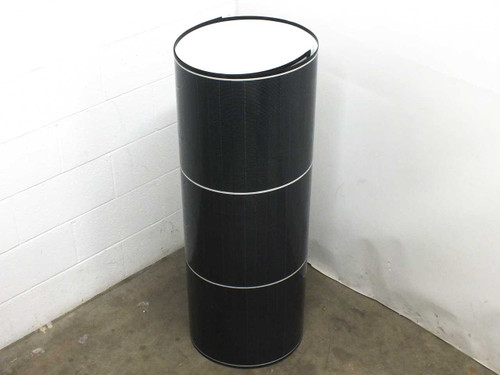

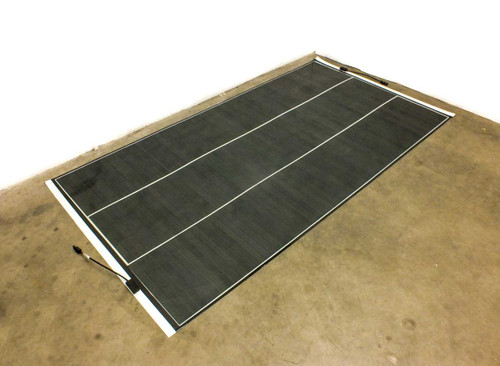

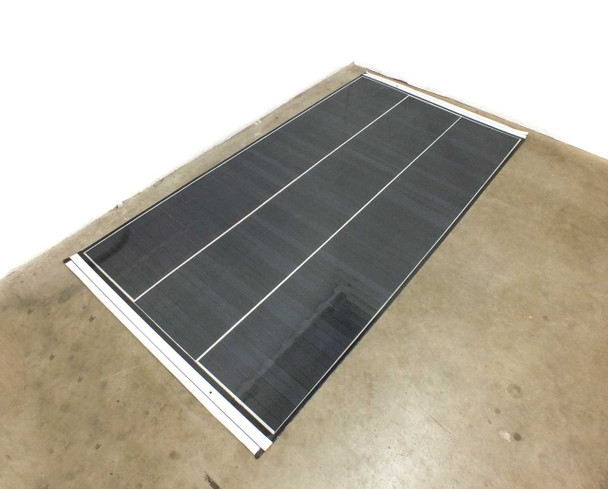

The SoloPower SP3L-160 is a 160-watt flexible thin-film solar panel using CIGS (Copper Indium Gallium Selenide) photovoltaic technology. Unlike rigid crystalline silicon panels, this panel is built on a flexible substrate just 2mm thick, allowing it to roll up for storage or conform to curved mounting surfaces. It consists of 180 series-connected CIGS cells, each rated to produce 1 to 1.5 watts. These panels are genuine new old stock manufactured at SoloPower's Portland, Oregon facility before the company closed and was liquidated in 2019. No cables are included; output connection is made via the solder point metal tabs at the panel edge.

Specifications & What's Included

• Model: SP3L-160
• Rated Power (Pmax): 160 W
• Voltage at Pmax (Vmp): 65.1 V
• Current at Pmax (Imp): 3.40 A
• Open Circuit Voltage (Voc): 91.8 V
• Short Circuit Current (Isc): 4.40 A
• Max Series Fuse Rating: 7 A
• Max System Voltage: 600 VDC
• Cell Technology: CIGS thin film, 180 series-connected cells
• Cell output range: 1 to 1.5 W per cell
• Panel Length: 86.5 in (7.2 ft / 2.197 m)
• Panel Width: 45.1 in (3.75 ft / 1.146 m)
• Panel Thickness: 0.1 in (2.0 mm)
• Connection: Solder point metal tabs (no cables attached or included)
• Field Wiring: 14–10 AWG stranded copper wire, 2.5–6 mm² insulated for 90°C minimum
• Standards: IEC 61646, IEC 61730
• Ratings tested at STC: 1000 W/m² irradiance, 25°C cell temperature; power tolerance +5% / -3%
• Panel ships without a label affixed (label shown in photos is an example only)

Applications

CIGS thin-film solar panels like the SP3L-160 are used in applications where weight, flexibility, or low-profile mounting is a priority. The flexible substrate makes this panel suitable for curved or irregular surfaces such as marine vessel decks and cabin tops, RV and camper van roofs, and building-integrated photovoltaic (BIPV) installations where rigid panels cannot be mounted. At 65.1V Vmp and a 600VDC max system voltage, the SP3L-160 is compatible with a range of charge controllers and grid-tie inverters. The high open-circuit voltage (91.8V) relative to a standard 12V or 24V battery system means it works well with MPPT charge controllers. CIGS technology generally performs better than monocrystalline silicon panels in low-light and high-temperature conditions, making it a practical choice for marine and mobile off-grid systems. SoloPower focused on commercial and specialty markets, and the SP3L series was among the longest large-format flexible panels produced in the United States during the company's operation in the early 2010s.
