SMC MDBL80-110-Y7NWZ MB Series Tie-Rod Cylinder w/ JAF80-22-150 Floating Joint

(No reviews yet) Write a Review
SKU:
51973
MPN:
MDBL80-110-Y7NWZ
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
17.00 LBS
Shipping:
Calculated at Checkout
  • SMC MDBL80-110-Y7NWZ MB Series tie-rod cylinder with JAF80-22-150 floating joint and mounting brackets — three-quarter front view showing cylinder body, tie rods, and floating joint assembly
  • SMC MDBL80-110-Y7NWZ tie-rod pneumatic cylinder — side view showing full cylinder length, tie rods, air ports, and floating joint attached at rod end
  • SMC MDBL80-110-Y7NWZ rating label showing model number, max pressure 1.0 MPa, Made in Japan, SMC brand
  • SMC JAF80-22-150 floating joint label showing model number, M22x1.5 thread specification, Made in Japan
$140.00
Was: $275.00
Current Stock: 8

Sold Out

Description

SMC MDBL80-110-Y7NWZ MB Series Tie-Rod Cylinder w/ JAF80-22-150 Floating Joint

Pneumatic tie-rod cylinder from SMC's MB Series with integral floating joint assembly. Designed for industrial automation and pneumatic control applications requiring controlled linear motion with tie-rod construction for durability and load distribution.

Specifications & What's Included

  • Bore Size: 80 mm
  • Stroke Length: 110 mm
  • Max Pressure: 1.0 MPa
  • Floating Joint: JAF80-22-150 (M22x1.5 thread)
  • Cushion Type: Standard air cushion with floating cushion seal
  • Mounting: Tie-rod with mounting brackets included
  • Manufactured in Japan

Applications

MB Series tie-rod cylinders are used in factory automation, material handling systems, pressing operations, and clamping fixtures. The floating joint design accommodates misalignment and angular load conditions. These cylinders integrate into pneumatic control systems across manufacturing, packaging, and assembly line equipment. Typical operating pressures range from 0.5 to 1.0 MPa for industrial process applications.

Condition: Used
This SMC MDBL80-110-Y7NWZ MB Series Tie-Rod Cylinder with JAF80-22-150 Floating Joint has been inspected and is in good condition. It was pulled from a working environment where it was actively in use. The cylinder body, tie rods, and floating joint all appear intact with no visible damage. Mounting brackets are included. Normal surface wear consistent with industrial service use is present. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
SMC
Model:
MDBL80-110-Y7NWZ
MPN:
MDBL80-110-Y7NWZ
Secondary Model:
JAF80-22-150
SKU:
51973
Type:
Pneumatic Tie-Rod Cylinder with Floating Joint
Series:
MB Series
Bore Size:
80 mm
Stroke Length:
110 mm
Max Pressure:
1.0 MPa
Floating Joint Model:
JAF80-22-150
Floating Joint Thread:
M22x1.5
Cushion Type:
Standard Air Cushion with Floating Cushion Seal
Mounting:
Tie-Rod with Mounting Brackets
Country/Region of Manufacture:
Japan
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes MDBL80-110-Y7NWZ cylinder, JAF80-22-150 floating joint, and mounting brackets
Condition Notes:
SMC MDBL80-110-Y7NWZ MB Series Tie-Rod Cylinder with JAF80-22-150 Floating Joint. Inspected, in good condition. Pulled from a working environment. Includes mounting brackets. Normal wear from industrial use.
View AllClose

Related Products

Related Products

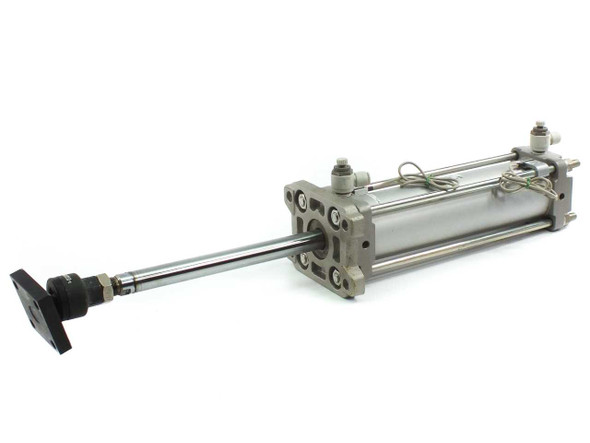

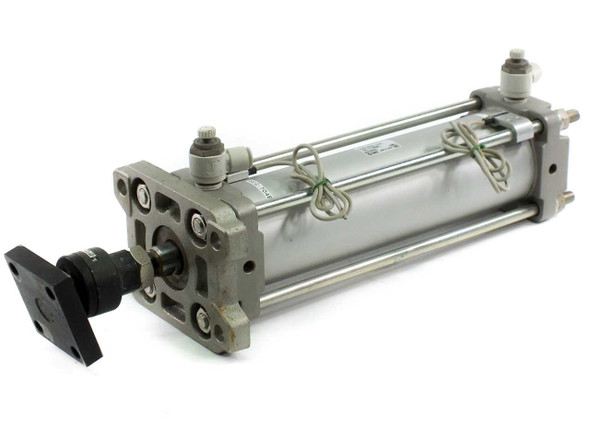

SMC CDBA2F80-250 tie-rod pneumatic cylinder with end lock and floating joint attached – left side view showing rod extended and flange mount SMC CDBA2F80-250 pneumatic cylinder with piston rod fully extended – right side profile view showing tie rods and end lock body
