SMC CDBA2F80-250 Tie-Rod Pneumatic Cylinder End Lock 80mm Bore w/ JAF80-22-150

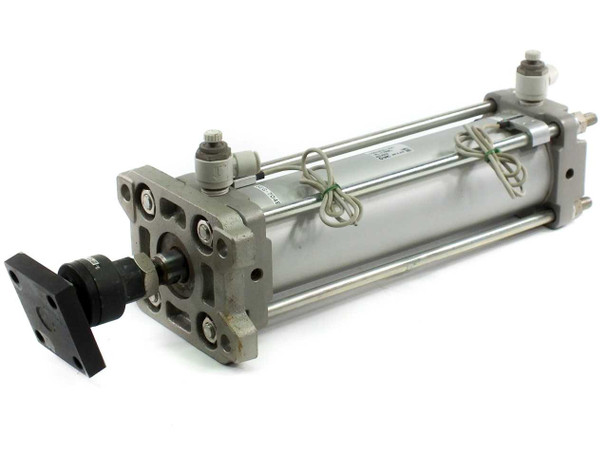

The SMC CDBA2F80-250-HL-Y7NWL is a tie-rod style pneumatic cylinder from SMC's CBA2 series, featuring an integrated end lock mechanism and front flange mounting. It has an 80mm bore and 250mm stroke, rated to 1.0 MPa maximum pressure. This listing includes the matching SMC JAF80-22-150 floating joint, which couples the cylinder rod to a driven load while accommodating minor misalignment.
Specifications & What's Included
- Manufacturer: SMC Corporation (Made in Japan)
- Base Model: CDBA2F80-250

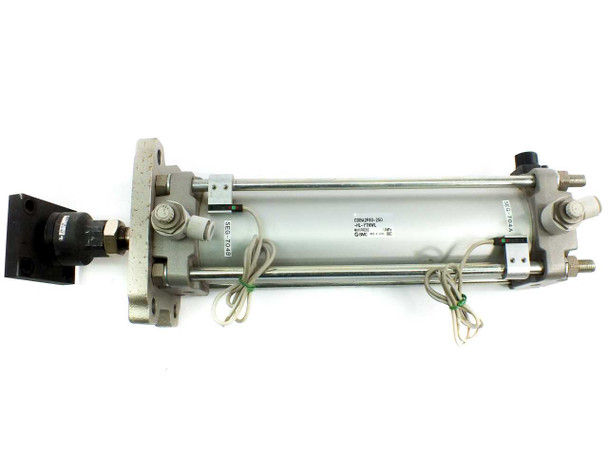

- Full Model Number: CDBA2F80-250-HL-Y7NWL
- Series: CBA2 (compatible with CBA1/CBA2 series accessories)
- Bore Size: 80mm

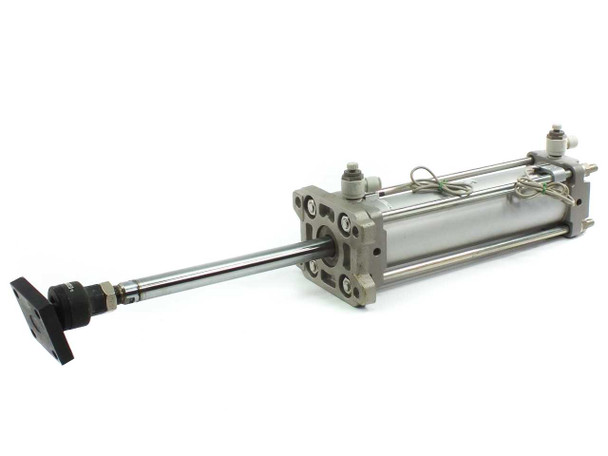

- Stroke: 250mm
- Max Pressure: 1.0 MPa

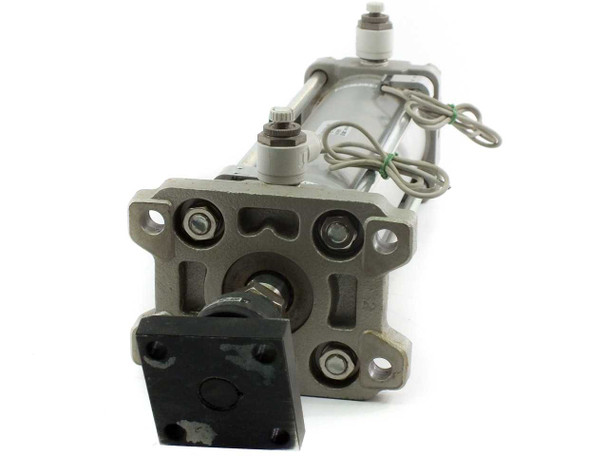

- Mounting Style: Front flange (F style)

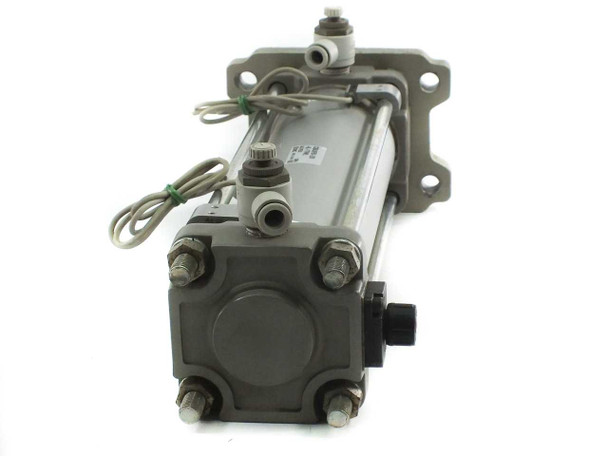

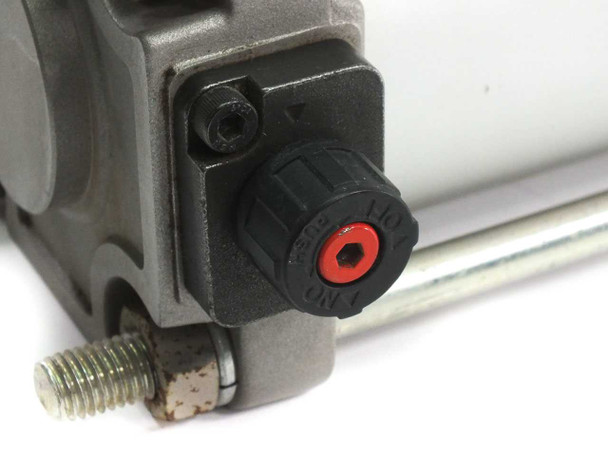

- End Lock: Yes — rotary end-lock mechanism (HL suffix); lock/release knob visible on head cap
- Auto Switch: Installed — Y7NWL reed/solid-state switch with lead wires
- Construction: Tie-rod body with aluminum barrel and cast end caps

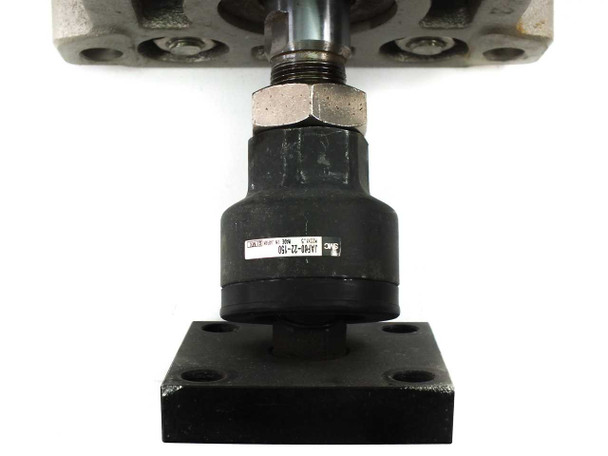

- Included: SMC JAF80-22-150 Floating Joint, M22x1.5 thread
- Front flange mounting plate included and attached
- Port fittings: Push-to-connect pneumatic fittings installed on both ports
Applications
SMC CBA2-series tie-rod cylinders are double-acting pneumatic actuators widely used in industrial automation, handling equipment, semiconductor manufacturing, and process machinery. The end-lock (HL) option mechanically locks the piston at the end of stroke — a safety feature used where the load must be held in position even if air pressure is lost, such as in pick-and-place, clamping, or lifting fixtures. This particular cylinder was used in an automated machine that picked and positioned flexible solar modules during manufacturing, a demanding precision-handling application. The included SMC JAF80-22-150 floating joint allows the rod to connect to the driven mechanism while compensating for angular and parallel misalignment. SMC CBA/CBA2 series cylinders remain in widespread active use across factory automation globally, and replacement and spare units are sought by maintenance and engineering teams working on existing systems.

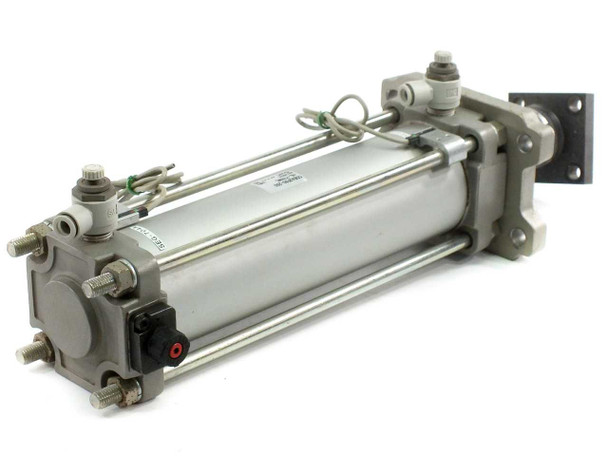

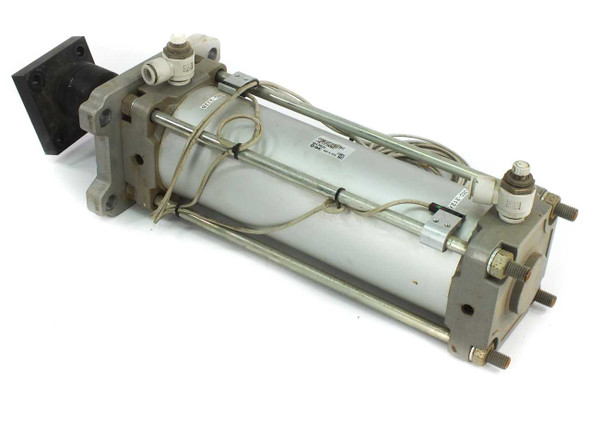

This SMC CDBA2F80-250 tie-rod pneumatic cylinder is in good working order. It came from a large automated machine used to handle flexible solar modules, and that machine saw very low use — the cylinder shows only light cosmetic wear consistent with normal service. The barrel, tie rods, flange, and end lock body all appear clean and intact in the photos. The auto switch wiring is present, and the SMC JAF80-22-150 floating joint (M22x1.5) is included and attached. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
SMC |
Model: |
CDBA2F80-250 |
MPN: |
CDBA2F80-250-HL-Y7NWL |
Secondary Model: |
JAF80-22-150 |
SKU: |
52363 |
Type: |
Tie-Rod Pneumatic Cylinder with End Lock |
Series: |
CBA2 (CBA1/CBA2) |
Bore Size: |
80mm |
Stroke Length: |
250mm |
Max Pressure: |
1.0 MPa |
Mounting Style: |
Front Flange |
End Lock Type: |
End Lock (HL) |
Auto Switch Compatible: |
Yes (Y7NWL switch installed) |
Includes: |
SMC JAF80-22-150 Floating Joint (M22x1.5) |
Fluid Medium: |
Compressed Air (Pneumatic) |
Condition: |
Used – Pulled from Working Environment |
Country/Region of Manufacture: |
Japan |
Compatible With: |
SMC CBA1/CBA2 Series Tie-Rod Cylinder Systems |
Seller Notes: |
Includes SMC JAF80-22-150 floating joint; auto switch installed; in good working order |
Condition Notes: |
SMC CDBA2F80-250 pneumatic cylinder in good working order. Removed from a low-use solar module handling machine. Light cosmetic wear only. Includes SMC JAF80-22-150 floating joint. Auto switch installed and wiring intact. |
