SMC CDPXWL32-75-J79L CXWL Series Pneumatic Linear Slide 32mm Bore 75mm Stroke 145PSI

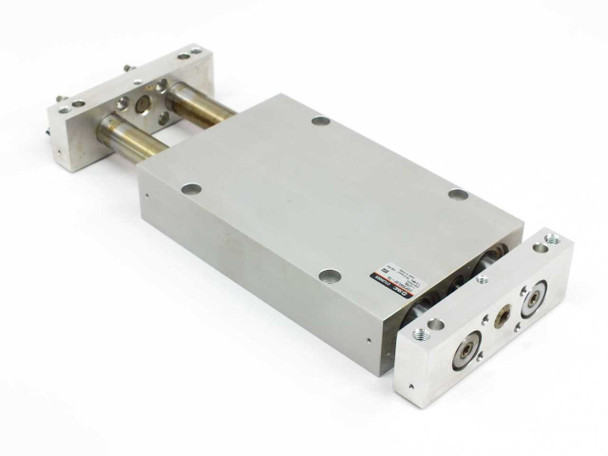

The SMC CDPXWL32-75-J79L is a dual-rod pneumatic linear slide cylinder from SMC's CXWL series, featuring a 32 mm bore and 75 mm stroke. It uses a ball bushing bearing design to guide the twin rods with low friction and high rigidity, making it well suited for applications requiring precise linear motion with resistance to moment loads. The unit is rated for a maximum operating pressure of 1.0 MPa (145 PSI) and is compatible with SMC auto switches for position detection.
Specifications & What's Included
- Manufacturer: SMC Corporation

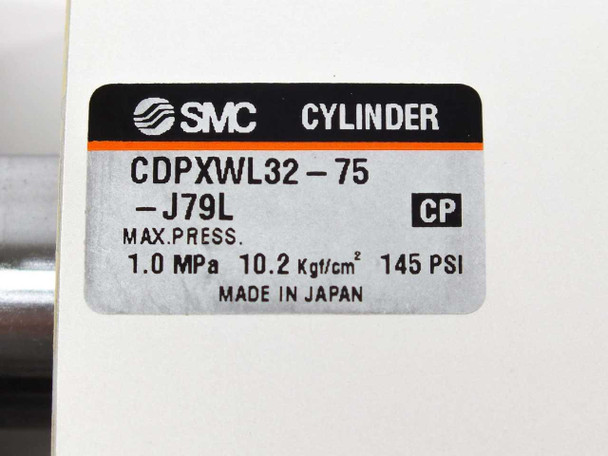

- Model / MPN: CDPXWL32-75-J79L
- Series: CXWL
- Bore size: 32 mm
- Stroke length: 75 mm
- Maximum operating pressure: 1.0 MPa / 145 PSI / 10.2 kgf/cm²
- Bearing type: Ball bushing
- Rod configuration: Dual guide rods with swivel ball-joint rod ends
- Mounting: Plate mounting
- Auto switch compatible: Yes (J79L suffix indicates auto switch / plate mount configuration)
- Body material: Aluminum alloy
- Country of manufacture: Japan (per label)

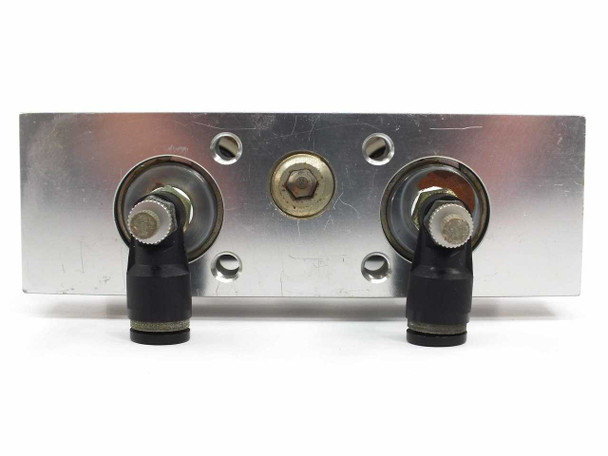

- Includes: Two push-in pneumatic fittings on end cap (visible in photos)
Applications
SMC's CXWL series pneumatic linear slides are used in factory automation and industrial machinery where controlled linear motion is needed under guided, moment-resistant conditions. The dual-rod ball bushing design prevents rotation and handles off-center loads, making these units common in pick-and-place systems, material handling fixtures, clamping and pressing stations, and assembly line tooling. SMC is a Japanese pneumatics manufacturer whose components are widely used in semiconductor handling, electronics assembly, automotive production, and general industrial automation. The CDPX/CXWL family is designed to accept SMC auto switches directly on the body, enabling position feedback without external sensors, which is a standard requirement in PLC-controlled automation cells.
This SMC CDPXWL32-75-J79L CXWL Series pneumatic linear slide has been inspected and is in good condition. The aluminum body is clean with only minor surface marks consistent with normal handling. The dual guide rods show light wear and some surface discoloration typical of use, as visible in the photos. The end cap ports and push-in pneumatic fittings are present and intact. No cracks, bends, or damage to the body or rod assembly were noted. Please view our photo set and contact us if you have any questions.
