Siemens

Siemens SB Dead Front Switchboard 1000A 208Y/120V 3-Phase 4W NXD63B100

(No reviews yet) Write a Review
SKU:
52932
MPN:
SB 1000A
Condition:
Used
Availability:
Usually ships within 3-5 business days — please contact us for freight arrangements on this large item.
Weight:
414.00 LBS
Shipping:
Calculated at Checkout
  • Siemens SB Dead Front Switchboard 1000A — front view with door closed, full enclosure visible

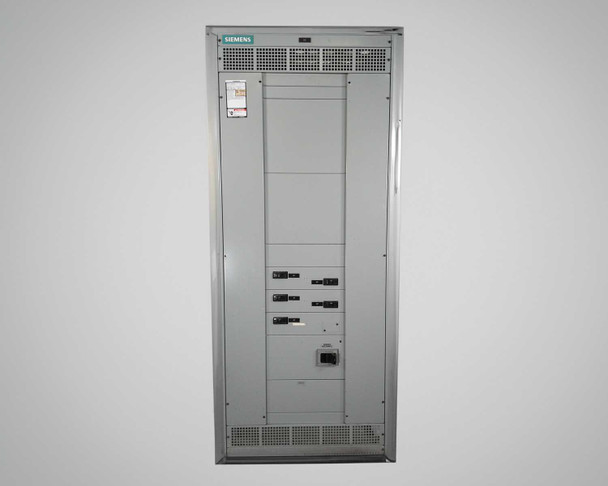

  • Siemens SB 1000A Dead Front Switchboard — front view with door open showing branch breaker section
  • Siemens switchboard nameplate label — 208Y/120V 3-Phase 4W, NEMA Type 1, Mfg Date 08/01, UL Listed E-142638
  • Interior view of Siemens switchboard branch breaker section — five QJ23B225 225A breakers labeled 9P, 12P, 8P, 10P, 13P
  • Siemens switchboard interior — main bus bar lugs and terminal connectors with internal wiring removed

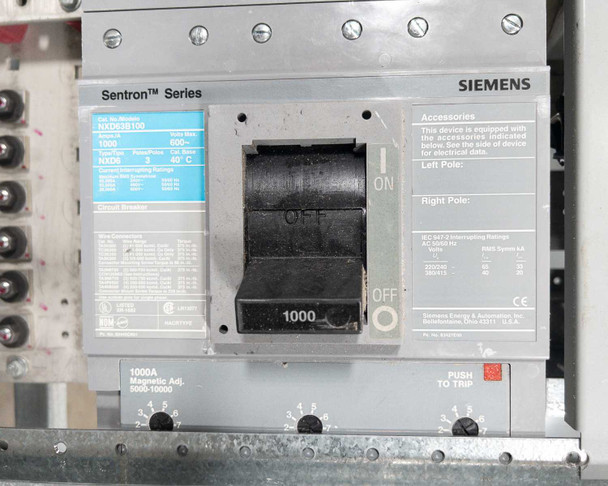

  • Siemens Sentron Series NXD63B100 1000A 600V 3-pole main circuit breaker — front handle view

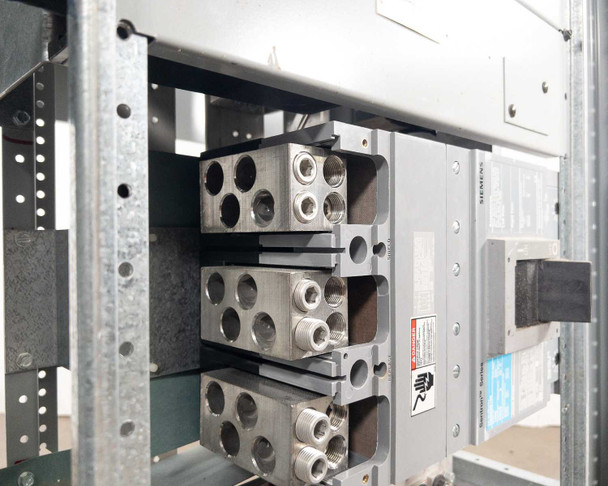

  • Siemens switchboard main bus bar assembly — three-phase lug stack closeup, wiring removed
  • Siemens switchboard neutral disconnect link and main bonding jumper — labeled hardware visible
  • Siemens switchboard interior side view — branch breaker section with external conduit cables visible
  • Siemens SB 1000A Dead Front Switchboard — front view fully open, interior layout visible

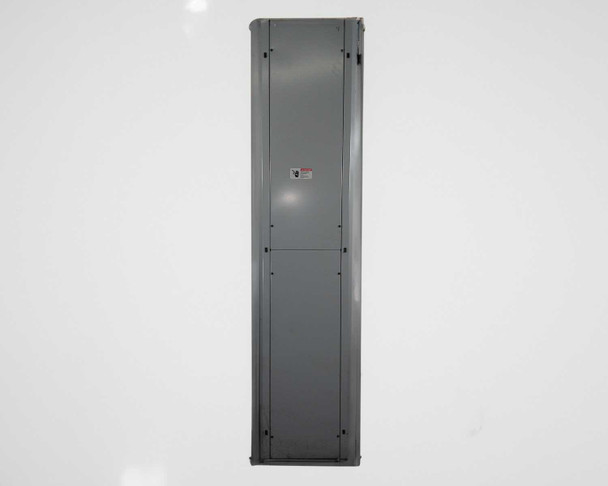

  • Siemens SB switchboard — rear view, full enclosure, gray cabinet
  • Siemens SB switchboard — side profile view, door partially open showing enclosure depth
  • Siemens SB switchboard — three-quarter front view showing lower interior with bus bar hardware
  • Siemens nameplate badge closeup — teal Siemens logo on upper enclosure panel
  • Siemens switchboard interior label — Danger hazardous voltage warning and DC reversal spec label

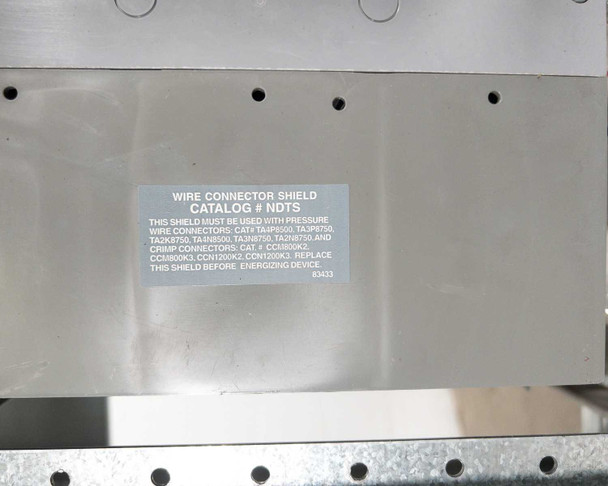

  • Siemens switchboard Wire Connector Shield label — Catalog No. NDTS, compatible connector types listed
$8,500.00
Was: $17,000.00
Current Stock: 1

Sold Out

Description

Siemens SB Dead Front Switchboard 1000A 208Y/120V 3-Phase 4W NXD63B100

Dead front switchboard rated for 1000A service at 208Y/120V, 3-phase, 4-wire. Main distribution panel with integrated Sentron breakers for branch circuit protection and load management.

Specifications & What's Included

  • Model: Siemens SB (MPN: NXD63B100)
  • Rating: 1000A, 208Y/120V, 3-phase, 4-wire, 50/60 Hz
  • Main Breaker: Siemens NXD63B100 1000A 3-pole
  • Branch Breakers: Five Siemens QJ23B225 225A breakers
  • Enclosure: NEMA Type 1
  • UL Listed deadfront switchboard section (No. E-142638)
  • Includes neutral disconnect link and main bonding jumper

Applications

Dead front switchboards provide primary distribution for industrial and commercial electrical systems. This unit was used for managing high-amperage loads across multiple branch circuits. Compatible with standard 480V and lower-voltage systems using Siemens Sentron breaker architecture. Typically installed in manufacturing facilities, data centers, and large commercial buildings as main service equipment or sub-distribution panels.

Condition: Used
This Siemens SB 1000A Dead Front Switchboard has been visually inspected and is in good overall condition. The unit was pulled from an active service installation and has not been bench-tested at our facility; it is believed to be in working order based on its operational history. All internal branch and feeder wiring has been removed from the enclosure prior to decommissioning. The cabinet and breakers show typical cosmetic wear consistent with an installed environment — scuffs and scrapes on the exterior panels from removal are visible. The main Sentron NXD63B100 1000A breaker and all five QJ23B225 225A branch breakers remain installed. The neutral disconnect link, main bonding jumper, and wire connector shield (Cat. No. NDTS) are present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
SB
MPN:
NXD63B100
Type:
Dead Front Switchboard
SKU:
52932
Voltage Rating:
208Y/120V AC
Current Rating:
1000A
Phase:
Three Phase
Wire Configuration:
4-Wire (4W)
Frequency:
50/60 Hz
Enclosure Type:
NEMA Type 1
Main Breaker:
Siemens NXD63B100 — 1000A, 600V, 3-Pole
Branch Breaker:
Siemens QJ23B225 — 225A, 240VAC, Qty 5
Breaker Series:
Sentron Series
Number of Branch Breakers:
5
Sales Order:
19-14805-B000010
Manufacture Date:
August 2001
UL Listed:
Yes — Deadfront Switchboard Section, No. E-142638
Wiring Status:
All internal wiring removed from enclosure
Wire Connector Shield:
Catalog No. NDTS (present)
Neutral Disconnect Link:
Present
Main Bonding Jumper:
Present
Seller Notes:
All internal wiring removed. Includes main 1000A breaker and 5x 225A branch breakers.
Country/Region of Manufacture:
United States
Condition:
Used – Pulled from Working Environment, Internal Wiring Removed
Condition Notes:
This Siemens SB 1000A Dead Front Switchboard has been visually inspected and is in good overall condition. The unit was pulled from an active service installation and has not been bench-tested at our facility; it is believed to be in working order
