Siemens

Siemens S1C42JX400CBS Panel Board 208Y/120V 3Ph 4W 400A JXD63B400 SBD68

(No reviews yet) Write a Review
SKU:
52956
MPN:
S1C42JX400CBS
Condition:
Used
Availability:
Usually ships within 3-5 business days. Please contact us prior to purchase for freight shipping arrangements on this large item.
Weight:
279.00 LBS
Shipping:
Calculated at Checkout
  • Siemens S1C42JX400CBS panel board front view with door closed, full enclosure visible
  • Siemens S1C42JX400CBS panel board interior view with door open showing main breaker and branch circuits with wiring installed

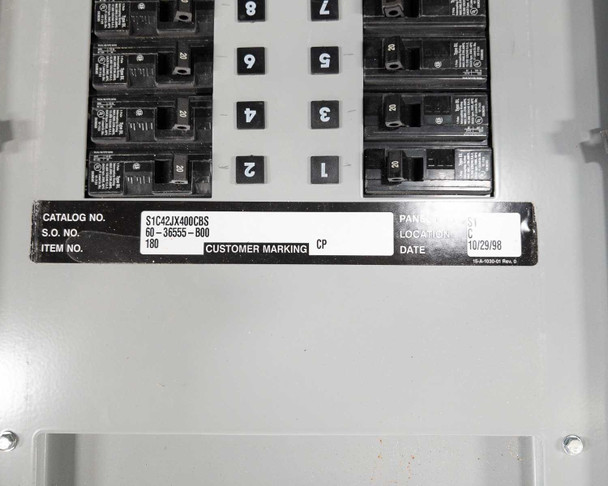

  • Siemens S1C42JX400CBS catalog label showing catalog number S1C42JX400CBS, S.O. No. 60-36555-B00, Item No. 180, Date 10/29/98
  • Siemens Sentron Series JXD63B400 main circuit breaker close-up showing 400A rating and magnetic adjustment 2000-4000 label
  • Close-up of branch circuit breaker rows inside panel board showing installed wiring and dual rows of breakers
  • Close-up of individual branch circuit breakers showing 1-pole and 2-pole B120 type breakers including 30A and 20A units
  • Siemens SBD68 enclosure label showing catalog number SBD68, 24WD Type 1 Box w/o Ground Bus, dated 10/21/98
  • Siemens panel interior data label showing voltage systems 208Y/120V 3-phase 4W, NEC compliance notes, and danger warning
  • Siemens Sentron Series JXD63B400 400A main breaker installed in panel, rear/installed view with bus connections visible

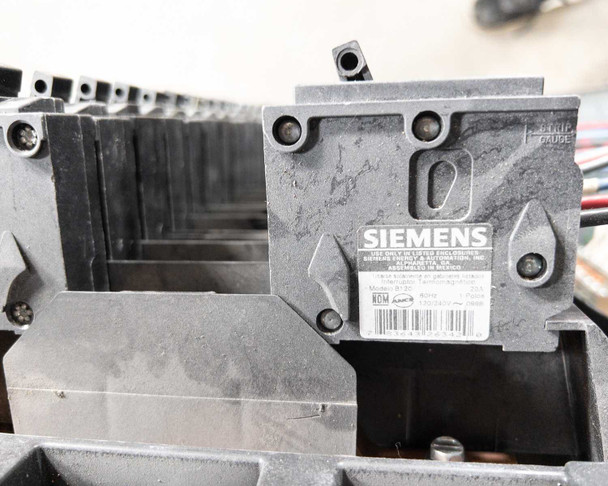

  • Siemens B120 branch circuit breaker removed from panel showing back and label detail
  • QJ23B200 200A 3-pole secondary circuit breaker installed in lower panel section with bus connections and wiring
  • Lower interior of panel board showing secondary breaker QJ23B200 and dense wiring harness below branch circuits
  • Siemens S1C42JX400CBS panel board front view with door closed, alternate angle showing full height enclosure
  • Side panel accessory strip – front face view showing narrow galvanized steel trim piece with mounting hole
  • Side panel accessory strip – reverse face view showing narrow galvanized steel piece with knockout
  • Bottom of panel board enclosure – underside view showing galvanized steel base with mounting hardware

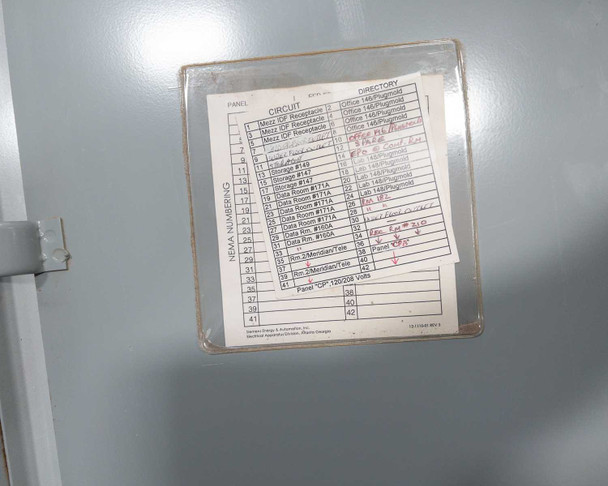

  • Panel circuit directory label inside door showing 42-circuit layout with handwritten circuit labels
$3,200.00
Was: $6,400.00
Current Stock: 1

Sold Out

Description

Siemens S1C42JX400CBS Panel Board 208Y/120V 3Ph 4W 400A JXD63B400 SBD68

Lighting and Appliance Branch Circuit Panelboard rated 400A at 208Y/120V, 3-phase, 4-wire. This Siemens panel provides branch circuit distribution and protection for commercial and industrial electrical systems.

Specifications & What's Included

  • Model: S1C42JX400CBS; Enclosure: SBD68 Type 1, 24" wide, 68" tall
  • Main Breaker: JXD63B400 – 400A, 3-Pole, 600V Sentron Series
  • Secondary Breaker: QJ23B200 – 200A, 3-Pole, 240VAC
  • 42 Branch Circuits: B120 Interrupter Switches, 20A and 30A ratings
  • Voltage: 208Y/120V, 3-Phase, 4-Wire
  • NEC Article 384-14/384-15 compliant; CE marked

Applications

This panelboard type is used in commercial buildings for distributing 3-phase power to lighting and appliance circuits. Commonly installed in office buildings, retail facilities, and light industrial spaces. The 400A main rating supports moderate to large loads with secondary breaker protection and multiple branch circuits for load management and isolation.

Condition: Used
This Siemens S1C42JX400CBS 3-Phase Panel Board was pulled from a working environment where it was actively in service. The unit has been inspected and appears to be in good used condition overall. The enclosure shows normal wear consistent with installed service use, including surface scuffs and minor soiling on the exterior cabinet. The interior wiring is present and the breaker complement — including the JXD63B400 400A main breaker, QJ23B200 200A secondary breaker, and the 42 branch circuit B120 interrupter switches — is intact as photographed. The circuit directory label is present inside the door with handwritten circuit labels from its prior installation. Please review our full photo set for a detailed look at the interior and exterior condition, and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
S1C42JX400CBS
MPN:
S1C42JX400CBS
Type:
Lighting and Appliance Branch Circuit Panelboard
SKU:
52956
Enclosure / Box Model:
SBD68 – 24WD Type 1 Box w/o Ground Bus
Main Circuit Breaker:
JXD63B400 – 400A, 3-Pole, 600V Max (Sentron Series)
Secondary Circuit Breaker:
QJ23B200 – 200A, 3-Pole, 240VAC
Branch Breaker Model:
B120 Interrupter Switch (Qty 42), 1-Pole & 2-Pole
Branch Breaker Ratings:
20A and 30A
Voltage Rating:
208Y/120V
Amperage Rating:
400A
Phase:
3-Phase
Wire Configuration:
4-Wire
Number of Circuits:
42
Enclosure Type:
NEMA Type 1 (Indoor)
Dimensions (L x W x H):
8" x 24" x 68"
Main Breaker Magnetic Adj Range:
2000–4000A
Manufacture Date:
10/29/98 (per catalog label)
Condition:
Used – Pulled from Working Environment
Seller Notes:
Complete panel with main breaker, secondary breaker, and 42 branch circuits installed
Country/Region of Manufacture:
United States
Standards / Certifications:
NEC Article 384-14 and 384-15; CE marked main breaker
Form Factor:
Floor-Standing / Wall-Mount Enclosure
Condition Notes:
This Siemens S1C42JX400CBS 3-Phase Panel Board was pulled from a working environment where it was actively in service. The unit has been inspected and appears to be in good used condition overall.
