Siemens

Siemens 60-36555-H20 1000A Switchboard 208Y/120V 3-Phase NXD63B100 Sentron

(No reviews yet) Write a Review
SKU:
52933
MPN:
60-36555-H20
Condition:
Used
Availability:
This item ships freight. Please contact us prior to purchasing for shipping arrangements.
Weight:
506.00 LBS
Shipping:
Calculated at Checkout
  • Siemens 60-36555-H20 1000A switchboard – three-quarter front-left view showing full cabinet height with ventilation slots and breaker section

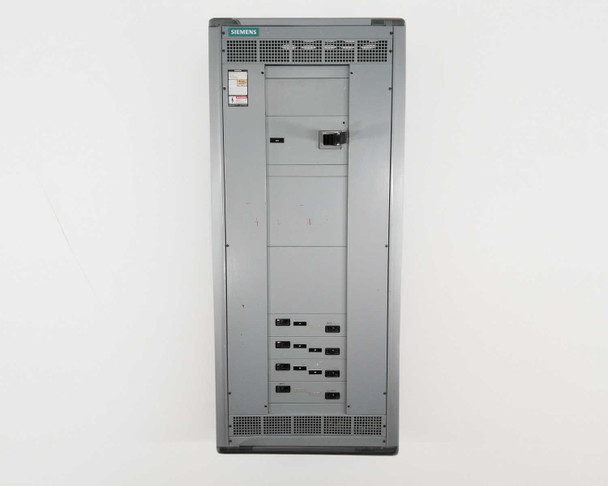

  • Siemens 60-36555-H20 1000A switchboard – straight-on front view showing complete dead-front enclosure with rating label and lower breaker modules
  • Siemens switchboard rating label – showing catalog number 60-36555-H20, 208Y/120V system, 3-phase, 1000A supply, UL Dead Front Switchboard listing number U 474656
  • Siemens 60-36555-H20 switchboard interior – open cabinet view showing Sentron main breaker at top and lower branch breaker section with wiring
  • Siemens Sentron Series NXD63B100 main circuit breaker – close-up showing breaker handle in ON position with blue label and terminal bus bar connections
  • Siemens switchboard interior upper section – top-down view of main breaker mounting and lugs/bus bar assembly with cable entry knockouts
  • Siemens switchboard branch breaker section – interior view showing multiple bolt-on branch circuit breakers wired with green ground conductors

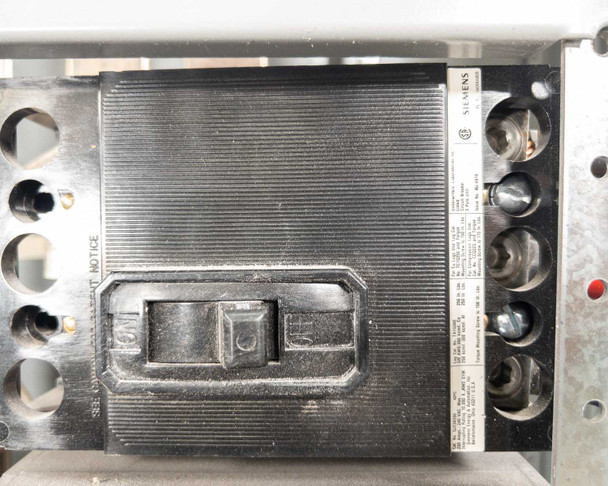

  • Siemens switchboard branch breaker close-up – single breaker module detail showing toggle handles and side terminal connections with visible dust
  • Siemens switchboard main lug compartment – large-diameter conductors with white and black tape markings terminated at main lug block

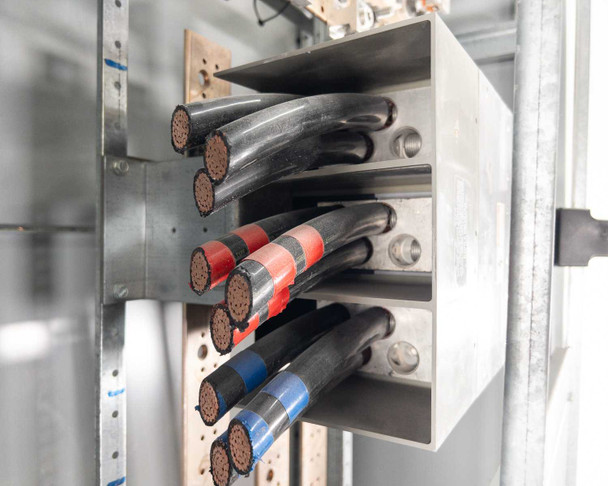

  • Siemens switchboard incoming cable compartment – multiple large conductors with red and blue phase tape markings entering lug termination block

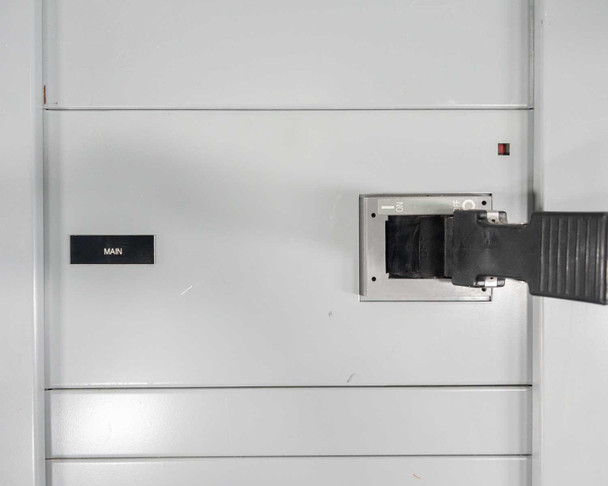

  • Siemens switchboard main breaker door panel – exterior view of main section door with 'MAIN' label placard and breaker handle protruding
  • Siemens switchboard front door – breaker section exterior showing labeled branch breaker positions with toggle-style breaker handles visible through door

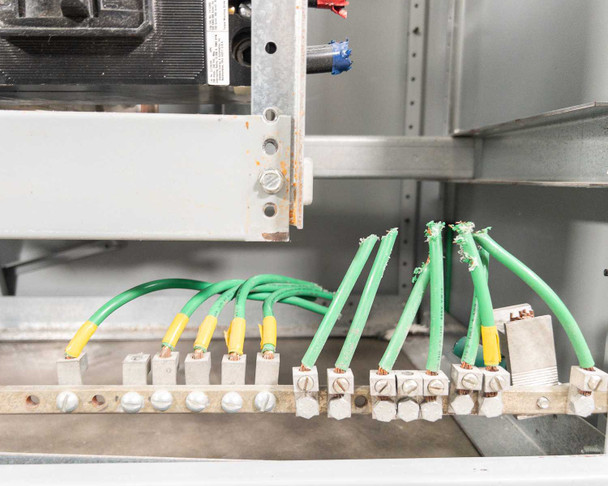

  • Siemens switchboard ground bar – interior detail showing green and yellow ground/neutral conductors terminated at ground bus bar
  • Siemens NXD63B100 Sentron breaker label – close-up of breaker nameplate showing catalog number NXD63B100, 1000A, 600V, and Sentron Series designation

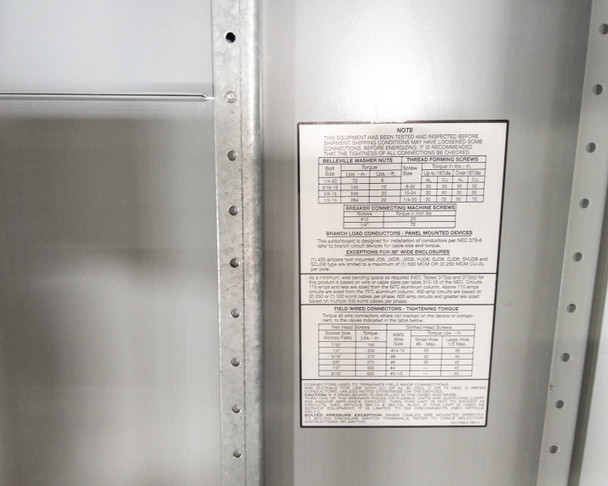

  • Siemens switchboard interior wiring instruction label – panel-mounted label showing conductor installation specs, torque requirements, and NEC compliance notes

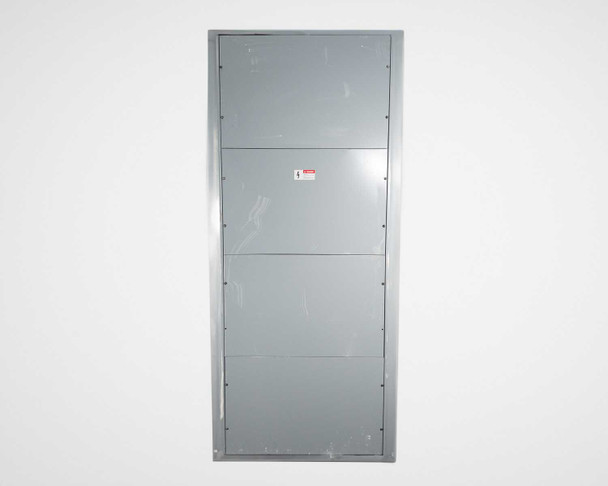

  • Siemens 60-36555-H20 switchboard – full rear panel view showing complete back enclosure with four panel sections and warning label
  • Siemens 60-36555-H20 switchboard – left side profile view showing cabinet depth, seam lines, warning decal, and bottom cable exit

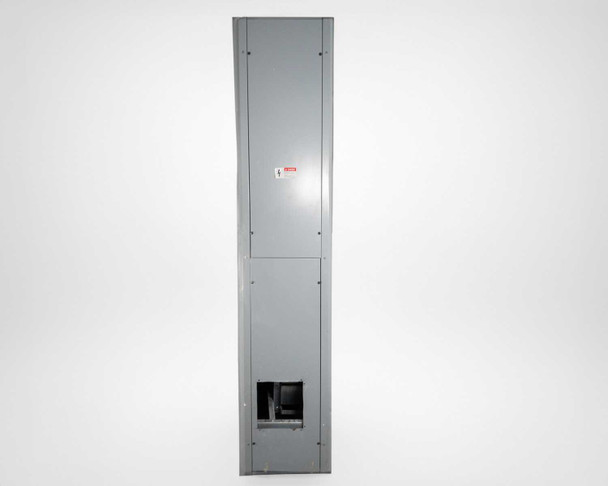

  • Siemens 60-36555-H20 switchboard – right side profile view showing full height of enclosure, panel seams, and bottom breaker/cable exit
$10,600.00
Was: $36,800.00
Current Stock: 1

Sold Out

Description

Siemens 60-36555-H20 1000A Switchboard 208Y/120V 3-Phase NXD63B100 Sentron

The Siemens 60-36555-H20 is a 1000-amp dead-front SB-type switchboard designed for three-phase commercial and industrial electrical distribution at 208Y/120V. The switchboard houses a Siemens Sentron Series NXD63B100 main circuit breaker and a branch circuit section with multiple bolt-on breaker positions, all within a floor-standing steel enclosure. Dead-front switchboards of this type are built to NEMA and NEC standards for centralized power distribution service entry and downstream branch circuit management.

Specifications & What's Included

  • Siemens Catalog / Part Number: 60-36555-H20
  • Type: Dead Front SB Switchboard
  • System Voltage: 208Y/120V
  • Phase: 3-Phase
  • Bus / Main Rating: 1000A
  • Main Circuit Breaker: Siemens Sentron Series NXD63B100
  • Main Breaker Amperage: 1000A
  • Main Breaker Voltage Rating: 600V
  • Main Breaker Type: 3-Pole, PowerPlus / Bolt-On Frame
  • Branch Section: Multiple bolt-on branch circuit breakers (visible in interior photos)
  • Main Lug Section: Large-diameter incoming cable lugs with multi-conductor capacity (visible in photos)
  • Ground/Neutral Bus: Ground bus bar with multiple green and yellow conductor terminations
  • Enclosure: Floor-standing steel cabinet, dead-front construction
  • UL Listing: UL Dead Front Switchboard Section, File No. U 474656
  • Manufacturer: Siemens Energy & Automation, Electrical Apparatus Division, Atlanta, GA, USA
  • Wiring Note: Interior conductors have been cut and left in their original positions — re-termination required at installation

Applications

Dead-front SB switchboards in this amperage class are used as service entrance equipment in commercial buildings, industrial facilities, hospitals, data centers, universities, and large retail or mixed-use properties. A 1000A, 208Y/120V, 3-phase switchboard of this type typically serves as the main distribution point between the utility service and downstream panelboards, motor control centers, or branch circuit panels. The 208Y/120V configuration is the standard voltage system for commercial buildings fed from a wye-connected transformer, supplying both 208V three-phase loads and 120V single-phase branch circuits from the same bus. Siemens Sentron-series switchboards were widely deployed in commercial construction and renovation projects from the 1990s through the 2000s and remain in active use in many facilities today — making this a suitable candidate for a replacement or retrofit in a compatible electrical system.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
Siemens 60-36555-H20 1000A Switchboard 208Y/120V 3-Phase with NXD63B100 Sentron breaker, removed from active commercial service. The unit is structurally sound with an intact main breaker and internal bus assembly. Cosmetic wear is present, including scuffs and scratches to the outer cabinet consistent with normal service use, visible denting to the bottom panel and two rear panels (partially reduced but noticeable), and cut interior wiring left in original terminated positions. As a decommissioned unit, re-termination by a qualified electrician will be required at installation. Full photo documentation available; contact us with questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
60-36555-H20
MPN:
60-36555-H20
Type:
Dead Front SB Switchboard
SKU:
52933
Main Breaker Model:
NXD63B100
Main Breaker Series:
Sentron Series
Main Breaker Amperage:
1000A
Main Breaker Voltage Rating:
600V
System Voltage:
208Y/120V
Phase:
3-Phase
Bus Amperage:
1000A
Enclosure Type:
Dead Front Switchboard
UL Listing:
UL Listed – Dead Front Switchboard Section
Certifications:
UL Listed
Country/Region of Manufacture:
United States
Manufacturer:
Siemens Energy & Automation, Electrical Apparatus Div.
Form Factor:
Floor-Standing Cabinet
Condition:
Used – Pulled from Working Environment
Seller Notes:
Wires cut, left in original positions. Denting to bottom and two back panels. Scuffs and scratches on outer case.
Condition Notes:
Used: Siemens 1000A switchboard, commercial service removal. Main breaker & bus intact. Cosmetic wear, denting, cut wiring. Requires re-termination. Structurally sound.
