Siemens PIMD S30810-Q432-X PIBB PBX Circuit Board Card Module

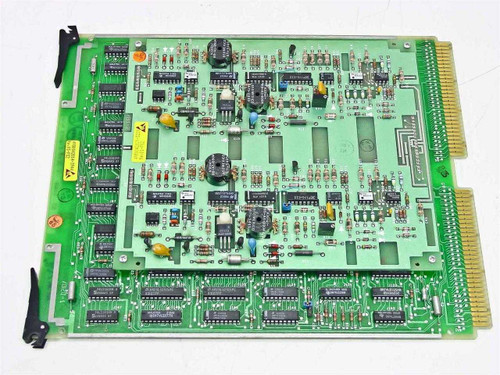

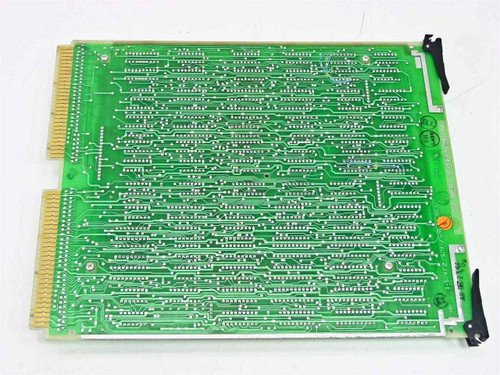

This listing is for a Siemens PIMD circuit board (part number S30810-Q432-X) paired with a PIBB sub-board, together forming a complete PBX module assembly. The board carries Siemens assembly number 4980042014-2115 (PIMD, Rev B3B-FS2) and PIBB assembly number 4980042029-2711 (Rev D1-FS2). The PCB date code reads week 13 of 1987, placing this in Siemens' mid-to-late-1980s PBX hardware generation. The module uses a gold-edge card connector interface for installation into a compatible Siemens system backplane.
Specifications & What's Included
- Brand: Siemens
- PIMD Part Number: S30810-Q432-X
- PIBB Part Number: V38204-B314-X1-2 (also labeled 4980042029-2711)
- PIMD Assembly Number: 4980042014-2115
- PIMD Revision: Rev B3B-FS2
- PIBB Revision: Rev D1-FS2
- Form Factor: Card / Module with gold-edge card bus connector
- PCB Date Code: Week 13, 1987
- Type: PBX circuit board / telecom switching module
- Components: Multiple DIL ICs, transformers, capacitors, diodes, resistors visible on front component side
- Connector: Multi-pin gold-edge card connector on one edge; secondary smaller-pitch connector on opposite edge
- Country of Manufacture: Germany
Applications
The PIMD (and its companion PIBB board) are functional modules from Siemens' PBX (Private Branch Exchange) telephone switching systems, which were widely deployed in medium-to-large enterprise and institutional environments during the 1980s and 1990s. Siemens produced several major PBX platforms during this era — including the HICOM and EWSD series — and modular circuit boards like these handled specific switching, interface, or signaling functions within the system chassis. Replacement boards of this type are sought by organizations still maintaining legacy Siemens telephone infrastructure, as well as by technicians performing system-level repairs. The card-slot form factor is typical of Siemens' backplane-based PBX architecture of the period, where individual functional modules could be swapped independently for maintenance or expansion.
This Siemens PIMD S30810-Q432-X and PIBB PBX circuit board module has been inspected and appears to be in good used condition. The board shows normal handling wear consistent with prior installation in a telephone system environment. The gold-edge card connector contacts are present and appear intact. No obvious physical damage, broken components, or burn marks are noted. Please view our photo set and contact us if you have any questions.
