Siemens

Siemens PIMD S30810-Q432-X PCB Card SATURN IIE Attendant Console Interface

(No reviews yet) Write a Review
SKU:
41680
MPN:
PIMD
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

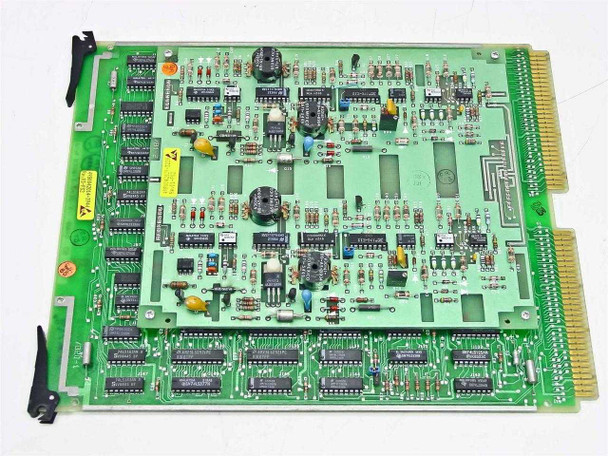

  • Siemens PIMD S30810-Q432-X PCB card — top component side showing ICs, transformers, and dual-channel codec circuitry
  • Siemens PIMD S30810-Q432-X PCB card — solder side showing trace routing and gold-finger edge connector
  • Siemens PIMD PCB label closeup showing P/N S30810-Q432-X, Assy 153, RC-2 revision, and date code 8506
  • Siemens PIMD S30810-Q432-X — angled top view showing full component layout and ESD warning label
  • Siemens PIMD card — closeup of card edge connector end showing SNS125AN and other ICs near gold-finger contacts
  • Siemens PIMD S30810-Q432-X — opposite card edge closeup showing component population and gold-finger connector detail
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Siemens PIMD S30810-Q432-X PCB Card SATURN IIE Attendant Console Interface

This is a dual-channel attendant console line interface card designed for the Siemens SATURN IIE PBX telephone system. The card supports two attendant consoles and handles digitally-encoded messages across four total channels.

Specifications & What's Included

  • Model: PIMD S30810-Q432-X / S30810-Q432-X-B50
  • Type: Attendant Console Interface PCB Card
  • Channels: 4 (two dual-channel circuits)
  • Consoles Supported: 2 per card
  • Assembly: Assy 153, Board Revision RC-2
  • Manufactured: Germany, Date Code 8506
  • Includes: Card only; no cables or accessories

Applications

This card was used in legacy Siemens SATURN IIE PBX installations to manage attendant console connections and call routing. It served as the interface between the main switch and attendant stations, enabling operators to handle incoming calls and transfer them to extensions. The SATURN IIE was a mid-range business telephone system used in commercial and institutional settings during the 1980s and 1990s.

Condition: Used
This Siemens PIMD S30810-Q432-X PCB card for the SATURN IIE system has been inspected and appears to be in good condition. The board shows typical light wear consistent with prior installation in a PBX environment. The PCB is clean with no visible cracked solder joints, burnt components, or physical damage. The gold-finger edge connector contacts look good. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
PIMD
MPN:
S30810-Q432-X
Secondary Model:
S30810-Q432-X-B50
SKU:
41680
Type:
Attendant Console Interface PCB Card
Compatible With:
Siemens SATURN IIE PBX System
Function:
Dual-channel attendant console line interface
Number of Channels:
4 (two dual-channel circuits)
Consoles Supported:
2 attendant consoles per card
Communication Method:
Digitally-encoded messages
Form Factor:
Card / Module (PCB)
Assembly Number:
Assy 153
Board Revision:
RC-2
Date Code:
8506
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no cables or accessories included.
Country/Region of Manufacture:
Germany
Condition Notes:
Siemens PIMD S30810-Q432-X SATURN IIE PCB card. Inspected and in good condition. Board is clean with no visible damage; edge connector contacts look good. Card only — no cables included.
View AllClose

Related Products

Related Products

Siemens PIMD S30810-Q432-X PBX circuit board – front component side showing ICs, transformers, and capacitors Siemens PIMD S30810-Q432-X PBX circuit board – reverse solder side showing gold-edge card connector
Add to Cart
Quick view

Siemens PIMD S30810-Q432-X PIBB PBX Circuit Board Card Module

Siemens

$45.00
Was: $90.00
Siemens PIMD S30810-Q432-X PIBB PBX Circuit Board Card ModuleThis listing is for a Siemens PIMD circuit board (part number S30810-Q432-X) paired with a PIBB sub-board, together forming a complete PBX...
41676
SKU:
41676
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Siemens
Model:
S30810-Q432-X
MPN:
S30810-Q432-X
Secondary Model:
V38204-B314-X1-2
Type:
PBX Circuit Board / Telecom Module Card
SKU:
41676
Seller Notes:
Includes PIMD board (S30810-Q432-X) and PIBB board; sold as shown.
Country/Region of Manufacture:
Germany
Form Factor:
Card / Module (gold-edge card connector)
Assembly Number:
4980042014-2115
PIMD Revision:
Rev B3B-FS2
PIBB Revision:
Rev D1-FS2
PIBB Part Number:
4980042029-2711
Manufacture Date Code:
13/87 (week 13, 1987)
Condition:
Used – Inspected and in Good Condition
Compatible With:
Siemens PBX telephone systems
Interface Type:
Gold-edge card bus connector
Condition Notes:
Siemens PIMD S30810-Q432-X / PIBB PBX circuit board. Inspected and in good used condition. Normal handling wear; gold-edge connector intact. No visible damage. Please view photos and contact us with questions.
Siemens Saturn III TMDB PCB Card S30810-Q1749-X 42520 – top component side showing dense IC array Siemens TMDB PCB Card S30810-Q1749-X – solder side (bottom) with gold-finger edge connectors
Add to Cart
Quick view

Siemens Saturn III TMDB PCB Card S30810-Q1749-X 42520 Rev A1A PBX Module

Siemens

$45.00
Was: $90.00
Siemens Saturn III TMDB PCB Card S30810-Q1749-X 42520 Rev A1A PBX ModuleTMDB PCB card module for Siemens Saturn III Private Branch Exchange systems. This is an internal switching and control...
41674
SKU:
41674
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Brand:
Siemens
Model:
S30810-Q1749-X
MPN:
S30810-Q1749-X
Secondary Model:
42520
SKU:
41674
Type:
PBX PCB Card / Module
Card / Board Name:
TMDB
Assembly Number:
42520
Revision:
Rev A1A
Variant / Suffix:
FS1
Compatible With:
Siemens Saturn III PBX System
Form Factor:
PCB Card / Module
Condition:
Used – Inspected
Country/Region of Manufacture:
Germany
Seller Notes:
Card only; no accessories included.
Condition Notes:
Siemens Saturn III TMDB PCB Card S30810-Q1749-X (42520) inspected and in good used condition. PCB, components, and gold-finger connectors appear clean with no visible damage. Normal handling wear from prior use.

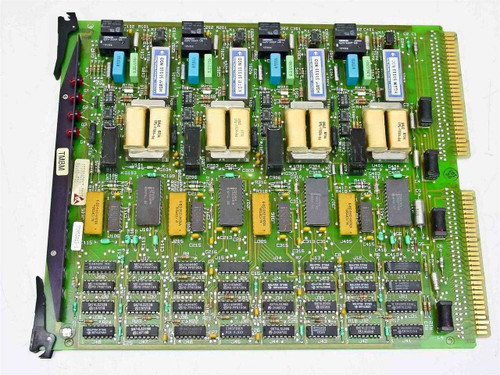

Siemens TMBM TCM53013-1 Both-Way Trunk Module PCB – top component side showing four trunk circuit sections with transformers and ICs Siemens TMBM TCM53013-1 PCB – solder side view showing trace layout and edge connector
