Siemens S30810-Q428-X LTUC Card 4980042011-2549 PBX Telephone Module

(No reviews yet) Write a Review
SKU:
41686
MPN:
S30810-Q428-X
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout
  • Siemens S30810-Q428-X LTUC Card – top-side component view showing populated PCB with ICs and blue capacitors
  • Siemens S30810-Q428-X LTUC Card – solder-side (bottom) view with gold-edge card connectors and metal mounting brackets
  • Siemens S30810-Q428-X label detail – part number S30810-Q428-X and date code APR 1 '91 visible on PCB silkscreen
  • Siemens LTUC Card S30810-Q428-X – front faceplate close-up showing PRS, ALMO, and ALM1 LED status indicators
  • Siemens S30810-Q428-X LTUC Card – close-up of card-edge connector area showing ICs including 74LS-series logic chips
  • Siemens S30810-Q428-X LTUC Card – corner detail of gold card-edge fingers and blue/yellow component groupings
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

Siemens S30810-Q428-X LTUC Card 4980042011-2549 PBX Telephone Module

Line/Trunk Unit Card (LTUC) for Siemens PBX and PABX telephone systems. This card module handles line and trunk connections within the system's backplane architecture.

Specifications & What's Included

  • Model: S30810-Q428-X (Secondary: 4980042011-2549)
  • Type: LTUC Line/Trunk Unit Card
  • Interface: Gold-edge card connector (backplane)
  • Status Indicators: PRS, ALMO, ALM1 LEDs on faceplate
  • Manufactured: Germany, April 1991
  • Form Factor: Card/Module only

Applications

LTUC cards are used in Siemens PBX/PABX systems to manage incoming and outgoing telephone lines and trunk connections. These modules were standard components in enterprise telephone switching systems from the 1980s through early 2000s. The card plugs into the system's backplane to provide line termination and switching functions for business telephone networks.

Condition: Used
This Siemens S30810-Q428-X LTUC Card (4980042011-2549) has been inspected and appears to be in good condition. The PCB shows normal light wear consistent with prior installation and removal from a telephone system. The card-edge gold fingers are present and appear clean. The front faceplate with PRS, ALMO, and ALM1 LED indicators is intact. No cracked components, broken traces, or obvious physical damage were noted. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siemens
Model:
S30810-Q428-X
MPN:
S30810-Q428-X
Secondary Model:
4980042011-2549
Type:
LTUC Line/Trunk Unit Card
SKU:
41686
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; inspected and appears in good condition.
Country/Region of Manufacture:
Germany
Form Factor:
Card / Module
Compatible With:
Siemens PBX / PABX Telephone Systems
Interface Type:
Gold-edge card connector (backplane)
Indicators:
PRS, ALMO, ALM1 LED status indicators on faceplate
Date Code:
APR 1 '91
Condition Notes:
Siemens S30810-Q428-X LTUC Card 4980042011-2549 inspected and in good condition. PCB shows normal light wear; card-edge fingers clean; faceplate intact. No visible damage. Please contact us with any questions.
View AllClose

Related Products

Related Products

Siemens LTUC Card S30810-Q428-X front view showing populated green PCB with multiple ICs and edge connector Siemens LTUC Card S30810-Q428-X reverse solder-side view of green PCB
Add to Cart
Quick view

Siemens LTUC Card S30810-Q428-X 4980042011-1476 PBX Telephone System Module

Siemens

$75.00
Was: $150.00
Siemens LTUC Card S30810-Q428-X 4980042011-1476 PBX Telephone System ModuleLine/Trunk Unit Card (LTUC) module for Siemens PBX telephone systems. Processes line and trunk connections on the system...
41687
SKU:
41687
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Siemens
Model:
S30810-Q428-X
MPN:
4980042011-1476
Secondary Model:
S30810-Q428-X
Type:
LTUC Line/Trunk Unit Card — PBX Telephone System Module
SKU:
41687
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; no additional accessories included.
Country/Region of Manufacture:
Germany
Form Factor:
PCB Card / Module
Compatible With:
Siemens PBX / EWSD / HICOM telephone systems
Interface Type:
PCB Edge Connector
Front Panel Indicators:
PRS, ALM0, ALM1 LED indicators
ICs / Components:
Maxim 54ACT, AM26LS33PC logic ICs visible on board
Condition Notes:
Siemens LTUC Card S30810-Q428-X (4980042011-1476) inspected and in good used condition. PCB shows normal handling wear; edge connector and front panel faceplate intact. No visible damage or corrosion.

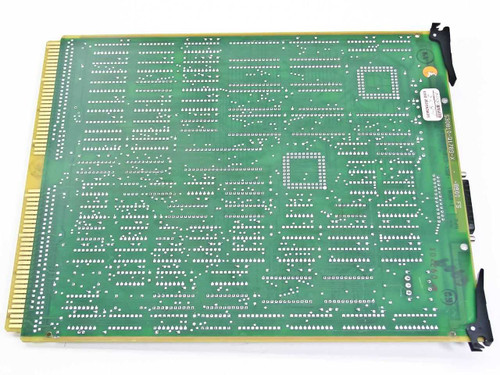

Siemens CIOP Card S30810-Q1789-X — top-side PCB overview showing full component layout and gold card-edge connector Siemens CIOP Card S30810-Q1789-X — solder-side (bottom) of PCB showing trace pattern and rear D-Sub connector bracket
Add to Cart
Quick view

Siemens CIOP Card S30810-Q1789-X 4980042612-3832 PBX Telephone Module

Siemens

$60.00
Was: $125.00
Siemens CIOP Card S30810-Q1789-X 4980042612-3832 PBX Telephone ModuleCIOP (Communication I/O Processor) card module for Siemens PBX and telephone switching systems. Handles communication protocol...
41685
SKU:
41685
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Brand:
Siemens
Model:
S30810-Q1789-X
MPN:
S30810-Q1789-X
Secondary Model:
4980042612-3832
Type:
CIOP PBX Telephone Module Card
SKU:
41685
Condition:
Used – Inspected and in Good Condition
Seller Notes:
Card only; inspected and appears to be in good condition.
Country/Region of Manufacture:
Germany
Form Factor:
Card/Module
Interface Type:
D-Sub connector (front panel)
Compatible With:
Siemens PBX / Telephone Switching Systems
Processor / Main IC:
Intel iP8251A (USART), AMD P8253-5 (timer)
Clock / Oscillator:
32.000 MHz crystal oscillator
LED Indicators:
ST0, ST1, ST2, ST3 (red), ACTV (green)
Front Panel Connector:
D-Sub 25-pin (DB-25) connector
Board Edge Connector:
Gold-finger card edge connector
Key ICs:
SN74LS21N, SN74LS30N, SN74LS25N, SN74LS21N
Condition Notes:
Siemens CIOP Card S30810-Q1789-X inspected and in good condition. PCB shows light normal wear; no visible damage, broken traces, or missing components. Front-panel LEDs and DB-25 connector appear intact.

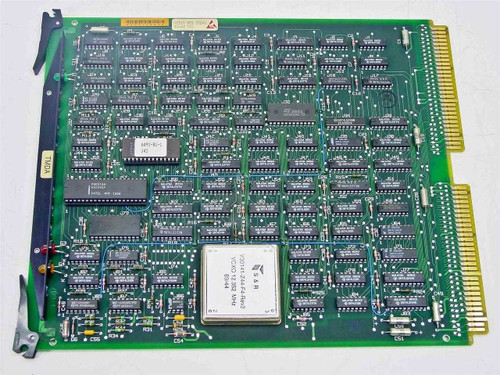

Siemens TMDA Card S30810-Q1748-X — top component side showing PCB with ICs, S&R VCXO oscillator, and gold card-edge connector Siemens TMDA Card S30810-Q1748-X — bottom solder side of PCB showing clean through-hole solder joints and gold edge connector
