Shanghai Honest Gearing 1:1 Ratio Indexing Drive 0.75" Shaft 14-1:1-1-R-0-V5

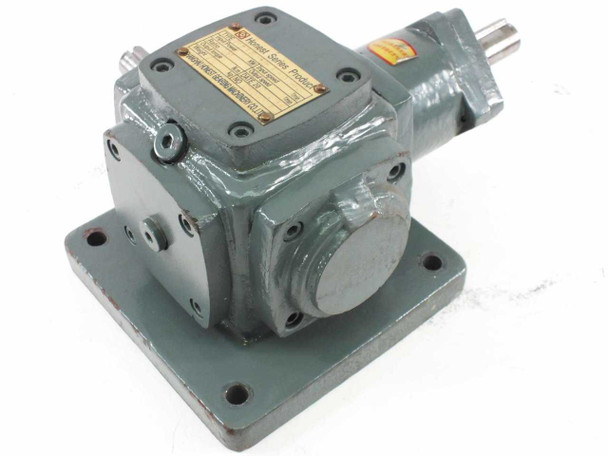

This is a Shanghai Honest Gearing Machinery Co., Ltd. Honest Series right-angle indexing drive with a 1:1 gear ratio and 0.75-inch (19.05 mm) shaft diameter. The unit transmits rotary motion through a 90-degree right-angle bevel gear arrangement, delivering equal input and output speeds at the same torque level — a straightforward 1:1 power transfer in a compact, flange-mounted cast iron housing. It is built for use in industrial automation, rotary indexing tables, and mechanical power transmission applications.
Specifications & What's Included
- Brand: Shanghai Honest Gearing Machinery Co., Ltd.
- Series: Honest Series Product
- Model / Type: 14-1:1-1-R-0-V5
- Secondary Part Number: 3152522-001B
- Gear Ratio: 1:1
- Shaft Diameter: 0.75 in (19.05 mm) — confirmed by caliper measurement in photos

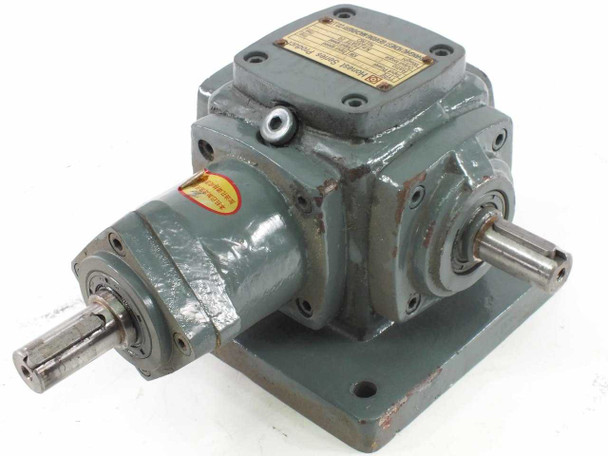

- Shaft Configuration: Right-angle (dual output shafts at 90°)
- Mounting: Foot / base flange mount (4-bolt pattern)
- Housing: Cast iron, painted green
- Date of Manufacture: April 2009 (per nameplate)
- Unit Serial No.: 0904027 (per nameplate)
- Country of Manufacture: China
- Included: Indexing drive unit only — no motor or external accessories
Applications
Right-angle bevel gear indexing drives like this Honest Series unit are commonly used in industrial automation and manufacturing lines for rotary indexing tables, packaging machinery, assembly stations, and conveyor systems where motion must be redirected 90 degrees without a speed or ratio change. A 1:1 ratio drive is specifically chosen when the input and output must run at the same speed — for example, synchronizing tooling or conveying systems that share a common drive line. These compact, foot-mounted gearboxes are standard components in machine tool and material handling applications and are compatible with a wide range of motor and shaft coupling setups. Shanghai Honest Gearing Machinery has produced this Honest Series line for industrial OEM and replacement use, and units like this one are sought for both new machine builds and as replacement parts in existing automation systems.

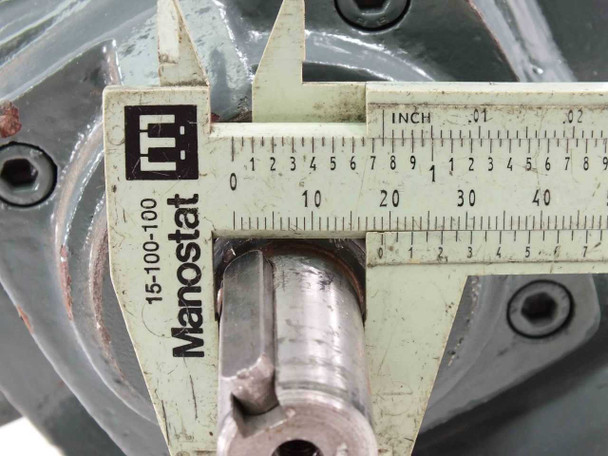

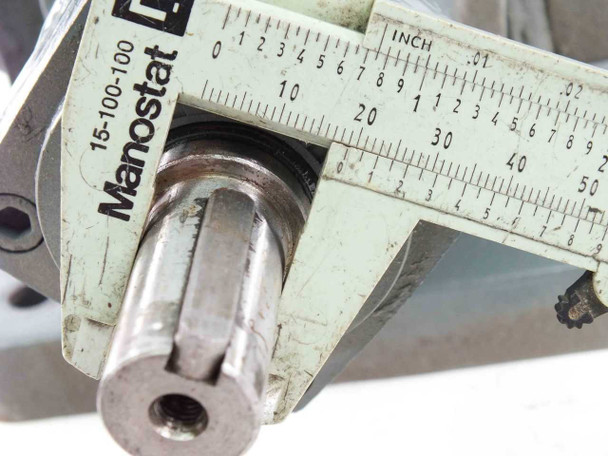

This Shanghai Honest Gearing Honest Series 1:1 Ratio Indexing Drive (model 14-1:1-1-R-0-V5) has been inspected and the shaft rotates smoothly by hand with no binding or roughness detected. The unit is in good used condition overall. The cast iron housing shows light surface wear and minor scuffing consistent with prior industrial use, but there are no cracks, breaks, or major damage visible. The nameplate is present and fully legible. Photos 4 and 5 show the output shaft measured with a caliper, confirming the 0.75-inch diameter. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Shanghai Honest Gearing Machinery Co., Ltd. |
Model: |
14-1:1-1-R-0-V5 |
MPN: |
14-1:1-1-R-0-V5 |
Secondary Model: |
3152522-001B |
SKU: |
51713 |
Type: |
Indexing Drive / Right-Angle Bevel Gearbox |
Series: |
Honest Series |
Ratio: |
1:1 |
Shaft Diameter: |
0.75 in (19.05 mm) |
Shaft Configuration: |
Right-angle, dual output shafts |
Mounting: |
Foot / Base Flange Mount |
Condition: |
Used – Inspected, shaft turns smoothly by hand |
Seller Notes: |
Unit only; no motor or accessories included |
Country/Region of Manufacture: |
China |
Date of Manufacture: |
2009-04 (from nameplate) |
Serial Number / Unit No.: |
0904027 |
Application: |
Rotary indexing, automation, right-angle power transmission |
Condition Notes: |
Shanghai Honest Gearing 1:1 Indexing Drive 14-1:1-1-R-0-V5. Inspected — shaft rotates smoothly by hand, no binding. Good used condition; light surface wear on housing. Nameplate intact. 0.75" shaft confirmed by caliper. |
