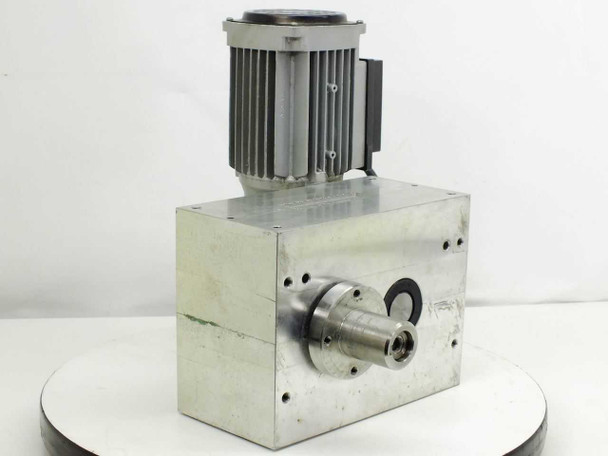

The TaktOMat XP 80 is a parallel shaft cam indexer and speed reduction gearbox used in automated assembly and manufacturing systems. This type of unit accepts continuous rotary input from a drive motor and converts it into precise, repeatable indexed output motion — typically used to advance a rotary table, conveyor, or tooling fixture through fixed angular increments with a dwell period between each step. The unit is mounted with an integrated Sigl GmbH three-phase induction motor (Type D63 A4 B14) driving directly into the indexer gearbox body, forming a compact motor-indexer assembly.

Specifications & What's Included

• Indexer Model: TaktOMat XP 80
• Indexer Type: Parallel shaft cam indexer / speed reduction gearbox
• Motor Brand: Sigl GmbH (83714 Miesbach, Germany)

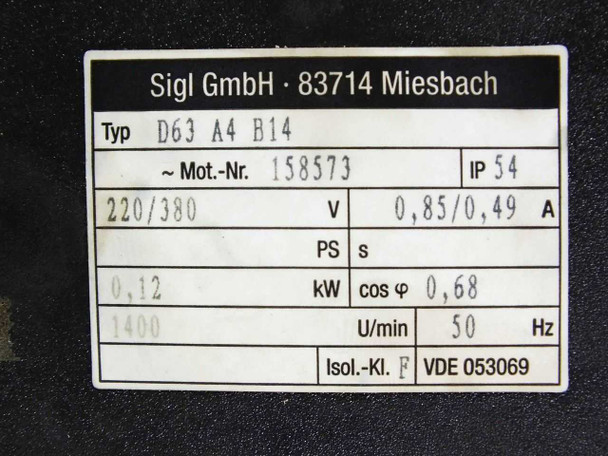

• Motor Type: D63 A4 B14
• Motor Voltage: 220/380 V (dual voltage)
• Motor Power: 0.12 kW
• Motor Current: 0.85 A (220V) / 0.49 A (380V)
• Motor Speed: 1400 RPM
• Motor Frequency: 50 Hz
• Power Factor (cos φ): 0.68
• Enclosure Rating: IP 54
• Insulation Class: F
• Certification: VDE 053069
• Housing: Machined aluminum block construction

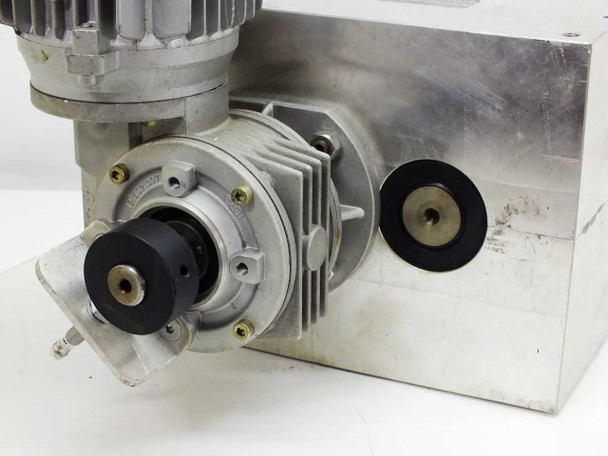

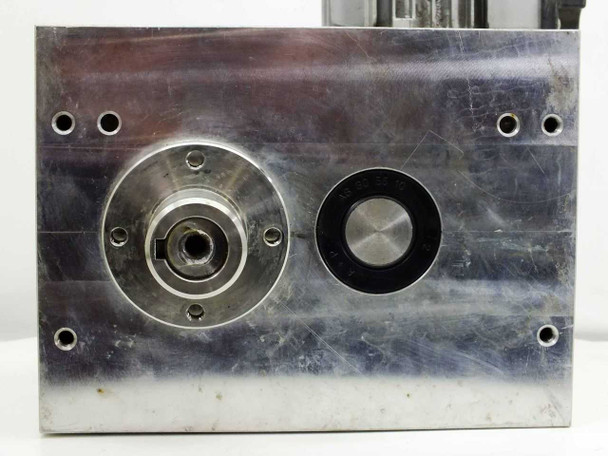

• Output: Primary output shaft hub on face plate; secondary port with seal visible on opposite face
• Motor cable present and intact
