4.5D Oscillating Indexing Drive 6 Position 0.55in Shaft Rotary Index Table Unit

(No reviews yet) Write a Review
SKU:
47131
MPN:
4.5D
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
18.00 LBS
Shipping:
Calculated at Checkout
  • 4.5D oscillating indexing drive front-left angle view showing input shaft, output flange, and embossed 4.5D designation on housing

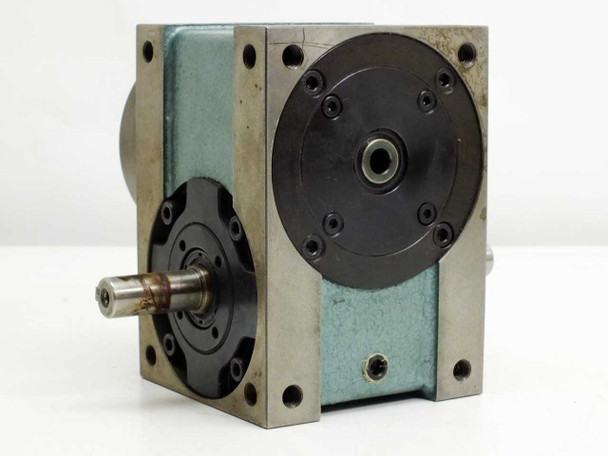

  • 4.5D oscillating indexing drive rear-left angle view showing opposite side of output flange and housing body

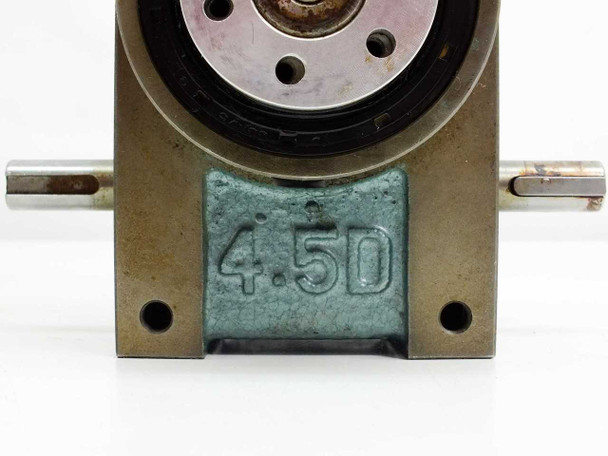

  • 4.5D oscillating indexing drive close-up of embossed 4.5D model designation on lower housing face
  • 4.5D oscillating indexing drive front face view showing output flange with bolt circle and center bore, 4.5D designation below
  • 4.5D oscillating indexing drive side view showing input cam/roller follower mechanism and housing mounting holes
  • Unbranded 4.5D Oscillating Drive - 6 Positions - Shaft Diameter: .55in.
$150.00
Was: $375.00
Current Stock: 3

Sold Out

Description

4.5D Oscillating Indexing Drive 6 Position 0.55in Shaft Rotary Index Table Unit

Oscillating cam indexing drive unit for rotary positioning applications. Provides intermittent 6-position output motion with a 1/6 turn per full input shaft revolution ratio.

Specifications & What's Included

  • Model: 4.5D
  • Number of Positions: 6
  • Index Ratio: 1/6 turn per full input shaft revolution
  • Shaft Diameter: 0.55 in (14 mm approx.)
  • Drive Type: Oscillating Cam Indexing
  • Form Factor: Inline Gearbox / Indexer
  • Drive unit only — motor and accessories not included

Applications

Used in rotary index tables, assembly automation equipment, and manufacturing processes requiring intermittent indexing between work positions.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This 4.5D oscillating indexing drive has been visually inspected and shows typical used surplus wear — light surface patina and minor scuffing on the housing consistent with industrial service. The unit has not been bench-tested at our facility. Please view our photo set and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
4.5D
SKU:
47131
Condition:
Used – Inspected
Seller Notes:
Drive unit only; no motor or accessories included.
Form Factor:
Inline Gearbox / Indexer
Number of Positions:
6
Index Ratio:
1/6 turn per full input shaft revolution
Shaft Diameter:
0.55 in (14 mm approx.)
Drive Type:
Oscillating Cam Indexing Drive
Output Motion:
Intermittent Rotary (6-position)
Application:
Rotary Index Tables, Assembly Automation
Country of Manufacture:
Unknown
Condition Notes:
This 4.5D oscillating indexing drive has been visually inspected and shows typical used surplus wear — light surface patina and minor scuffing on the housing consistent with industrial service. The unit has not been bench-tested at our facility.
View AllClose

Related Products

Related Products

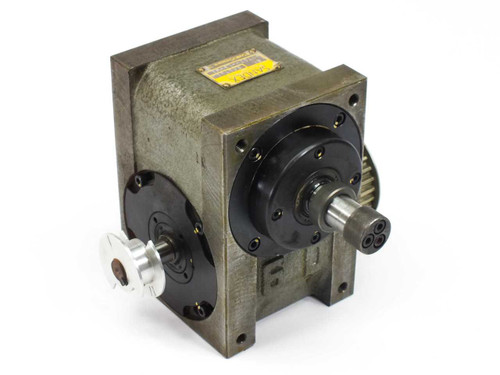

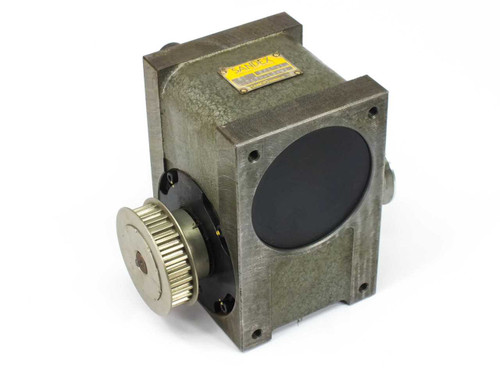

Sankyo Sandex 6E Rotary Index Drive – front-left isometric view showing toothed belt input pulley and cast iron housing Sankyo Sandex 6E Index Drive – rear-right isometric view showing output flange, output shaft, and mounting bolt pattern
