Optical Lab Equipment
Optical lab equipment refers to a variety of tools and machines used in the production and maintenance of eyeglasses, contact lenses, and other optical products. This equipment includes lensometers, lens edgers, frame heaters, and ultrasonic cleaners. Optical lab equipment is essential for ensuring precise measurements, cutting lenses to the correct shape and size, and polishing lenses to achieve optimal clarity. These tools are used by opticians, ophthalmologists, and other eye care professionals to create custom eyewear that meets the unique needs of each patient. Investing in high-quality optical lab equipment is crucial for delivering accurate and reliable optical products.
-

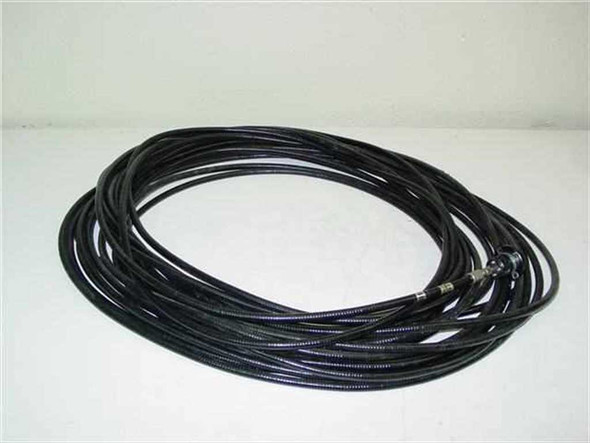

Mitsubishi STU600F Diaguide 80ft Pure Silica Core Fiber Optic Cable 600µm 488nm
Mitsubishi
$275.00Was: $550.00Mitsubishi STU600F Diaguide 80ft Pure Silica Core Fiber Optic Cable 600µm 488nmStep-index silica fiber optic transmission cable designed for laser light delivery and optical testing. Features an AR-coated collimator end fitting and 80 feet of braided...35188- SKU:
- 35188
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 16.00 LBS
- Brand:
- Mitsubishi
- Model:
- STU600F
- MPN:
- STU600F
- Type:
- Fiber Optic Transmission Cable
- SKU:
- 35188
- Seller Notes:
- Includes AR-coated collimator end fitting; 80ft braided cable
- Country/Region of Manufacture:
- Japan
- Series:
- Diaguide ST Series
- Fiber Type:
- Step Index (SI), Pure Silica Core
- Core Diameter:
- 600 µm
- Fiber Diameter (Clad):
- 750 µm
- Cable Length:
- 80 ft (approx. 24 m)
- Wavelength:
- 488 nm
- End Fitting / Connector:

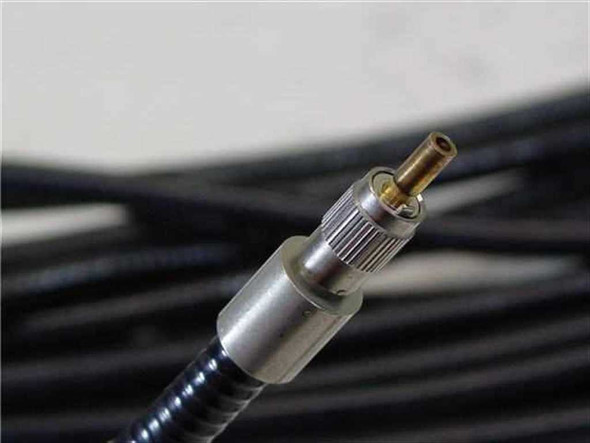

- AR-Coated Collimator (one end); bare ferrule (other end)
- Jacket / Protection:
- Braided protective jacket with metal armor at ends
- Manufacturing Method:
- Modified Rod-in-Tube
- Application / Use Case:
- Laser light delivery, spectroscopy, fluorescence, optical testing
- Condition:
- Used – Inspected and in Good Condition
- Condition Notes:
- Mitsubishi STU600F Diaguide 80ft silica fiber optic cable. Inspected and in good condition. No kinks or folds; light transmission confirmed with 1mW laser and white light during inspection. AR collimator end intact.
$275.00Was: $550.00 -
Stainless Steel Semi-Rotating Ring Stage OD 8.75" ID 5.825" Thick 0.625" Lab
Generic
$250.00Was: $500.00Stainless Steel Semi-Rotating Ring Stage OD 8.75" ID 5.825" Thick 0.625" LabThis is a precision-machined stainless steel semi-rotating ring stage with a large annular form factor. The outer ring is fixed, while the center section rotates approximately 1...32592- SKU:
- 32592
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 7.00 LBS
- Brand:
- Unbranded
- Model:
- Semi-Rotating Ring Stage
- Type:
- Semi-Rotating Positioning Stage
- Material:
- Stainless Steel
- Outer Diameter (OD):
- 8.75 in
- Inner Diameter (ID):
- 5.825 in
- Thickness:
- 0.625 in
- Rotation Range:
- Approximately 1.5 inches of arc travel
- Adjustment Mechanism:
- 8mm thumb screw / knurled adjustment rod
- Stage Configuration:
- Annular ring with semi-rotating center section
- Mounting Holes:
- Multiple mounting holes on outer ring
- Form Factor:
- Ring / Annular
- Application:
- Optical, semiconductor, precision lab positioning
- SKU:
- 32592
- Condition:
- Used – Inspected
- Seller Notes:
- Includes knurled stainless adjustment rod. Surface rust visible on inner race area.
- Condition Notes:
- Stainless steel semi-rotating ring stage inspected and in good used condition. Rotating section moves as intended. Surface rust visible on inner race area — cosmetic. Includes knurled adjustment rod and small black bracket. Under 250 chars.
$250.00Was: $500.00 -
Siecor OFNR Multimode Fiber Optic Patch Cable ST Duplex 62.5/125 5 ft
Siecor
$9.00Was: $17.50Siecor OFNR Multimode Fiber Optic Patch Cable ST Duplex 62.5/125 5 ftThis is a multimode fiber optic patch cable with ST duplex connectors. It connects fiber optic network equipment and was pulled from a working telecommunications environment...32264- SKU:
- 32264
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Siecor
- Model:
- OFNR Multimode Fiber Optic Patch Cable
- Type:
- Fiber Optic Patch Cable
- Connector Type:
- ST Duplex
- Fiber Mode:
- Multimode
- Fiber Core/Cladding:
- 62.5/125 micron
- Cable Rating:
- OFNR (Optical Fiber Nonconductive Riser)
- Cable Length:
- 5 ft
- Jacket Color:
- Orange
- Number of Fibers:
- 2 (Duplex)
- UL Listed:
- Yes
- SKU:
- 32264
- Condition:
- Used – Inspected and Pulled from Working Environment
- Seller Notes:
- Cable only; no additional accessories included.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Siecor OFNR multimode fiber optic patch cable, ST duplex, 5 ft. Inspected and in good used condition. Jacket intact, connectors clean and undamaged. Please contact us with any questions.
$9.00Was: $17.50 -

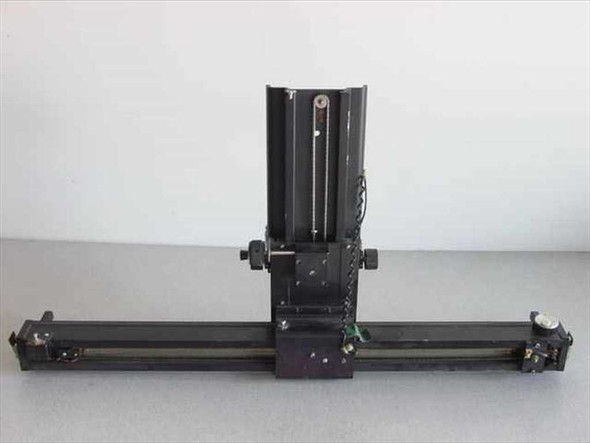

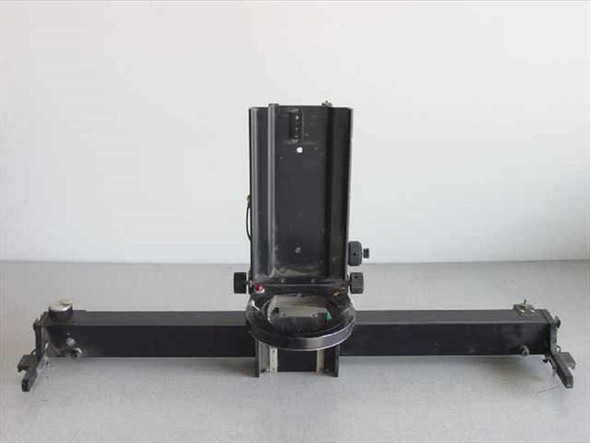

Custom Optical Apparatus Moveable Lens Linear Slide Rail Optical Bench Lab
Generic
$150.00Was: $300.00Custom Optical Apparatus Moveable Lens Linear Slide Rail Optical Bench Lab Custom-built optical apparatus featuring a motorized moveable lens on a linear slide rail. Designed for precise lens positioning and beam alignment in laboratory settings...27680- SKU:
- 27680
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 40.00 LBS
- Brand:
- Unbranded
- Model:
- Custom Optical Apparatus
- Type:
- Optical Apparatus with Moveable Lens / Linear Slide Rail
- SKU:
- 27680
- Condition:
- Used – Inspected
- Form Factor:
- Benchtop / Rail-Mounted
- Lens Movement:
- Linear slide rail with adjustable lens carriage
- Drive Mechanism:
- Chain drive with motorized linear actuator
- Controls:
- Red pushbutton switch, knurled adjustment knobs
- Construction:
- Black anodized aluminum extrusion rail and housing
- Seller Notes:
- Sold as shown. Custom-built optical apparatus with moveable lens on linear rail.
- Application:
- Optical lab, imaging, lens positioning, beam alignment
- Country/Region of Manufacture:
- Unknown
- Condition Notes:
- Custom optical apparatus with moveable lens inspected and in good used condition. Shows surface dust and minor corrosion on one knob collar. Chain drive and wiring appear complete. Contact us with questions.
$150.00Was: $300.00 -
Ealing 35-3441 Bandpass Optical Filter 478.87nm 25.4mm 1" Dia 7.15nm HBW
Ealing
$65.00Was: $125.00Ealing 35-3441 Bandpass Optical Filter 478.87nm 25.4mm 1" Dia 7.15nm HBWDielectric interference bandpass filter designed to isolate the cadmium spectral line at 478.87 nm. Transmits blue light in a narrow band while blocking other wavelengths, with 50%...27400- SKU:
- 27400
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Ealing
- Model:
- 35-3441
- MPN:
- 35-3441-CN1
- Type:
- Visible Bandpass Optical Filter
- SKU:
- 27400
- Filter Type:
- Dielectric Interference Bandpass
- Center Wavelength:
- 478.87 nm
- Half Bandwidth (HBW):
- 7.15 nm
- Peak Transmission:
- 50%
- Diameter:
- 25.4 mm (1 inch)
- Application:
- Cadmium (Cd) spectral line isolation
- Spectral Region:
- Visible (Blue)
- Mount:
- Black anodized ring mount
- Condition:
- Used – Inspected, includes original case and factory test chart
- Seller Notes:
- Includes original Ealing plastic storage case and factory spectral test chart dated 8/21/84
- Country/Region of Manufacture:
- United States
- Compatible With:
- Standard 25.4mm (1") optical filter mounts and holders
- Condition Notes:
- Ealing 35-3441 Visible Bandpass Optical Filter inspected and in good condition. Filter glass clear, no chips or coating damage. Minor wear on ring mount. Includes original Ealing storage case and factory spectral test chart dated 8/21/84.
$65.00Was: $125.00 -
Ealing Corp 35-3961 Bandpass Filter 649.6nm Deep Red 10.6nm FWHM 59%T
Ealing Corp
$50.00Was: $100.00Ealing Corp 35-3961 Bandpass Filter 649.6nm Deep Red 10.6nm FWHM 59%TDielectric bandpass filter designed to isolate deep red wavelengths at 649.6nm. Passes a narrow spectral band of 10.6nm with 59% peak transmission, blocking out-of-band light through...27329- SKU:
- 27329
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Ealing Corp
- Model:
- 35-3961
- MPN:
- 35-3961-5
- Type:
- Dielectric Bandpass Filter
- SKU:
- 27329
- Center Wavelength:
- 649.6 nm
- Bandwidth (FWHM):
- 10.6 nm
- Peak Transmission:
- 59%
- Spectral Region:
- Deep Red / Visible
- Filter Construction:
- Dielectric (Interference)
- Substrate / Mount:
- Black anodized ring mount
- Date of Manufacture:
- March 9, 1984
- QC Instrument:
- Cary 14 spectrophotometer
- Condition:
- Used – Inspected, Good Condition
- Seller Notes:

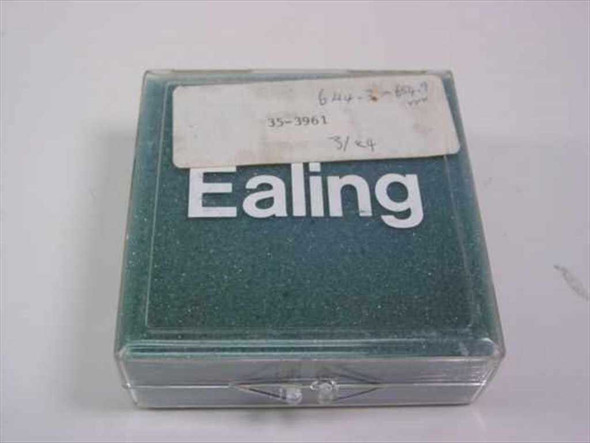

- Includes original Ealing Corp factory QC test chart dated 3/9/84
- Country/Region of Manufacture:
- United States
- Application:
- Spectroscopy, fluorescence, laser line isolation, photometry
- Compatible With:
- Spectrophotometers, fluorimeters, optical benches, laser systems
- Condition Notes:

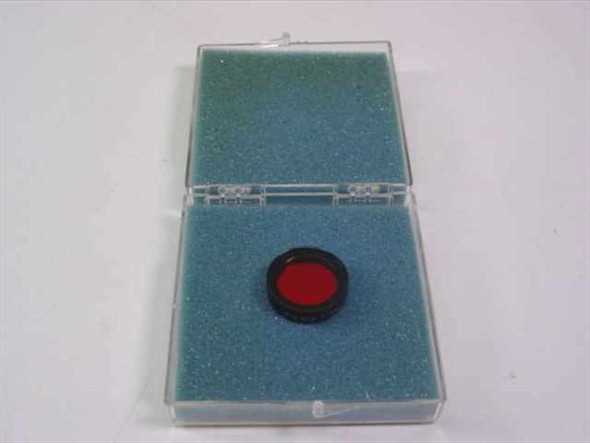

- Ealing Corp 35-3961 649.6nm deep red bandpass filter inspected and in good condition. Filter element clean, no visible damage. Includes original clamshell case and factory QC test chart dated 3/9/84. Under 250 chars.
$50.00Was: $100.00 -
Custom Optical Stage Assembly w/ 2x Yellow LED Indicator Lights & ON/OFF Switch
Unbranded
$225.00Was: $450.00Custom Optical Stage Assembly w/ 2x Yellow LED Indicator Lights & ON/OFF SwitchMulti-axis optical positioning stage designed for benchtop laboratory use. Features motorized or manual control across X, Y, and tilt/rotation axes with four circular...26869- SKU:
- 26869
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 8.00 LBS
- Brand:
- Unbranded
- Model:
- Custom Stage Assembly
- Type:
- Optical Stage / Positioning Assembly
- SKU:
- 26869
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Includes external AC power adapter with ON/OFF switch inline
- Form Factor:
- Benchtop / Freestanding
- Number of Axes:
- Multi-axis (X, Y, tilt/rotation)
- Indicator Lights:
- 2x Yellow LED
- Power Switch:
- Inline ON/OFF switch on power cord
- Apertures / Optical Mounts:
- 4x circular apertures / optical mount cutouts
- Construction Material:
- Anodized aluminum / black-coated metal
- Application / Use Case:
- Optical alignment, lab bench optical assembly
- Compatible With:
- Optical bench systems, laser alignment setups
- Includes:
- External AC power adapter, inline ON/OFF switch
- Condition Notes:
- Custom Optical Stage Assembly inspected and in good used condition. Powers on; both yellow LED indicator lights confirmed working. Minor surface wear from prior lab use. Includes external power adapter and ON/OFF switch.
$225.00Was: $450.00 -
Newport ORION-CM 3-Axis Single Mode Fiber Alignment System Controller GPIB
Newport
$450.00Was: $900.00Newport ORION-CM 3-Axis Single Mode Fiber Alignment System Controller GPIB Benchtop controller for single-mode fiber optic alignment and coupling applications. Operates three motorized axes (X, Y, Z) via GPIB interface and includes dither module...17090- SKU:
- 17090
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 20.00 LBS
- Brand:
- Newport
- Model:
- ORION-CM
- MPN:
- ORION-CM
- Type:
- 3-Axis Single Mode Fiber Alignment System Controller
- SKU:
- 17090
- Condition:
- Used – Pulled from Working Environment
- Number of Axes:
- 3 (X, Y, Z)
- Axis Outputs:
- X-axis, Y-axis, Z-axis, Dither Module
- Interface:
- GPIB
- Power Meter Input:
- Detector input with auto/manual range
- Power Level Display Units:
- nA, uA, mA, nW, uW, mW, dBm, nm
- Photo Current Meter:
- Bar graph, 10^-9 to 10^-2 A range

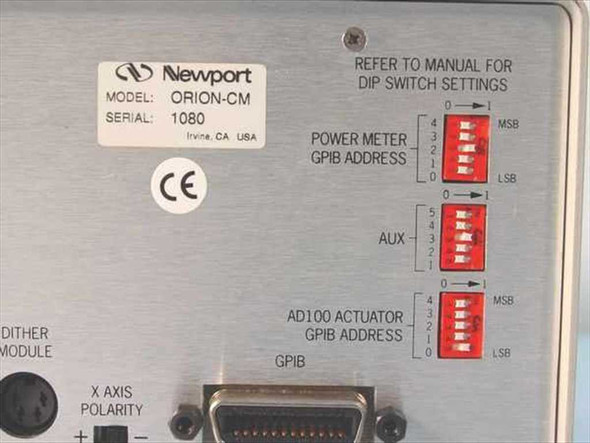

- GPIB Addresses:
- Power Meter, AUX, AD100 Actuator (DIP switch)
- Compatible Actuator:
- Newport AD100
- Power Requirements:
- 90–120V or 200–240V AC, 50/60Hz
- Rear Connectors:
- X, Y, Z axis DIN, Dither Module DIN, GPIB
- Form Factor:
- Benchtop
- Country/Region of Manufacture:
- United States (Irvine, CA)
- Certifications:
- CE
- Application:
- Single-mode fiber optic alignment and coupling
- Seller Notes:
- Unit only; pulled from a working environment. No accessories included.
- Condition Notes:
- Newport ORION-CM Fiber Alignment Controller, used, pulled from a working environment where it was in active use and functional. Inspected; good condition with normal cosmetic wear and some front label scuffing. GPIB and axis connectors intact.
$450.00Was: $900.00
