Description
Scientific Atlanta 7300 Wideband BPSK Receiver 243990 Down Converter FEC Decoder
Wideband BPSK satellite receiver designed for demodulation and decoding of binary phase shift keying modulated signals. Rackmount chassis unit containing integrated down converter, FEC decoder, and supporting modules for satellite communications applications.
Specifications & What's Included

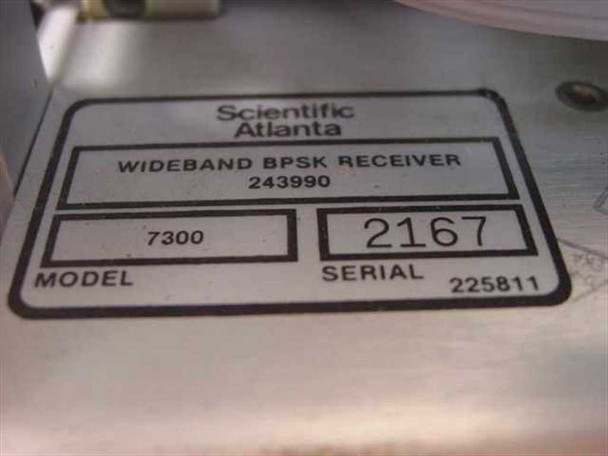

- Model: Scientific Atlanta 7300 (MPN 243990)
- Type: Wideband BPSK Satellite Receiver

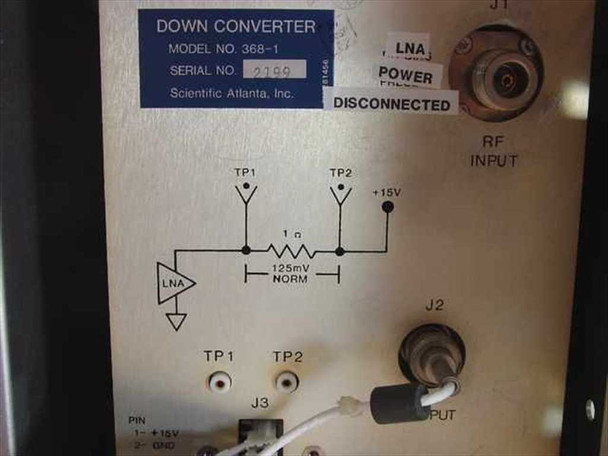

- Down Converter: Scientific Atlanta 368-1 with SMA RF input

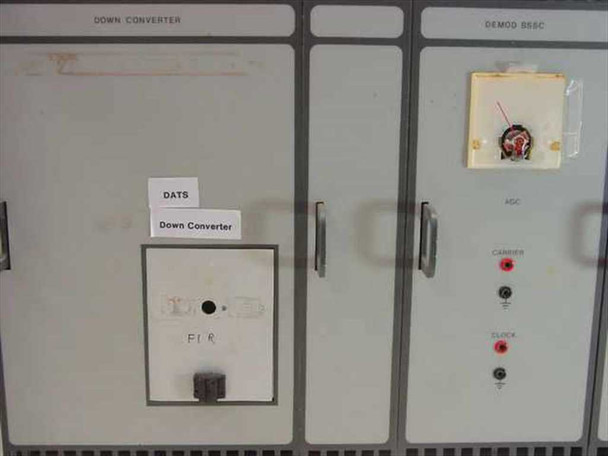

- Modules: Power Supply, Down Converter, FEC Decoder, DEMOD, BSSC
- Power Supply Outputs: +15V, -15V, +5V, GND

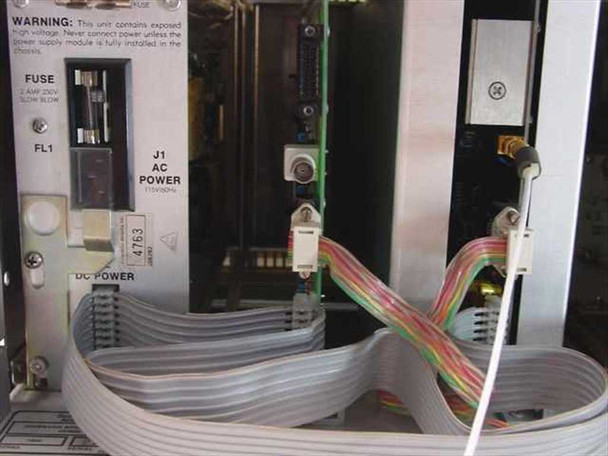

- AC Input: 115V/230V, 50/60Hz; 2.5A 250V slow-blow fuse
- Form Factor: Rackmount chassis
Applications
Used in satellite communications systems for receiving and processing wideband BPSK-modulated signals. Common in telecom infrastructure and broadcast satellite reception where FEC decoding and down-conversion of RF signals are required. Typically integrated into larger satellite ground stations and telecom receiver chains.
Condition: For Parts or Not Working
This Scientific Atlanta 7300 Wideband BPSK Receiver (P/N 243990) is being sold as-is for parts or repair. We have no way to test its functions, so no functionality can be guaranteed. The chassis appears complete and includes the Power Supply, Down Converter (Model 368-1), FEC Decoder, DEMOD, and BSSC boards. The exterior shows age-appropriate wear — the panels are generally clean with some surface soiling and tape/label residue visible on module doors. Internal ribbon cables are intact and connected. The RF input connector (SMA) and AC power input are present. Please view our photo set and contact us if you have any questions.
This Scientific Atlanta 7300 Wideband BPSK Receiver (P/N 243990) is being sold as-is for parts or repair. We have no way to test its functions, so no functionality can be guaranteed. The chassis appears complete and includes the Power Supply, Down Converter (Model 368-1), FEC Decoder, DEMOD, and BSSC boards. The exterior shows age-appropriate wear — the panels are generally clean with some surface soiling and tape/label residue visible on module doors. Internal ribbon cables are intact and connected. The RF input connector (SMA) and AC power input are present. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Scientific Atlanta |
Model: |
7300 |
MPN: |
243990 |
Secondary Model: |
Down Converter Model 368-1 |
SKU: |
31563 |
Type: |
Wideband BPSK Satellite Receiver |
Condition: |
As-Is / For Parts or Not Working |
Form Factor: |
Rackmount Chassis |
Modulation Type: |
BPSK (Binary Phase Shift Keying) |
Included Modules: |
Power Supply, Down Converter, FEC Decoder, DEMOD, BSSC |
Down Converter Model: |
Scientific Atlanta 368-1 |
RF Input Connector: |
SMA (J1 RF Input on Down Converter) |
Power Supply Outputs: |
+15V, -15V, +5V, GND |
AC Power Input: |
115V/230V, 50/60Hz (J1 AC Power) |
Fuse Rating: |
2.5A 250V Slow Blow |
Seller Notes: |
Includes Power Supply, Down Converter (368-1), FEC Decoder, DEMOD, and BSSC boards. Sold as-is. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Scientific Atlanta 7300 Wideband BPSK Receiver (243990) sold as-is for parts or repair. No testing performed; functionality not guaranteed. Appears complete with Power Supply, Down Converter (368-1), FEC Decoder, DEMOD, and BSSC boards. |
