Description
Rittal SZ 2586 Door-Operated Switch 230VAC 6A / 24VDC 10A IEC 947-5-1 IP40
The Rittal SZ 2586 is a door-operated position switch designed to mount on the inside of an electrical enclosure door or panel. When the door is opened, the switch actuates automatically, triggering a control signal — commonly used to cut power to interior components, activate interior lighting, or signal a control system that the enclosure is open. It carries one normally open (NO) and one normally closed (NC) contact, allowing it to serve both interlock and signaling functions.
Specifications & What's Included
- Model: Rittal SZ 2586
- Type: Door-operated position switch
- AC Rating: AC-15, 230V, 6A
- DC Rating: DC-13, 24V DC, 10A
- Rated Insulation Voltage (Ue): 500V
- Enclosure Protection: IP40
- Contact Configuration: 1 NO (terminals 13–14), 1 NC (terminals 21–22)
- Pilot Duty Rating: A300, Q300
- Standards: IEC 947-5-1, VDE 0660
- Certifications: UL Listed (165C IND. CONT. EQ., File 12730), CE marked
- Country of Manufacture: Germany
- Actuator: Spring-loaded plunger with pre-wired leads (pink/red wires visible)
- Includes: Switch unit only
Applications
Door-operated switches like the Rittal SZ 2586 are standard components in industrial control panels and electrical enclosures. They are used to interlock enclosure doors so that hazardous internal circuits are de-energized when the panel is opened for maintenance, meeting safety requirements common in machine control and power distribution installations. They also serve as door-open indicators in control and monitoring systems, triggering alarms or status signals when an enclosure is accessed. The SZ 2586 is part of Rittal's SZ accessory line, designed to work with Rittal's TS, AE, and similar enclosure ranges, though the standard IEC 947-5-1 footprint makes it compatible with a wide range of industrial enclosures from other manufacturers as well. These switches are widely used in manufacturing, process control, and building automation environments where enclosure access monitoring is required.

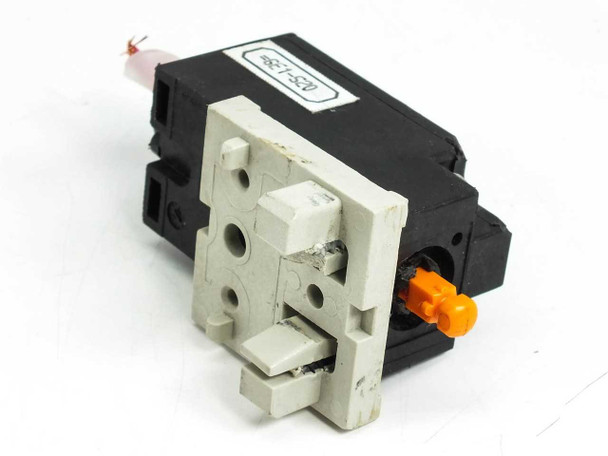

This Rittal SZ 2586 door-operated switch has been inspected and is in good used condition. It was pulled from a working environment where it was in active service. The switch body and contacts are intact; however, some of the plastic mounting clips are cracked, as shown in the photos. The electrical connections, actuator plunger, and terminal block all appear undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Rittal |
Model: |
SZ 2586 |
MPN: |
SZ 2586 |
Type: |
Door-Operated Switch |
SKU: |
46574 |
Voltage Rating AC: |
230V AC |
Voltage Rating DC: |
24V DC |
Current Rating AC: |
6A (AC-15) |
Current Rating DC: |
10A (DC-13) |
Rated Insulation Voltage: |
500V |
Enclosure Rating: |
IP40 |
Standards: |
IEC 947-5-1, VDE 0660 |
Certifications: |
UL Listed (165C IND. CONT. EQ.), CE |
Pilot Duty Rating: |
A300 Q300 |
Contact Configuration: |
1 NO (13-14), 1 NC (21-22) |
Country/Region of Manufacture: |
Germany |
Compatible With: |
Rittal enclosures and control panels |
Seller Notes: |
Some plastic mounting clips are cracked; switch body intact. |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Rittal SZ 2586 door-operated switch pulled from a working environment. Good used condition — switch body and contacts intact. Some plastic mounting clips are cracked. Please see photos. |
