null
Sola

Sola SDN 10-24-100P 24VDC 10A DIN Rail Power Supply Single Phase 115/230VAC

(No reviews yet) Write a Review
SKU:
49493
MPN:
SDN 10-24-100P
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
4.00 LBS
Shipping:
Calculated at Checkout
  • Sola SDN 10-24-100P DIN rail power supply – front panel showing brand label, OK LED, Single/Parallel switch, and UL/CE markings

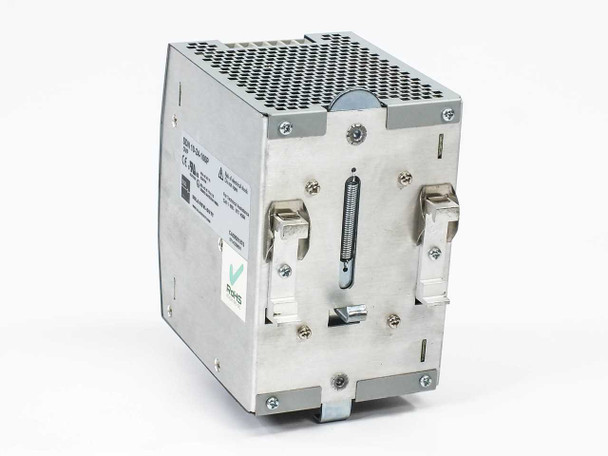

  • Sola SDN 10-24-100P – right-side and rear view showing DIN rail mounting clips and ventilated top

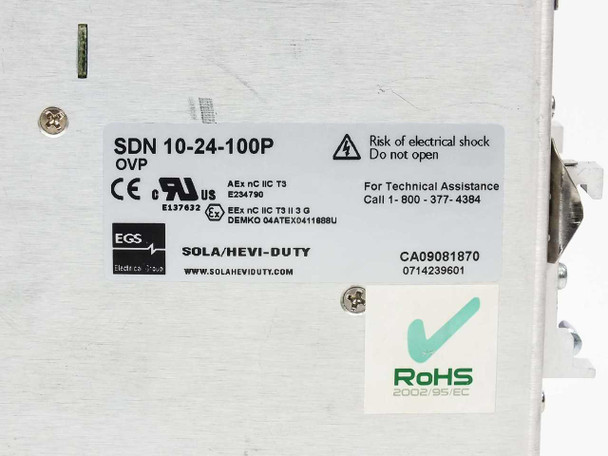

  • Sola SDN 10-24-100P – label closeup showing model number, OVP designation, hazardous location certifications, RoHS mark, and Sola/Hevi-Duty branding

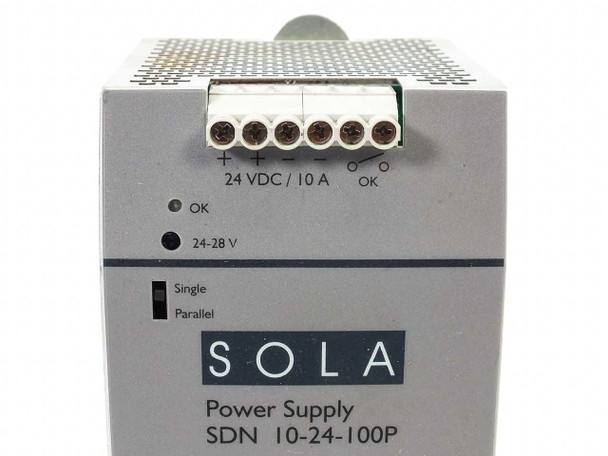

  • Sola SDN 10-24-100P – top view showing terminal block with 24VDC / 10A output terminals and DC OK contacts labeled

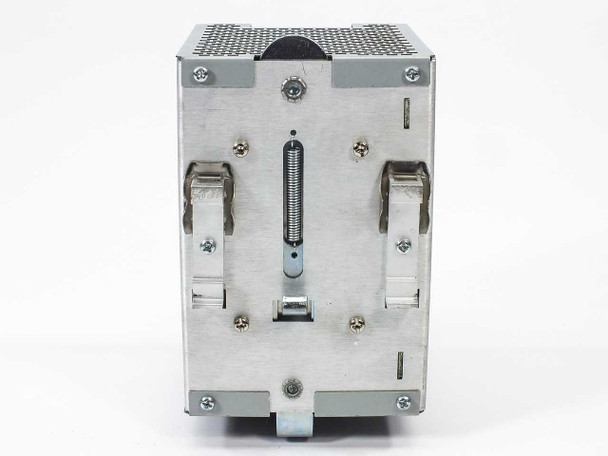

  • Sola SDN 10-24-100P – bottom view showing DIN rail mounting spring clip mechanism
$95.00
Was: $200.00
Current Stock: 1

Sold Out

Description

Sola SDN 10-24-100P 24VDC 10A DIN Rail Power Supply Single Phase 115/230VAC

DIN rail mounted switching power supply for industrial control and telecom applications. Converts single-phase 115/230 VAC input to regulated 24 VDC output at 10A capacity.

Specifications & What's Included

  • Output: 24 VDC, 10A (adjustable 24–28V range)
  • Input: 115/230 VAC, 50/60 Hz, auto-select
  • Features: DC OK signal, parallel capability, overvoltage protection
  • Certifications: UL, CE, SEMI F47 sag immunity, AEx/EEx hazardous location rated
  • RoHS 2002/95/EC compliant
  • Unit only; no accessories included

Applications

Typical use in industrial control panels, PLC systems, and telecom equipment requiring regulated 24 VDC. Commonly deployed in factory automation, building management systems, and distributed telecom nodes. Hazardous location certification supports installation in classified environments.

Condition: Used
This Sola SDN 10-24-100P 24VDC DIN Rail Power Supply has been tested at our facility and confirmed in working order. The unit powers on, the green OK LED illuminates, and 24 VDC output is present on both output terminals. The enclosure shows typical light wear consistent with prior industrial use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Sola
Model:
SDN 10-24-100P
MPN:
SDN 10-24-100P
Type:
DIN Rail Power Supply
SKU:
49493
Series:
SDN-P
Output Voltage:
24 VDC
Output Current:
10 A
Output Voltage Range:
24-28 V (adjustable)
Input Voltage:
115/230 VAC (auto-select)
Input Current:
3.0/2.0 A
Frequency:
50/60 Hz
Phase:
Single Phase
Form Factor:
DIN Rail Mount
Features:
DC OK Signal, Parallel Capability, OVP
Standards Compliance:
SEMI F47 Sag Immunity, RoHS 2002/95/EC
Certifications:
UL, CE, EGS, AEx nC IIC T3, EEx nC IIC T3 II 3G
Hazardous Location Rating:
AEx nC IIC T3 / DEMKO 04ATEX0411888U
RoHS Compliant:
Yes
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only; no accessories included
Country/Region of Manufacture:
United States
Condition Notes:
Sola SDN 10-24-100P 24VDC 10A DIN rail power supply tested and confirmed working. Powers on, OK LED illuminates, 24 VDC output verified on both terminals. Light wear from prior industrial use.
