Description
Research Inc 5306-5B 1000W StripIR Infrared Heater 5" Lamp Housing 240VAC
The Research Inc 5306-5B is a 1000-watt StripIR infrared lamp and housing assembly designed to deliver focused, even infrared heat across a 1.5-inch-wide strip. The unit pairs a quartz infrared lamp element with a formed aluminum reflector housing that concentrates output for precise, controlled heating. It is water-cooled via 1/8 NPT ports and ships with the associated tubing and brass push-in fittings.
Specifications & What's Included
- Housing P/N: 5306B-05-1000-00-00
- Lamp P/N: LampIR 103390-002
- Housing assembly P/N (label): 063274-001 Rev D
- Power rating: 1000 Watts
- Input voltage: 240 VAC
- Current draw: 8.4 Amps
- Phase: Single Phase (Phase-1)
- Watt density: 240 watts per inch
- Heated strip width: 1.5 inches
- Lighted lamp length: 5.0 inches
- Overall bulb length: 8.7 inches
- Overall housing dimensions: 9.5" x 4.5" x 1.5"
- Cooling: Water-cooled via 1/8 NPT ports (two ports, red-capped)
- Power leads: Braided shielded cable with strain relief fitting

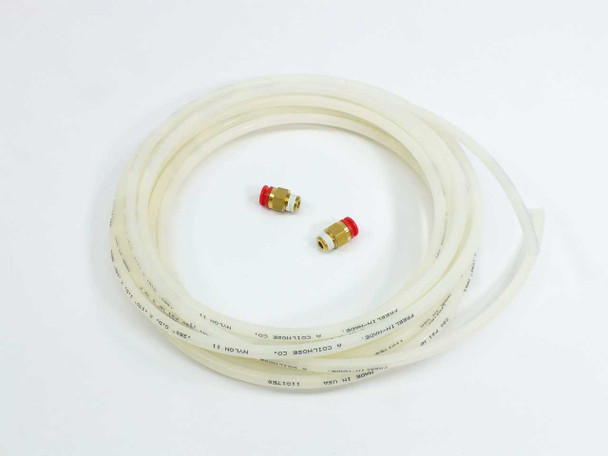

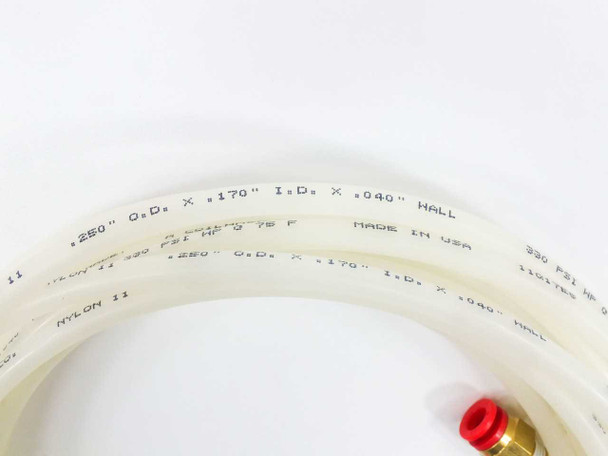

- Includes: Water cooling tubing (Nylon 11, 0.250" OD x 0.170" ID x 0.040" wall, 330 PSI rated) and two brass push-in fittings
- Lamp replacement contact: Research Inc — (952) 949-9009
Applications
Research Inc's StripIR series are focused infrared heating modules used throughout industrial manufacturing for precision process heating. The narrow, strip-focused output makes them well suited for applications where heat must be applied to a defined linear zone rather than a broad area — common uses include adhesive curing, ink and coating drying, film laminating, label activation, and precision thermal bonding. Water cooling keeps the housing at safe operating temperatures during continuous-duty cycles and allows the unit to be mounted close to process material without overheating surrounding structures. Research Inc (also known as Research, Incorporated) has been a manufacturer of infrared process heating equipment for industrial and semiconductor applications for decades; the StripIR product line is a standard tool in web-process and conveyor-based heating setups. Units of this type are still in active use in a wide range of industrial and specialty manufacturing environments.
This Research Inc 5306-5B StripIR 1000W infrared lamp and housing has been inspected and is in good used condition. It was pulled from a working environment where it was actively in use. The aluminum housing shows normal wear consistent with industrial service use. The quartz lamp element is intact and visible through the reflector opening. Both red-capped 1/8 NPT water cooling ports are present and undamaged. The braided power lead cable is intact with no visible damage. This unit includes the water cooling tubing and two brass push-in fittings, which are bagged separately and appear to be in good condition. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Research Inc |
Model: |
5306-5B |
MPN: |
5306B-05-1000-00-00 |
Secondary Model: |
103390-002 |
SKU: |
49119 |
Type: |
Infrared Strip Lamp and Housing Assembly |
Power Rating: |
1000 Watts |
Voltage Rating: |
240 VAC |
Current Rating: |
8.4 Amps |
Phase: |
Single Phase |
Watt Density: |
240 Watts per Inch |
Lighted Lamp Length: |
5.0 inches |
Overall Bulb Length: |
8.7 inches |
Overall Dimensions: |
9.5" x 4.5" x 1.5" |
Heating Width (Strip): |
1.5 inches |
Cooling Method: |
Water Cooled — 1/8 NPT ports |
Application: |
Curing, Drying, Precision Infrared Heating |
Lamp Part Number: |
LampIR 103390-002 |
Housing Part Number: |
5306B-05-1000-00-00 |
Included Accessories: |
Water cooling tubing and brass plumbing fittings |
Tubing Specification: |
Nylon 11, 0.250" OD x 0.170" ID x 0.040" wall |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes water cooling tubing and brass push-in fittings |
Condition Notes: |
Research Inc 5306-5B StripIR 1000W infrared lamp housing inspected and in good used condition. Pulled from a working environment where it was actively in use. Includes water cooling tubing and brass fittings. |
