Description
Research Inc 103390-002 1000W StripIR Infrared Lamp Housing 5306-5B 240VAC

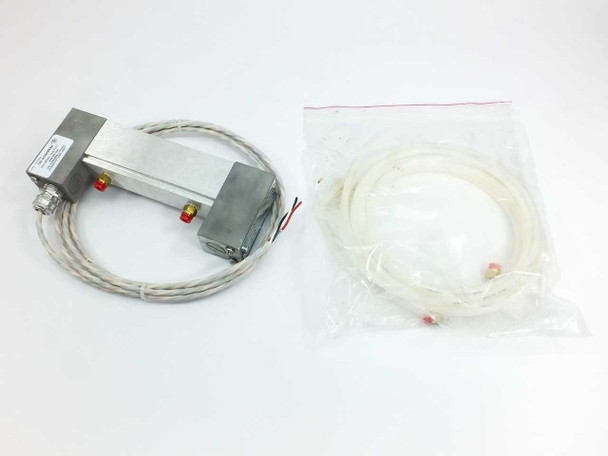

1000-watt infrared strip heating lamp assembly with water-cooled housing. Designed for high-density strip heating applications requiring precision temperature control and uniform heat distribution across a narrow band.
Specifications & What's Included
- Model: 5306-5B | MPN: 103390-002
- Power: 1000W, 240VAC, single phase, 8.4A
- Watt Density: 240 watts per inch
- Heated Strip Width: 1.5 inches

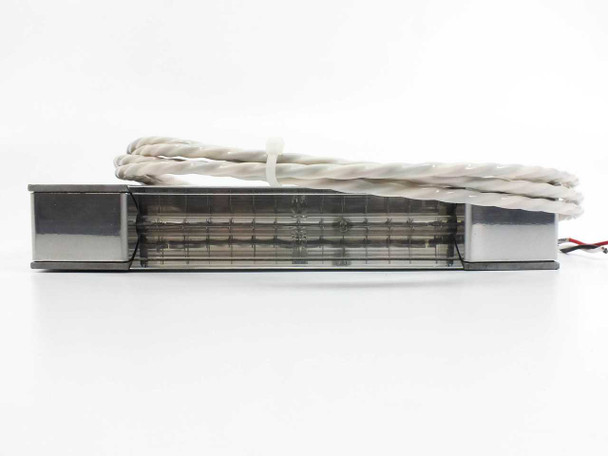

- Lighted Bulb Length: 5.0 inches | Overall: 8.7 inches
- Housing Dimensions: 9.5" x 4.5" x 1.5"
- Water Cooling: 1/8 NPT ports

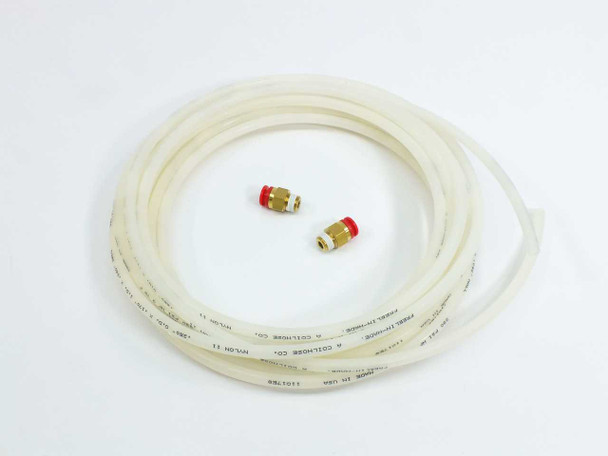

- Includes water tubing and brass plumbing fittings
Applications
StripIR lamps are used for curing, drying, and precision heating in industrial processes. Common applications include thin-film curing, polymer processing, label and decal drying, and localized heat treatment. The water-cooled design supports continuous operation in manufacturing environments.
Condition: Open Box
This Research Inc 103390-002 StripIR 1000W Infrared Lamp and Housing is new from the manufacturer. It is open box — the original packaging has been opened or is no longer present. The unit may have been stored for an extended period and could potentially be past its manufacturer's expiration date. The lamp housing and included water cooling tubing and fittings appear to be in clean, unused condition with no signs of prior installation or use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Research Inc 103390-002 StripIR 1000W Infrared Lamp and Housing is new from the manufacturer. It is open box — the original packaging has been opened or is no longer present. The unit may have been stored for an extended period and could potentially be past its manufacturer's expiration date. The lamp housing and included water cooling tubing and fittings appear to be in clean, unused condition with no signs of prior installation or use. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Research Inc |
Model: |
5306-5B |
MPN: |
103390-002 |
Secondary Model: |
5306B-05-1000-00-00 |
Type: |
Infrared Heating Lamp and Housing |
SKU: |
49117 |
Lamp Part Number: |
103390-002 |
Housing Part Number: |
5306B-05-1000-00-00 |
Power Rating: |
1000 Watts |
Voltage: |
240 VAC |
Current Rating: |
8.4 Amps |
Phase: |
Single Phase |
Watt Density: |
240 watts per inch |
Lighted Bulb Length: |
5.0 inches |
Overall Bulb Length: |
8.7 inches |
Overall Dimensions: |
9.5" x 4.5" x 1.5" |
Heat Distribution Width: |
1.5 inch strip |
Cooling Method: |
Water Cooled (1/8 NPT ports) |
Cooling Port Size: |
1/8 NPT |
Application: |
Curing, Drying, Precision Strip Heating |
Hardware Revision: |
Rev D |
Seller Notes: |
Includes water cooling tubing and brass plumbing fittings (Nylon 11, 0.250" OD x 0.170" ID) |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Research Inc 103390-002 StripIR 1000W infrared lamp and housing. New from manufacturer, open box — original packaging opened or missing. May have been stored long-term or past expiration date. Includes water cooling tubing and fittings. |
