Research Inc
-
Research Inc StripIR 5306-05-1000-00-00 Infrared Heating Lamp Housing 1000W 240V
Research Inc
$275.00Was: $550.00Research Inc StripIR 5306-05-1000-00-00 Infrared Heating Lamp Housing 1000W 240VWater-cooled infrared heating lamp assembly from Research Inc's StripIR series. Delivers 1000 watts of focused radiant...48970- SKU:
- 48970
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 3.00 LBS
- Brand:
- Research Inc
- Model:
- 5306-05-1000-00-00
- MPN:
- 5306-05-1000-00-00
- Secondary Model:
- 103390-002
- SKU:
- 48970
- Type:
- Infrared Heating Lamp / Housing Assembly
- Series:
- StripIR
- Lamp Part Number:
- LampIR 103390-002
- Power Rating:
- 1000 Watts
- Voltage:
- 240 VAC
- Current Rating:
- 8.4 Amps
- Phase:
- Single Phase
- Watt Density:
- 240 watts per inch
- Overall Bulb Length:
- 8.7 inches
- Lighted Bulb Length:
- 5.0 inches
- Heated Strip Width:
- 1.5 inches
- Overall Dimensions:
- 9.5 x 4.5 x 1.5 inches
- Cooling Method:
- Water Cooled
- Water Connection:
- 1/8 NPT ports
- Application:
- Curing, Drying, Precision Infrared Heating
- What's Included:
- Lamp/housing assembly, water cooling tubing and plumbing fittings
- Condition:
- New
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Research Inc StripIR 5306-05-1000-00-00 infrared lamp/housing is new and unused. Lamp element is clean and intact. Includes water cooling tubing and plumbing fittings in sealed bag.
$275.00Was: $550.00 -
Research Inc 8300890 Thermal Printer Module 25-Pin Serial 115/230VAC KD61270-001
Research Inc
$35.00Was: $70.00Research Inc 8300890 Thermal Printer Module 25-Pin Serial 115/230VAC KD61270-001Thermal printer module designed for serial communication in industrial and telecom equipment. Accepts 25-pin DB25...26694- SKU:
- 26694
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 8.00 LBS
- Brand:
- Research Inc
- Model:
- 8300890
- MPN:
- 8300890
- Secondary Model:
- KD61270-001
- Type:
- Thermal Printer Module
- SKU:
- 26694
- Interface Type:
- 25-Pin Serial (DB25)
- Connector Type:
- 25-Pin DB25 Serial Input
- Power Requirements:
- 115/230 VAC, 50-60 Hz
- Fuse Rating:
- 115V: 1/4A; 230V: 1/8A
- Line Select:
- 115V / 230V switchable
- Form Factor:
- Benchtop / Enclosed Module
- Enclosure:
- Blue powder-coated steel enclosure
- Paper Type:
- Thermal roll paper
- Assembly Number:
- KD61270-001
- Country/Region of Manufacture:
- United States
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is for parts or repair. Paper roll visible. No functionality guarantee.
- Condition Notes:
- Research Inc 8300890 Thermal Printer Module sold as-is for parts or repair. Not tested, no functionality guaranteed. Enclosure intact, paper roll present, rear panel and connectors appear complete. Please view photos and contact us with questions.
$35.00Was: $70.00 -

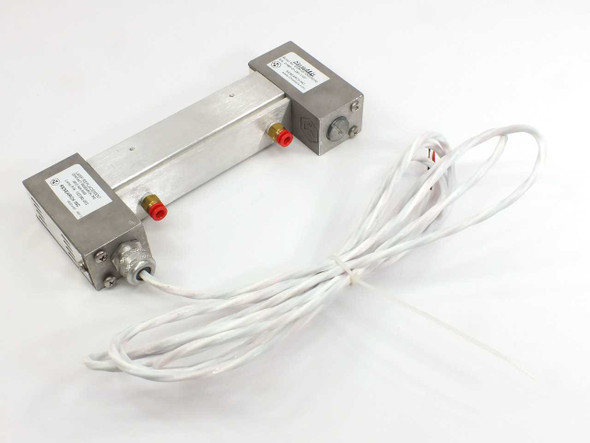

Research Inc 103390-002 1000W StripIR Infrared Lamp Housing 5306-5B 240VAC
Research Inc
$150.00Was: $300.00Research Inc 103390-002 1000W StripIR Infrared Lamp Housing 5306-5B 240VAC1000-watt infrared strip heating lamp assembly with water-cooled housing. Designed for high-density strip heating...49117- SKU:
- 49117
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Research Inc
- Model:
- 5306-5B
- MPN:
- 103390-002
- Secondary Model:
- 5306B-05-1000-00-00
- Type:
- Infrared Heating Lamp and Housing
- SKU:
- 49117
- Lamp Part Number:
- 103390-002
- Housing Part Number:
- 5306B-05-1000-00-00
- Power Rating:
- 1000 Watts
- Voltage:
- 240 VAC
- Current Rating:
- 8.4 Amps
- Phase:
- Single Phase
- Watt Density:
- 240 watts per inch
- Lighted Bulb Length:
- 5.0 inches
- Overall Bulb Length:
- 8.7 inches
- Overall Dimensions:
- 9.5" x 4.5" x 1.5"
- Heat Distribution Width:
- 1.5 inch strip
- Cooling Method:
- Water Cooled (1/8 NPT ports)
- Cooling Port Size:
- 1/8 NPT
- Application:
- Curing, Drying, Precision Strip Heating
- Hardware Revision:
- Rev D
- Seller Notes:
- Includes water cooling tubing and brass plumbing fittings (Nylon 11, 0.250" OD x 0.170" ID)
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Research Inc 103390-002 StripIR 1000W infrared lamp and housing. New from manufacturer, open box — original packaging opened or missing. May have been stored long-term or past expiration date. Includes water cooling tubing and fittings.
$150.00Was: $300.00 -

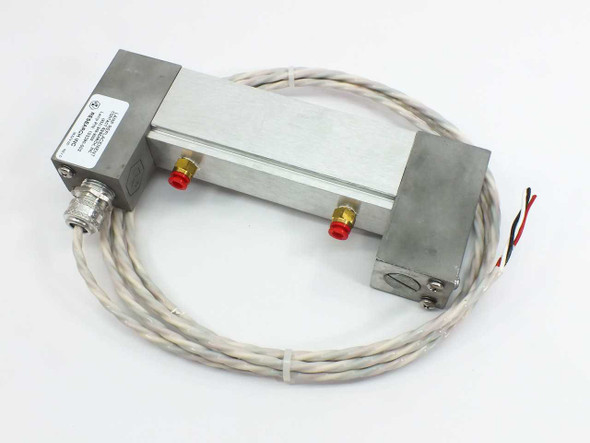

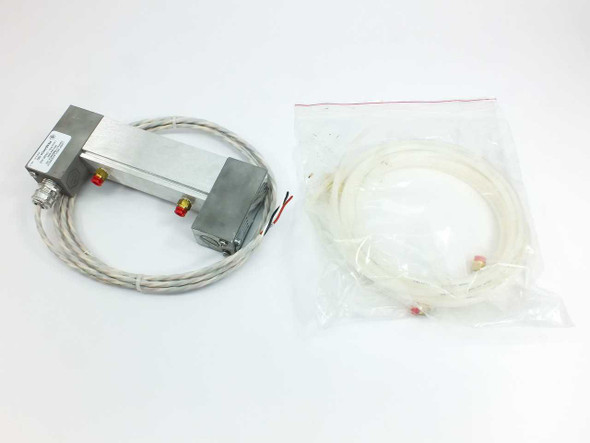

Research Inc 5306-5B 1000W StripIR Infrared Heater 5" Lamp Housing 240VAC
Research Inc
$110.00Was: $225.00Research Inc 5306-5B 1000W StripIR Infrared Heater 5" Lamp Housing 240VACThe Research Inc 5306-5B is a 1000-watt StripIR infrared lamp and housing assembly designed to deliver focused, even infrared...49119- SKU:
- 49119
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 5.00 LBS
- Brand:
- Research Inc
- Model:
- 5306-5B
- MPN:
- 5306B-05-1000-00-00
- Secondary Model:
- 103390-002
- SKU:
- 49119
- Type:
- Infrared Strip Lamp and Housing Assembly
- Power Rating:
- 1000 Watts
- Voltage Rating:
- 240 VAC
- Current Rating:
- 8.4 Amps
- Phase:
- Single Phase
- Watt Density:
- 240 Watts per Inch
- Lighted Lamp Length:
- 5.0 inches
- Overall Bulb Length:
- 8.7 inches
- Overall Dimensions:
- 9.5" x 4.5" x 1.5"
- Heating Width (Strip):
- 1.5 inches
- Cooling Method:
- Water Cooled — 1/8 NPT ports
- Application:
- Curing, Drying, Precision Infrared Heating
- Lamp Part Number:
- LampIR 103390-002
- Housing Part Number:
- 5306B-05-1000-00-00
- Included Accessories:
- Water cooling tubing and brass plumbing fittings
- Tubing Specification:
- Nylon 11, 0.250" OD x 0.170" ID x 0.040" wall
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Includes water cooling tubing and brass push-in fittings
- Condition Notes:
- Research Inc 5306-5B StripIR 1000W infrared lamp housing inspected and in good used condition. Pulled from a working environment where it was actively in use. Includes water cooling tubing and brass fittings.
$110.00Was: $225.00
