Reliance Electric P56H1427J Centrifugal Blower 1/3 HP 208-460V 3Ph FB56C 3450RPM

Reliance Electric P56H1427J Centrifugal Blower 1/3 HP 208-460V 3Ph FB56C 3450RPM

The Reliance Electric P56H1427J is a totally enclosed (TE), 3-phase centrifugal blower rated at 1/3 HP and 3450 RPM. It features a squirrel-cage blower housing with a 4-inch outlet port and a 5-inch intake port, driven by a Reliance Electric motor in an FB56C frame configuration. This unit has been powered and tested at our facility and is in good working order — it powers on and moves air strongly.

Specifications & What's Included

• Model: P56H1427J
• Frame: FB56C
• Horsepower: 1/3 HP
• Speed: 3450 RPM
• Voltage: 208–230V AC (high voltage) / 460V AC (low voltage)
• Current: 1.8A @ 208–230V / 0.9A @ 460V
• Phase: 3-Phase
• Frequency: 60 Hz
• Service Factor: 1.15
• NEMA Design: B
• Insulation Class: F
• Ambient Temperature Rating: 40°C
• Enclosure: Totally Enclosed (TE), IP44
• Duty Rating: Continuous (CONT)
• Voltage Range: 200V Min / 506V Max

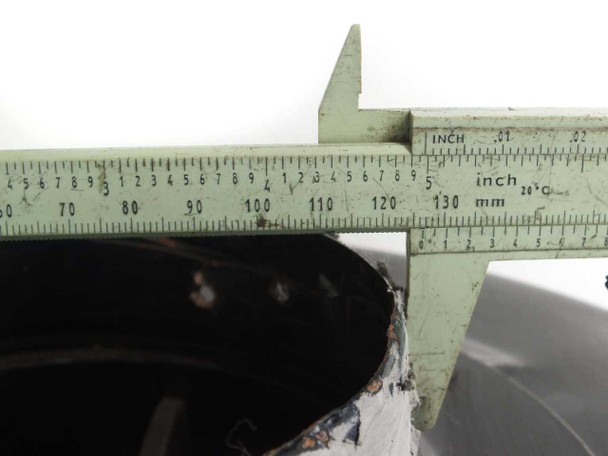

• Outlet Port Diameter: 4 inches
• Intake Port Diameter: 5 inches
• Certifications: CE, UL (E54826)
• Country of Manufacture: USA
• Includes: loose wiring leads, black outlet duct piece

Applications

Centrifugal blowers of this type are widely used in industrial ventilation, process cooling, fume and exhaust handling, and HVAC systems where a compact, motor-integrated air-moving unit is required. The 3-phase configuration and totally enclosed IP44-rated motor make this blower well-suited for industrial plant environments, including applications involving airborne dust, particulates, or moisture exposure. The FB56C frame and 4-inch outlet are common in OEM equipment installations such as industrial ovens, dryers, environmental chambers, and process cooling enclosures. This blower can be wired for either high-voltage (208–230V) or low-voltage (460V) operation to suit facility power configurations.
