Colasit Centrifugal Blower Siemens 1LA7063-2AA10 Motor 460V 3Ph 3420RPM 2.5" Port
Centrifugal blower unit mounted on a stainless steel base with integrated Siemens three-phase motor. Rated for 460V operation at 3420 RPM with a 2.5-inch discharge port.
Specifications & What's Included
- Motor: Siemens 1LA7063-2AA10, Frame 63, IP 55 enclosure
- Voltage: 460V Y (60 Hz); also rated 230/400V Delta/Y (50 Hz)
- Power: 0.29 kW (60 Hz); Current 0.67A
- Speed: 3420 RPM (60 Hz), 2830 RPM (50 Hz)
- Port: 2.5" OD, 2.125" ID discharge
- Mounting: IM B3 foot mount; Service Factor 1.1
- Dimensions: 14 x 13 x 12 inches
- Certification: CE; Manufactured in Germany
- No accessories included
Applications
Centrifugal blowers of this type are used in HVAC systems, air handling units, dust collection, and industrial ventilation. The compact frame and stainless steel base make this unit suitable for corrosive or washdown environments. Commonly found in telecommunications shelters, equipment cooling, and process air applications requiring continuous low-pressure air movement.
Condition: Used

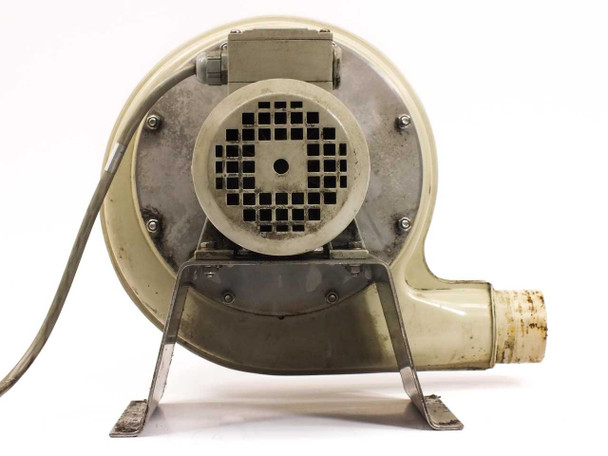

This Colasit centrifugal blower with Siemens 1LA7063-2AA10 three-phase motor has been powered and tested at our facility and is in good working order — it runs on 460 VAC and moves air strongly. The blower housing is white/cream-painted metal and shows general surface wear and age typical of used industrial equipment; some light surface rust is visible on the discharge port and around the base area, and the stainless steel mounting base shows general scuffing and patina. The motor and junction box appear intact and in good condition. Wiring leads are present and exposed. Please view our photo set and contact us if you have any questions.
This Colasit centrifugal blower with Siemens 1LA7063-2AA10 three-phase motor has been powered and tested at our facility and is in good working order — it runs on 460 VAC and moves air strongly. The blower housing is white/cream-painted metal and shows general surface wear and age typical of used industrial equipment; some light surface rust is visible on the discharge port and around the base area, and the stainless steel mounting base shows general scuffing and patina. The motor and junction box appear intact and in good condition. Wiring leads are present and exposed. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Colasit |
Motor Brand: |
Siemens |
Model: |
1LA7063-2AA10 |
MPN: |
1LA7063-2AA10 |
Motor Part Number: |
1LA7063-2AA10 |
Motor NoUD: |
0013938-0410-0008 |
SKU: |
48385 |
Type: |
Centrifugal Blower |
Condition: |
Used – Inspected and Tested |
Voltage Rating: |
60 Hz: 460V Y; 50 Hz: 230/400V Delta/Y |
Current Rating: |
60 Hz: 0.67A; 50 Hz: 1.18/0.68A |
Power Rating: |
60 Hz: 0.29 kW; 50 Hz: 0.25 kW |
Phase: |
Three Phase |
Frequency: |
50/60 Hz |
Speed (RPM): |
3420 RPM (60 Hz); 2830 RPM (50 Hz) |
Voltage (60 Hz): |
440-480V Y, 0.67-0.69A |
Voltage (50 Hz): |
220-240/380-420V, 1.18-1.21/0.68-0.70A |
Power Factor: |
0.82 |
Frame Size: |
63 |
Enclosure Rating: |
IP 55 |
Mounting: |
IM B3 (Foot Mount) |
