Description
Chicago Blower Size 9 Heavy Duty Fan Siemens 2HP 1735RPM 460V 3Ph Motor
Heavy duty centrifugal fan and blower unit driven by a Siemens 2HP premium efficiency motor. This industrial fan moves air and gases in continuous duty applications at 1735 RPM with 460V three-phase power.
Specifications & What's Included
- Chicago Blower Size 9 centrifugal fan
- Siemens PE 21 Plus Premium Efficiency motor, 2 HP, 1735 RPM
- 460V, 3 Phase, 60 Hz, 2.9 A
- 6 in inlet, 9-3/4 in outlet
- Clockwise rotation, continuous duty rated at 40°C ambient
- Frame 145T, NEMA Design B, VFD compatible (6-60 Hz V/Hz)
- Ductwork transition and rolling pallet included
Applications
Heavy duty centrifugal fans are used for air handling, material conveying, dust collection, and process ventilation in industrial facilities. These units are commonly found in HVAC systems, manufacturing plants, and utility applications where continuous airflow is required. Size 9 units handle moderate to large volume air movement in enclosed systems and ducted installations.
Condition: Used

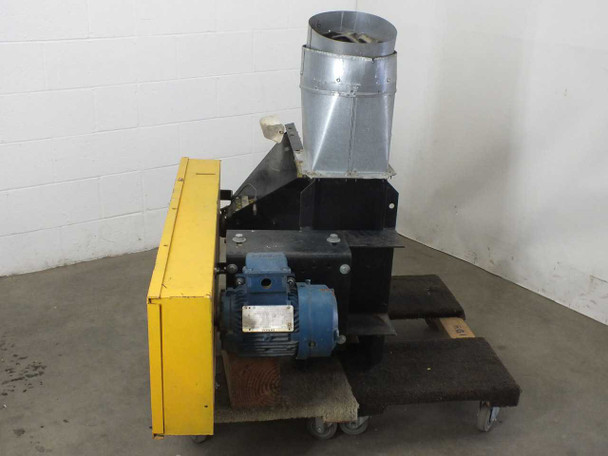

This Chicago Blower Corporation Size 9 Heavy Duty Centrifugal Fan with Siemens 2HP 460V 3-phase motor has been tested at our facility and confirmed to be in working order. The unit shows normal wear consistent with prior industrial use, including surface scuffing and paint wear on the blower housing and motor exterior. The yellow inlet guard is intact, and the galvanized duct transition outlet on top is present. The unit is mounted on a rolling wooden pallet for ease of movement. Please view our full photo set for a detailed look at cosmetic condition, and contact us with any questions before purchasing.
This Chicago Blower Corporation Size 9 Heavy Duty Centrifugal Fan with Siemens 2HP 460V 3-phase motor has been tested at our facility and confirmed to be in working order. The unit shows normal wear consistent with prior industrial use, including surface scuffing and paint wear on the blower housing and motor exterior. The yellow inlet guard is intact, and the galvanized duct transition outlet on top is present. The unit is mounted on a rolling wooden pallet for ease of movement. Please view our full photo set for a detailed look at cosmetic condition, and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information

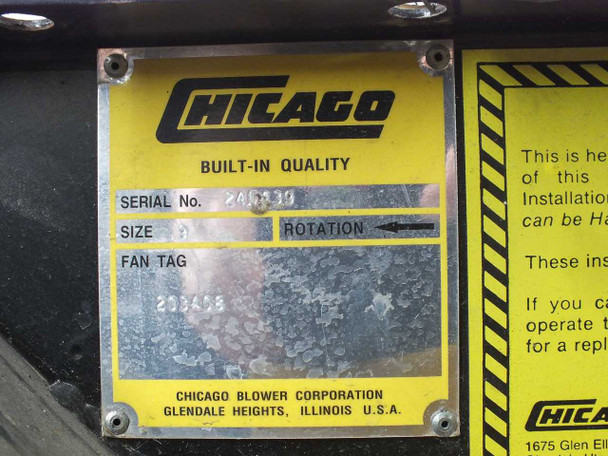

Brand: |
Chicago Blower Corporation |
Model: |
Size 9 |
MPN: |
203458 |
Type: |
Heavy Duty Centrifugal Fan / Blower |
SKU: |
52513 |
Fan Size: |
Size 9 |
Inlet Size: |
6 in |
Outlet Size: |
9-3/4 in |
Rotation: |
Clockwise (per rating plate arrow) |

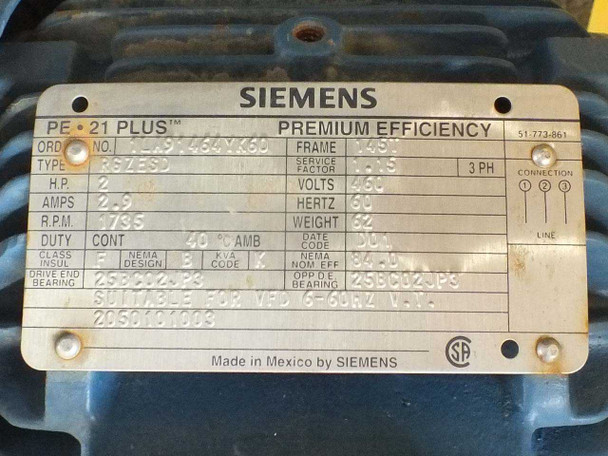

Motor Brand: |
Siemens |
Motor Model: |
PE 21 Plus Premium Efficiency |
Motor Type: |
36ZES D |
Motor Order No.: |
1LA91464YK60 |
Horsepower: |
2 HP |
Voltage: |
460V |
Phase: |
3 Phase |
Frequency: |
60 Hz |
Amperage: |
2.9 A |
RPM: |
1735 |
Motor Frame: |
145T |
Duty: |
Continuous (CONT), 40°C Ambient |
Drive End Bearing: |
25BC02JP3 |
Opp. Drive End Bearing: |
25BC02JP3 |
Insulation Class: |
F |
NEMA Design: |
B |
Suitable For VFD: |
Yes — 6-60 Hz V/Hz |
Country/Region of Manufacture: |
USA (fan); Mexico (motor) |
Seller Notes: |
Unit tested and confirmed working. Includes motor and ductwork transition shown. |
Condition: |
Used – Inspected and Tested |
Condition Notes: |
Chicago Blower Size 9 heavy duty centrifugal fan with Siemens 2HP 460V 3Ph motor. Tested at our facility and confirmed in working order. Normal industrial wear on housing and motor exterior. Rolling pallet included. |
