Description
Bell & Gossett 1-1/2X7B Centrifugal Pump 3HP 3450RPM 32GPM 208-230/460V 3-Phase
Close-coupled end-suction centrifugal pump from Bell & Gossett's Series 80 line. Delivers 32 GPM at 110 feet of head with a 3 HP three-phase motor operating at 3450 RPM.
Specifications & What's Included
- Flow Rate: 32 GPM
- Head: 110 ft / Max Pressure: 175 PSI
- Motor: Baldor JMM3559T, 3 HP, 3450 RPM, TEFC frame 145JM
- Voltage: 208-230/460V AC, 3-Phase, 60 Hz
- Current: 8.1-7.6 / 3.8 Amps
- Inlet/Outlet: 1.5 inch ports
- Mounting: Four 5/8 inch bolt holes, 6 inch flange OD
Applications
Series 80 centrifugal pumps are industrial water circulation units used in HVAC systems, process cooling loops, and light commercial recirculation applications. These end-suction designs integrate motor and pump on a common baseplate for compact installation. Typically found in manufacturing facilities, commercial buildings, and equipment cooling circuits requiring moderate flow and pressure.
Condition: Used

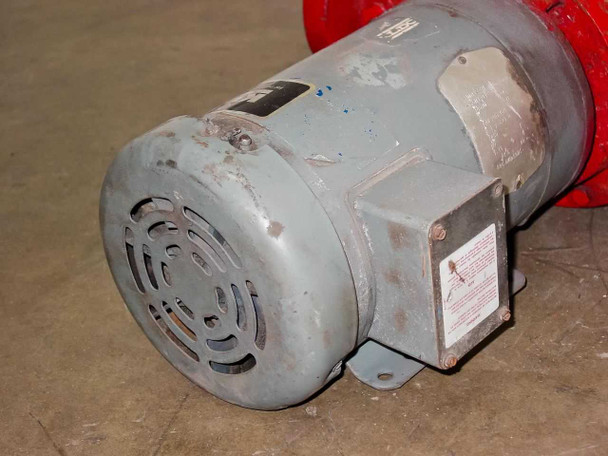

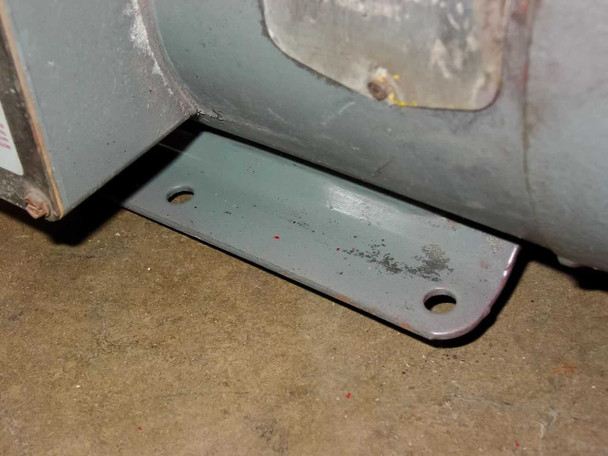

This Bell & Gossett 1-1/2X7B Series 80 centrifugal pump is in used condition. The motor electronics have been tested and confirmed good. However, the pumping mechanism itself has not been tested, so we cannot speak to its current pumping performance. Cosmetically, the red cast iron pump casing shows surface rust, paint chips, and general wear consistent with prior industrial service. The gray Baldor JMM3559T motor housing has surface grime, minor scuffing, and some paint spots. The coupling area between the motor and pump shows rust and wear. The motor foot/mounting bracket is intact. Please view our photo set and contact us if you have any questions.
This Bell & Gossett 1-1/2X7B Series 80 centrifugal pump is in used condition. The motor electronics have been tested and confirmed good. However, the pumping mechanism itself has not been tested, so we cannot speak to its current pumping performance. Cosmetically, the red cast iron pump casing shows surface rust, paint chips, and general wear consistent with prior industrial service. The gray Baldor JMM3559T motor housing has surface grime, minor scuffing, and some paint spots. The coupling area between the motor and pump shows rust and wear. The motor foot/mounting bracket is intact. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Bell & Gossett |
Model: |
1-1/2X7B |
MPN: |
1-1/2X7B |
Secondary Model: |
5 3/8BF |
Type: |
Centrifugal Water Pump |
Series: |
Series 80 |
SKU: |
43981 |
Condition: |
Used – Motor Electronics Tested Good |
Seller Notes: |
Motor electronics tested good; pumping mechanism not tested |
Country/Region of Manufacture: |
United States |
Power Rating: |
3 HP |
Voltage Rating: |
208-230/460V AC |
Current Rating: |
8.1-7.6 / 3.8 Amps |
Phase: |
Three Phase |
Frequency: |
60 Hz |
Motor Speed (RPM): |
3450 RPM |
Flow Rate: |
32 GPM |
Head: |
110 ft |
Max Working Pressure: |
175 PSI |
Inlet/Outlet Size: |
1.5 inch |
Flange OD: |
6 inch |
Flange Mounting: |
Four 5/8 inch bolt holes |
Motor Model: |
Baldor JMM3559T |
Motor Frame: |
145JM |
Motor Insulation Class: |
F |
Motor Service Factor: |
1.15 |
Motor Ambient Rating: |
40C AMB-CONT |
Motor NEMA Design: |
TE (Totally Enclosed) |
Ident Number: |
5 3/8BF |
Manufacturer Division: |
ITT Fluid Handling Division |
Form Factor: |
Close-Coupled / End-Suction |
Condition Notes: |
Bell & Gossett 1-1/2X7B Series 80 pump, used. Motor electronics tested good. Pumping mechanism not tested. Pump casing shows surface rust and paint wear. Baldor JMM3559T motor present. |
