Red Lion Sixnet SLX-16MS-1 16-Port Managed Industrial Ethernet Switch 10-30VDC

(No reviews yet) Write a Review
SKU:
52984
MPN:
SLX-16MS-1
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Red Lion Sixnet SLX-16MS-1 16-Port Managed Industrial Ethernet Switch — front-left angle showing all 16 RJ-45 ports and Sixnet branding
  • Red Lion Sixnet SLX-16MS-1 — front face view showing port numbering 1-16 and 16-Port Industrial Ethernet Managed Switch label

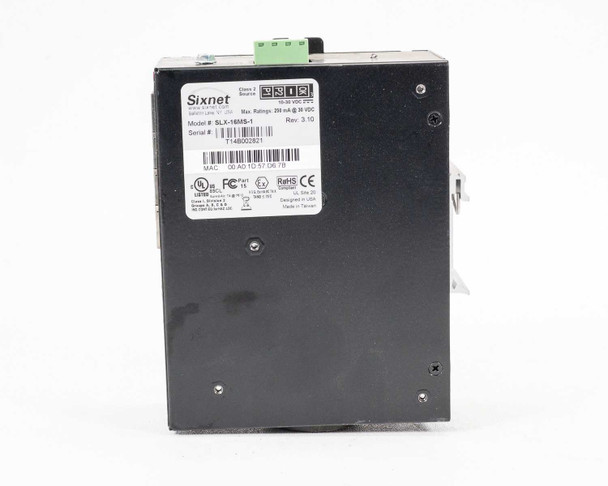

  • Red Lion SLX-16MS-1 — side label showing model number, serial number, Rev 3.10, max ratings 290mA @ 30VDC, and certifications

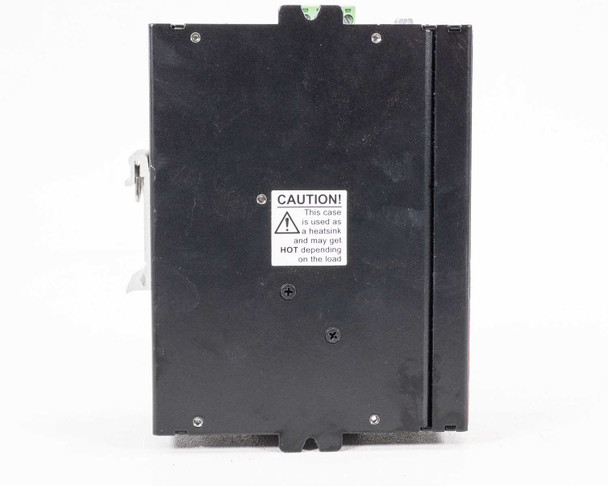

  • Red Lion SLX-16MS-1 — back panel with caution heatsink warning label and DIN-rail mounting bracket visible
  • Red Lion SLX-16MS-1 — bottom edge view showing DIN-rail clip and mounting hardware
  • Red Lion SLX-16MS-1 — top edge view showing green terminal block power input labeled 10-30 VDC with P1 and P2 redundant inputs and reset button
  • Red Lion SLX-16MS-1 — side label closeup showing model SLX-16MS-1, MAC address, UL/CSA/FCC/RoHS/CE certifications, Class 1 Div 2 rating, Designed in USA, Made in Taiwan
$425.00
Was: $850.00
Current Stock: 1

Sold Out

Description

Red Lion Sixnet SLX-16MS-1 16-Port Managed Industrial Ethernet Switch 10-30VDC

Managed industrial Ethernet switch with 16 Fast Ethernet ports. Operates on 10–30 VDC with dual power inputs and reverse polarity protection for harsh environments.

Specifications & What's Included

  • 16 × 10/100Base-T(X) RJ-45 ports
  • 10–30 VDC input, 290 mA @ 30 VDC max draw
  • Managed via Web (HTTPS/SSL), CLI (SSH/Telnet), SNMP v1/v2/v3
  • 802.1Q VLAN, 802.1p QoS, RSTP/MSTP, Real-Time Ring redundancy
  • 802.1x RADIUS, MAC-based port security, Modbus/TCP
  • Operating range: −40 to 75 °C; IP40 enclosure; UL/CSA Class 1 Div 2
  • DIN-rail mount; dimensions 5" × 2" × 6"
  • DIN-rail hardware included

Applications

Used in industrial control networks, factory automation, and telecom infrastructure where managed switching with network redundancy and extended temperature tolerance is required. Common in PLC control cabinets, remote RTU deployments, and systems requiring ring topology for fast failover. Compatible with standard industrial Ethernet protocols and Modbus/TCP monitoring.

Condition: Used
This Red Lion Sixnet SLX-16MS-1 16-Port Managed Industrial Ethernet Switch has been inspected and is in good used condition. It was pulled from a large PLC control cabinet that was decommissioned, where it had been in active use. The unit shows normal wear consistent with industrial service — the enclosure and ports are clean and intact with no significant damage visible. The DIN-rail mounting hardware is present and attached. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Red Lion
Model:
SLX-16MS-1
MPN:
SLX-16MS-1
Secondary Model:
SLX-16MS
Type:
Managed Industrial Ethernet Switch
SKU:
52984
Number of Ports:
16
Port Speed:
10/100Base-T(X) Fast Ethernet
Connector Type:
RJ-45 (copper)
Power Input:
10-30VDC
Max Power Draw:
290 mA @ 30 VDC
Redundant Power Inputs:
Yes
Reverse Polarity Protection:
Yes
Management Type:
Managed
Management Interface:
Web (HTTPS/SSL), CLI (SSH/Telnet), SNMP
SNMP Version:
SNMP v1, v2, v3
VLAN Support:
802.1Q VLAN
QoS:
802.1p QoS/CoS/DS
Spanning Tree Protocol:
RSTP/MSTP 802.1w, 802.1D, 802.1Q-2005
Ring Redundancy:
Real-Time Ring fast-healing ring technology
Multicast Filtering:
IGMP multicast filtering
Security Features:
802.1x RADIUS, MAC-based port security, HTTPS/SSL, SSH
Modbus/TCP:
Yes — port, power, and ring status monitoring
Operating Temperature:
-40 to 75°C
Enclosure Rating:
IP40
Hazardous Location Rating:
UL/CSA Class 1, Div 2
Certifications:
UL, CSA, FCC Part 15, CE, RoHS, Ex
Mounting:
DIN-Rail or Panel Mount
Form Factor:
DIN-Rail
Dimensions:
5" x 2" x 6"
Country/Region of Manufacture:
Taiwan
Designed In:
USA
Revision:
3.10
Condition:
Used – Pulled from Working Environment
Seller Notes:
Pulled from a decommissioned PLC control cabinet where it was in active use.
Condition Notes:
Red Lion Sixnet SLX-16MS-1 16-Port Managed Industrial Ethernet Switch in good used condition. Pulled from a decommissioned PLC cabinet where it was in active use. Inspected; normal wear. DIN-rail hardware included.
View AllClose

Related Products

Related Products

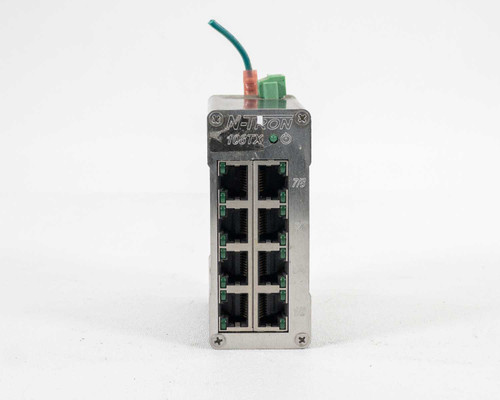

Red Lion N-Tron 108TX 8-port industrial Ethernet switch — angled front-right view showing eight RJ-45 ports and green power terminal block on top Red Lion N-Tron 108TX industrial Ethernet switch — straight front view showing eight RJ-45 ports, N-Tron logo, and LED indicators
