Red Lion
-

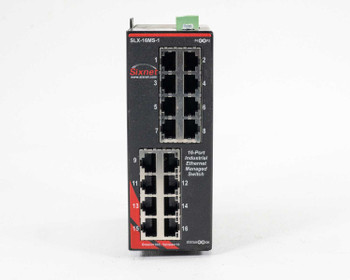

Red Lion Sixnet SLX-16MS-1 16-Port Managed Industrial Ethernet Switch 10-30VDC
Red Lion
$425.00Was: $850.00Red Lion Sixnet SLX-16MS-1 16-Port Managed Industrial Ethernet Switch 10-30VDCManaged industrial Ethernet switch with 16 Fast Ethernet ports. Operates on 10–30 VDC with dual power inputs and reverse...52984- SKU:
- 52984
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Red Lion
- Model:
- SLX-16MS-1
- MPN:
- SLX-16MS-1
- Secondary Model:
- SLX-16MS
- Type:
- Managed Industrial Ethernet Switch
- SKU:
- 52984
- Number of Ports:
- 16
- Port Speed:
- 10/100Base-T(X) Fast Ethernet
- Connector Type:
- RJ-45 (copper)
- Power Input:
- 10-30VDC
- Max Power Draw:
- 290 mA @ 30 VDC
- Redundant Power Inputs:
- Yes
- Reverse Polarity Protection:
- Yes
- Management Type:
- Managed
- Management Interface:
- Web (HTTPS/SSL), CLI (SSH/Telnet), SNMP
- SNMP Version:
- SNMP v1, v2, v3
- VLAN Support:
- 802.1Q VLAN
- QoS:
- 802.1p QoS/CoS/DS
- Spanning Tree Protocol:
- RSTP/MSTP 802.1w, 802.1D, 802.1Q-2005
- Ring Redundancy:
- Real-Time Ring fast-healing ring technology
- Multicast Filtering:
- IGMP multicast filtering
- Security Features:
- 802.1x RADIUS, MAC-based port security, HTTPS/SSL, SSH
- Modbus/TCP:
- Yes — port, power, and ring status monitoring
- Enclosure Rating:
- IP40
- Hazardous Location Rating:
- UL/CSA Class 1, Div 2
- Certifications:
- UL, CSA, FCC Part 15, CE, RoHS, Ex
- Mounting:
- DIN-Rail or Panel Mount
- Form Factor:
- DIN-Rail
- Dimensions:
- 5" x 2" x 6"
- Country/Region of Manufacture:
- Taiwan
- Designed In:
- USA
- Revision:
- 3.10
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Pulled from a decommissioned PLC control cabinet where it was in active use.
- Condition Notes:
- Red Lion Sixnet SLX-16MS-1 16-Port Managed Industrial Ethernet Switch in good used condition. Pulled from a decommissioned PLC cabinet where it was in active use. Inspected; normal wear. DIN-rail hardware included.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$425.00Was: $850.00 -
Red Lion N-Tron 108TX 8-Port Unmanaged Industrial Ethernet Switch 10-30VDC DIN
Red Lion
$65.00Was: $125.00Red Lion N-Tron 108TX 8-Port Unmanaged Industrial Ethernet Switch 10-30VDC DINThe Red Lion N-Tron 108TX is an eight-port unmanaged 10/100BaseTX industrial Ethernet switch housed in a hardened metal...52981- SKU:
- 52981
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Red Lion Controls (N-Tron)
- Model:
- 108TX
- MPN:
- 108TX
- Type:
- Unmanaged Industrial Ethernet Switch
- SKU:
- 52981
- Number of Ports:
- 8
- Port Type:
- 10/100BaseTX RJ-45
- Management Type:
- Unmanaged
- Power Requirements:
- 10-30 VDC, 250mA, Redundant Inputs
- Form Factor:
- DIN-Rail Mount
- Enclosure:
- Hardened Metal
- Data Rate:
- 10/100 Mbps; up to 1.6 Gb/s max throughput
- Standards Compliance:
- IEEE 802.3
- Duplex:
- Full/Half Duplex Auto-Sensing
- MDIX:
- Auto MDI/MDIX
- ESD Protection:
- Yes — ESD protection diodes on RJ-45 ports
- Surge Protection:
- Yes — surge protection diodes on power inputs
- Switching Method:
- Store-and-Forward
- LED Indicators:
- Link/Activity per port
- MTBF:
- >2,000,000 hours
- Certifications:
- UL Listed (65SN), FCC Part 15, CE
- Country/Region of Manufacture:
- United States
- Dimensions:
- 4.25" x 1.5" x 4"
- Hardware Revision:
- Rev A-3
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Switch only; no power supply included. DIN-rail clip attached.
- Condition Notes:
- Red Lion N-Tron 108TX industrial Ethernet switch in good used condition. Pulled from a decommissioned PLC cabinet where it was in active use. Enclosure shows light service wear. DIN-rail clip attached. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$65.00Was: $125.00 -
Red Lion Controls MLPS MLPS0000 AC Input Power Supply 115/230VAC to 12VDC 80mA
Red Lion
$18.00Was: $40.00Red Lion Controls MLPS MLPS0000 AC Input Power Supply 115/230VAC to 12VDC 80mAThe Red Lion Controls MLPS is a compact AC-to-DC power supply module designed to convert 115VAC or 230VAC line power to a...35802- SKU:
- 35802
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Red Lion
- Model:
- MLPS
- MPN:
- MLPS0000
- SKU:
- 35802
- Type:
- AC to DC Power Supply Module
- Input Voltage:
- 115/230VAC (selectable)
- Input Frequency:
- 50/60Hz
- Input Power:
- 3VA
- Output Voltage:
- 12VDC
- Output Current:
- 80mA
- Voltage Selection:
- Selectable via side-mounted switch (115V or 230V)
- Certifications:
- UL, CE
- Country/Region of Manufacture:
- United States
- Form Factor:
- Panel Mount / DIN-style Module
- Condition:
- New – Open Box
- Seller Notes:
- New unit; may be out of original box. Includes original Red Lion box.
- Condition Notes:
- Red Lion Controls MLPS MLPS0000 AC power supply is new and unused. May be out of original box; box is included. No signs of use or wear. Please contact us with any questions.
- California Prop 65 Warning:
- WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
$18.00Was: $40.00
