Description
Raritan RCI MC4E Master Console 4-Port KVM Switch VGA TTL 15-Pin 9-Pin 25-Pin
The Raritan Computer Inc. (RCI) MC4E Master Console is a 4-port KVM (Keyboard, Video, Mouse) switch that allows a single keyboard and monitor to control up to four connected computers or servers. It features both VGA and TTL monitor outputs along with 25-pin combination keyboard/monitor channel ports, making it compatible with a range of older workstations and terminals. The front panel provides direct channel selection for each of the four ports along with Auto Scan and Auto Skip modes with selectable scan rate timing.
Specifications & What's Included
- Manufacturer: Raritan Computer Inc. (RCI), Belle Mead, New Jersey
- Model: MC4E
- Number of ports: 4 (CH1, CH2, CH3, CH4)
- VGA Monitor output: 15-Pin HD15
- TTL Monitor output: 9-Pin D-Sub
- Keyboard port: dedicated connector on rear panel

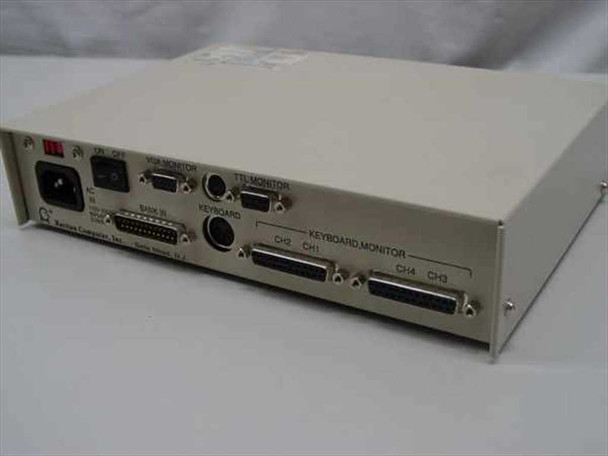

- Channel ports (rear): four 25-Pin D-Sub keyboard/monitor combination connectors

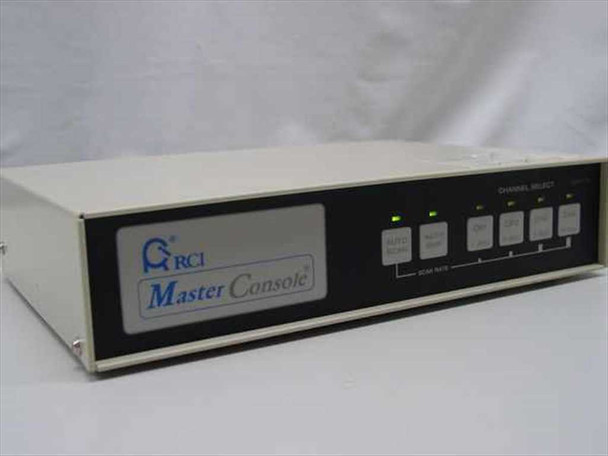

- Front-panel controls: Auto Scan, Auto Skip, CH1–CH4 channel select buttons with green LED indicators
- Scan rate: CH1 = 1 sec, CH2 = 3 sec, CH3 = 8 sec, CH4 = 16 sec (per front panel labeling)
- AC power input: 100–120V / 200–240V, 60Hz/50Hz, 0.2A/0.1A
- UL Listed (I.T.E., file 1F61)
- Form factor: desktop
- Unit only — no cables included unless visible in photos
Applications
KVM switches like the Raritan MC4E were widely used in data centers, server rooms, and multi-workstation environments throughout the 1990s and into the 2000s to reduce hardware overhead — allowing one operator console to manage multiple machines without a dedicated monitor and keyboard at each station. The MC4E's dual monitor output (VGA and TTL) made it particularly suited for mixed environments combining newer VGA-based PCs with older TTL-monitor workstations or terminals, a common situation during the transition period away from character-based systems. The auto-scan feature let administrators cycle through connected machines automatically to monitor activity without manual switching. Raritan Computer Inc. was a well-regarded manufacturer of KVM switching products during this era, and the MC4E represents their entry-level master console line. Units like this remain useful today for anyone maintaining legacy systems that use VGA or TTL video, or for lab and test bench setups where a single console needs to switch between several machines.
This Raritan Computer Inc. RCI MC4E Master Console 4-Port KVM Switch has been inspected and appears to be in good used condition. The front panel buttons and LED indicators are intact. The rear connectors — including the VGA monitor port, TTL monitor port, keyboard port, and four 25-pin keyboard/monitor channel ports — show no visible damage. The chassis has light surface wear consistent with prior use. It has not been powered up or tested at our facility but came out of a working environment. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Raritan Computer Inc. |
Model: |
MC4E |
MPN: |
MC4E |
Type: |
4-Port KVM Switch / Master Console |
SKU: |
14397 |
Number of Ports: |
4 |
Interface Type: |
VGA (15-Pin), TTL (9-Pin), 25-Pin Bank |
Connector Types: |
15-Pin HD15 VGA, 9-Pin TTL, 25-Pin D-Sub |
Channel Select: |
CH1 (1 sec), CH2 (3 sec), CH3 (8 sec), CH4 (16 sec) |
Scan Features: |
Auto Scan, Auto Skip with adjustable scan rate |
Power Requirements: |
100-120V / 200-240V AC, 60Hz/50Hz, 0.2/0.1A |
Form Factor: |
Desktop |
Certifications: |
UL Listed (I.T.E 1F61) |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only; no cables included unless shown in photos. |
Condition Notes: |
Raritan RCI MC4E 4-Port KVM Switch in good used condition. Chassis shows light wear; all ports visually intact. Not bench-tested at our facility; pulled from a working environment. Please contact us with any questions. |
