Description
Raritan MasterConsole II KVM-0D0 8-Port KVM Switch Rackmount 1U PS/2
An 8-port KVM switch for managing multiple servers from a single PS/2 console. Mounts in standard 19-inch server racks and supports up to 256 cascaded servers.
Specifications & What's Included
- 8 server ports (DB25 connectors)
- PS/2 keyboard and mouse, VGA monitor console interface
- 1U rackmount form factor
- Front-panel pushbutton, auto-scan, and remote switching
- Selectable scan intervals: 1, 3, 5, 7, 9, 11, 13, 16 seconds
- Admin port: RJ-45
- Power: 115V/230V AC, 50/60Hz
- Unit only; no cables included
Applications
KVM switches of this type were widely deployed in server rooms and data centers to reduce console clutter and cabling. The MasterConsole II series is compatible with legacy server platforms using DB25 serial and VGA connections. Typical installations included networked server environments, telecommunications facilities, and enterprise systems management setups where administrators needed rapid access to multiple machines from a single keyboard, mouse, and monitor.
Condition: Used

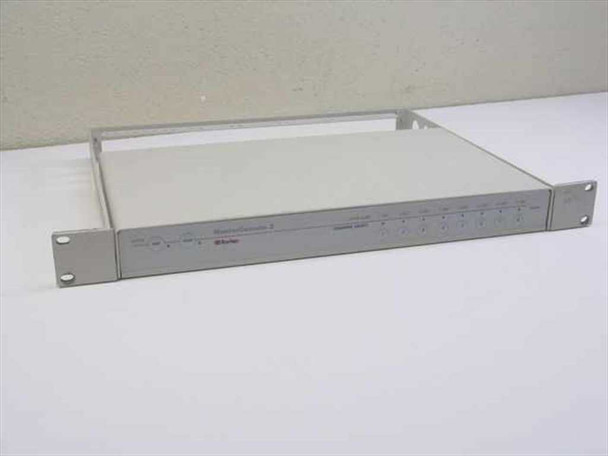

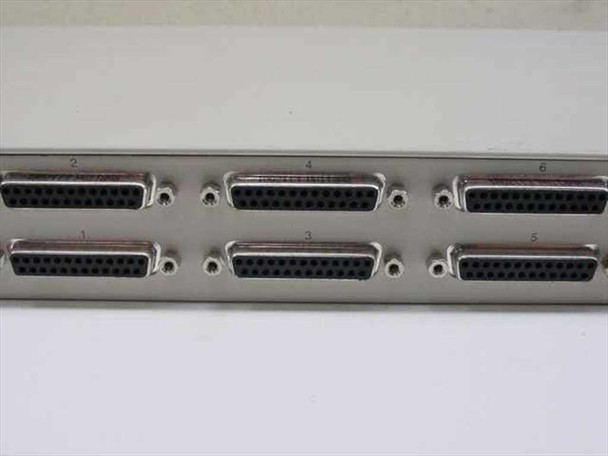

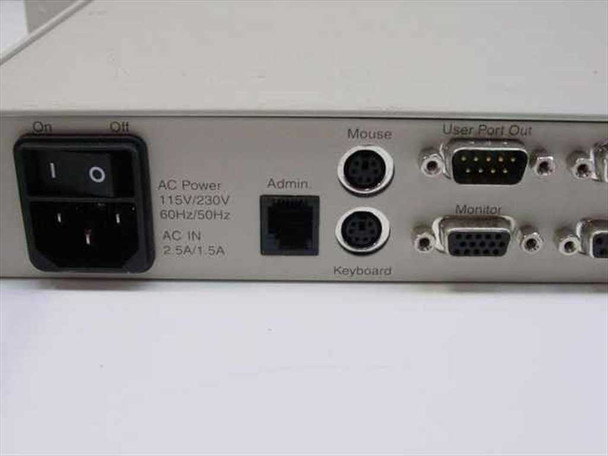

This Raritan MasterConsole II KVM-0D0 8-Port KVM Switch has been inspected and is in good condition. The chassis and front panel are clean with light surface wear consistent with normal rack use. All eight front-panel server select buttons and the AUTO, SKIP, and SCAN controls are present and intact. The rear-panel ports — including the PS/2 mouse, keyboard, monitor, Admin RJ-45, and all eight DB25 server ports — appear undamaged. Please view our photo set and contact us if you have any questions.
This Raritan MasterConsole II KVM-0D0 8-Port KVM Switch has been inspected and is in good condition. The chassis and front panel are clean with light surface wear consistent with normal rack use. All eight front-panel server select buttons and the AUTO, SKIP, and SCAN controls are present and intact. The rear-panel ports — including the PS/2 mouse, keyboard, monitor, Admin RJ-45, and all eight DB25 server ports — appear undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Raritan |
Model: |
KVM-0D0 |
MPN: |
KVM-0D0 |
Product Line: |
MasterConsole II |
Type: |
KVM Switch |
SKU: |
32122 |
Number of Ports: |
8 Server Ports |
Max Servers Supported: |
256 (cascaded) |
Form Factor: |
1U Rackmount |
Console Interface: |
PS/2 (Mouse, Keyboard), VGA Monitor |
Server Port Connector: |
DB25 (x8) |
Admin Port: |
RJ-45 |
Power Requirements: |
115V/230V AC, 60Hz/50Hz, 2.5A/1.5A |
Switching Method: |
Front-panel pushbutton, Auto-scan, Remote |
Scan Intervals: |
1, 3, 5, 7, 9, 11, 13, 16 seconds (selectable) |
Management Type: |
Local Console, Remote |
Condition: |
Used – Inspected and in Good Condition |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Unit only; no cables included. Inspected and in good condition. |
Condition Notes: |
Raritan MasterConsole II KVM-0D0 8-Port KVM Switch. Inspected and in good condition. Light surface wear consistent with rack use. All front-panel buttons and rear-panel ports appear intact and undamaged. |
