Raritan MC16E MasterConsole 16-Channel KVM Switch VGA PS/2 Auto Scan

(No reviews yet) Write a Review
SKU:
7950
MPN:
MC16E
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

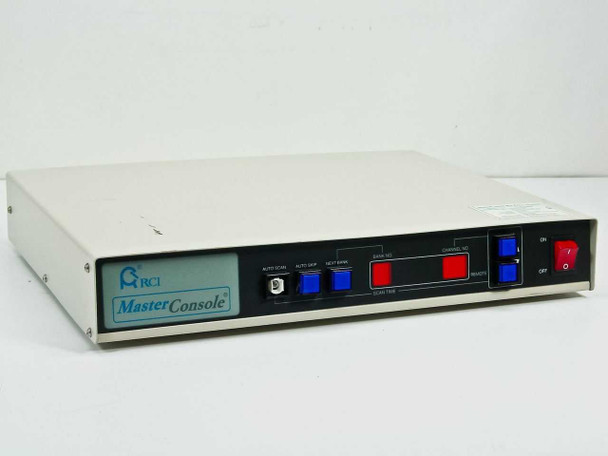

  • Raritan MC16E MasterConsole 16-channel KVM switch – front panel with blue and red control buttons and LED display

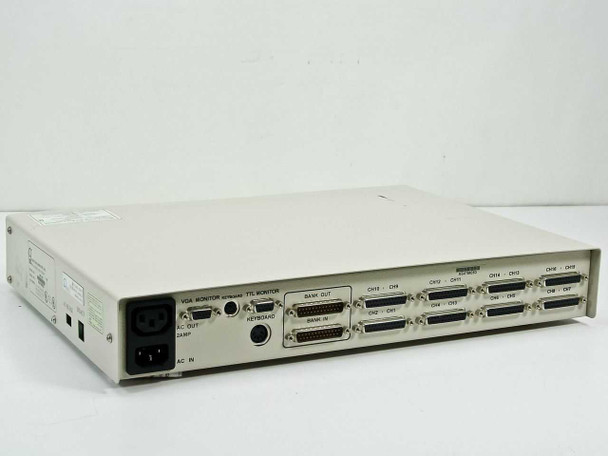

  • Raritan MC16E MasterConsole – rear panel showing VGA monitor out, TTL monitor, PS/2 keyboard port, DB25 multi-server port banks, and AC inlet
  • Raritan MC16E rating label – Model MC16E, Serial A641M083, AC Power 100-120V/200-240V 60Hz/50Hz, UL Listed

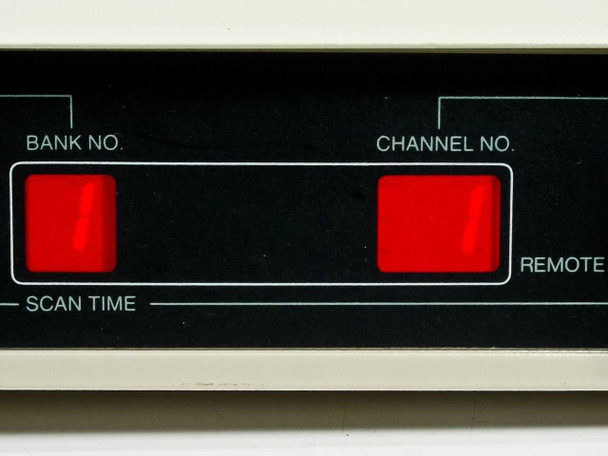

  • Raritan MC16E front panel close-up – Bank No. and Channel No. red LED displays with Scan Time indicator

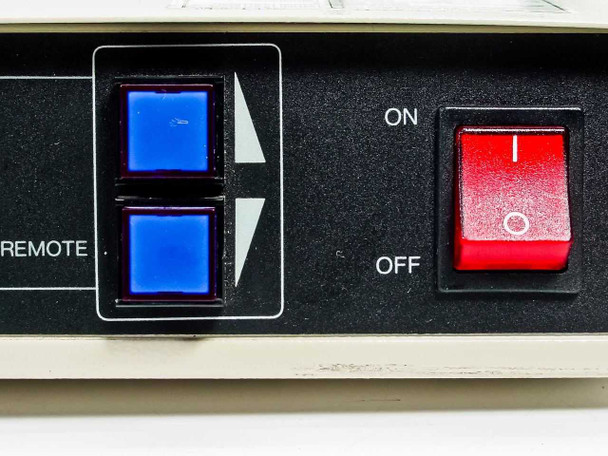

  • Raritan MC16E front panel close-up – Remote buttons and red ON/OFF rocker power switch

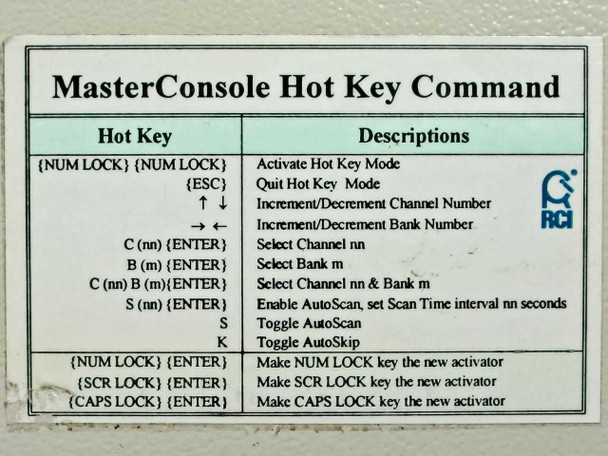

  • Raritan MC16E MasterConsole hot key command reference label on unit top – full hot key list for channel/bank selection and Auto Scan
  • Raritan MC16E side panel – AC Voltage and Breaker indicators with RCI contact label
  • Raritan MC16E front panel close-up – Auto Scan, Auto Skip, and Next Bank blue illuminated push buttons
$60.00
Was: $125.00
Current Stock: 2

Sold Out

Description

Raritan MC16E MasterConsole 16-Channel KVM Switch VGA PS/2 Auto Scan

The Raritan MC16E MasterConsole is a 16-channel KVM (Keyboard, Video, Mouse) switch made by Raritan Computer, Inc. (RCI) of Belle Mead, New Jersey. It allows a single VGA monitor, PS/2 keyboard, and PS/2 mouse to control up to 16 servers or computers, with front-panel Bank and Channel LED displays showing the active connection at a glance.

Specifications & What's Included

  • Manufacturer: Raritan Computer, Inc. (RCI) — MasterConsole Series
  • Model: MC16E
  • Channels: 16 (organized in banks)
  • Video Interface: VGA (HD-15) monitor output; TTL monitor output also present on rear
  • Keyboard/Mouse Interface: PS/2
  • Rear Ports: DB25 multi-server port banks (8 banks visible, each with dual DB25 connectors for CH1/CH2 per bank), VGA Monitor Out, TTL Monitor Out, PS/2 Keyboard In
  • Front-Panel Display: Dual red LED indicators — Bank No. and Channel No. — with Scan Time label
  • Front-Panel Controls: Auto Scan, Auto Skip, Next Bank (illuminated blue push buttons); Remote buttons; red ON/OFF rocker power switch
  • Hot Key Control: Full hot key command set printed on top of unit (channel/bank select, Auto Scan, Auto Skip, scan interval, activator key reassignment)
  • AC Power: 100–120V / 200–240V AC, 60Hz/50Hz, 2.5A / 1.25A (universal input)
  • AC Socket: 2/1A; circuit breaker present on side panel
  • Certifications: UL Listed (I.T.E. 1F61 C)
  • Form Factor: Desktop / 1U-style rackmountable chassis
  • Country of Manufacture: United States
  • Included: Unit only — no KVM cables included unless visible in photos

Applications

The MasterConsole MC16E belongs to Raritan's well-established line of KVM switches, widely used in data centers, server rooms, and IT labs throughout the 1990s and into the 2000s to centralize control of multiple servers at a single console station. By sharing one keyboard, monitor, and mouse across up to 16 machines, administrators could manage servers without dedicated peripherals at each rack position — reducing hardware clutter and desk space significantly. The Auto Scan feature cycles through active channels automatically for monitoring, while Auto Skip bypasses channels with no connected computer. The Bank/Channel organization supports scaling to large multi-switch installations via daisy-chaining or cascading. Today, the MC16E is primarily sought by legacy lab environments, educational institutions, and operators still running PS/2-era servers or workstations who need a proven analog KVM solution with no software or drivers required.

Condition: Used
This Raritan MC16E MasterConsole 16-channel KVM switch has been inspected and appears to be in good used condition. The chassis is clean with light cosmetic wear typical of a pulled unit — some scuffing is visible on the front panel edges. The front-panel LED displays and blue illuminated buttons are intact. It was pulled from a working environment. Unit only; no KVM cables are included unless visible in the photos. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Raritan
Model:
MC16E
MPN:
MC16E
Type:
16-Channel KVM Switch
SKU:
7950
Series:
MasterConsole
Manufacturer:
Raritan Computer, Inc. (RCI)
Number of Ports:
16
Video Interface:
VGA
Keyboard/Mouse Interface:
PS/2
Monitor Output:
VGA (HD-15)
TTL Monitor Output:
Yes
Power Requirements:
100-120V / 200-240V AC, 60Hz/50Hz, 2.5/1.25A
AC Socket:
2/1A
Form Factor:
Desktop / Rackmount
Front Panel Display:
LED Bank No. and Channel No. display
Features:
Auto Scan, Auto Skip, Next Bank, Remote, Hot Key Control
Connector Type (Ports):
DB25 (multi-port banks on rear)
Condition:
Used – Inspected
Seller Notes:
Unit only; no cables included unless shown in photos.
Country/Region of Manufacture:
United States
Compatible With:
PS/2 keyboard/mouse and VGA monitor systems
Condition Notes:
Raritan MC16E MasterConsole 16-channel KVM switch inspected and in good used condition. Light cosmetic wear on front panel edges. Pulled from a working environment. Unit only — no KVM cables included. Please contact us with any questions.
View AllClose

Related Products

Related Products

Raritan MCPS16 16-Channel KVM Master Console – front panel angled view showing blue and red illuminated push buttons Raritan MCPS16 front panel close-up showing Auto-Scan, Auto-Skip, Bank, and Channel buttons with dual red LED numeric displays
Add to Cart
Quick view

Raritan MCPS16 16-Channel Master Console Auto-Scan Auto-Skip PS/2 VGA KVM

Raritan

$35.00
Was: $70.00
Raritan MCPS16 16-Channel Master Console Auto-Scan Auto-Skip PS/2 VGA KVMThe Raritan MCPS16 is a 16-channel KVM master console designed to provide centralized keyboard, video, and mouse control over...
8931
SKU:
8931
Availability:
Usually ships within 1-2 business days.
Weight:
13.00 LBS
Brand:
Raritan
Model:
MCPS16
MPN:
MCPS16
Type:
KVM Master Console Switch
SKU:
8931
Number of Ports:
16
Connectivity:
PS/2 Mouse, VGA, DB25 Channel Ports
Interface Type:
PS/2, VGA, DB25
Connector Type:
DB25, PS/2 Mini-DIN
Features:
Auto-Scan, Auto-Skip, Bank IN/OUT Cascade
Power Requirements:
115V/230V AC, 60Hz/50Hz, 2.5/1.25A
Form Factor:
Desktop
Certifications:
UL, CE, TÜV (GS)
Compatible With:
Raritan KVM switches and server banks
Condition:
Used – Inspected
Seller Notes:
Unit only; no cables included. Please see photos.
Country/Region of Manufacture:
Unknown
Condition Notes:
Raritan MCPS16 16-Channel KVM Master Console. Inspected and in good used condition. Light wear consistent with prior use. Rear DB25 ports and PS/2 port appear undamaged. Unit only, no cables included.
Raritan MasterConsole II KVM-0D0 8-port KVM switch — front and top view showing 1U rackmount form factor with rack ears Raritan MasterConsole II KVM-0D0 — front panel close-up showing 8 server select buttons with scan interval labels (1–16 sec) and REMOTE indicator
Add to Cart
Quick view

Raritan MasterConsole II KVM-0D0 8-Port KVM Switch Rackmount 1U PS/2

Raritan

$60.00
Was: $125.00
Raritan MasterConsole II KVM-0D0 8-Port KVM Switch Rackmount 1U PS/2An 8-port KVM switch for managing multiple servers from a single PS/2 console. Mounts in standard 19-inch server racks and supports...
32122
SKU:
32122
Availability:
Usually ships within 1-2 business days.
Weight:
12.00 LBS
Brand:
Raritan
Model:
KVM-0D0
MPN:
KVM-0D0
Product Line:
MasterConsole II
Type:
KVM Switch
SKU:
32122
Number of Ports:
8 Server Ports
Max Servers Supported:
256 (cascaded)
Form Factor:
1U Rackmount
Console Interface:
PS/2 (Mouse, Keyboard), VGA Monitor
Server Port Connector:
DB25 (x8)
Admin Port:
RJ-45
Power Requirements:
115V/230V AC, 60Hz/50Hz, 2.5A/1.5A
Switching Method:
Front-panel pushbutton, Auto-scan, Remote
Scan Intervals:
1, 3, 5, 7, 9, 11, 13, 16 seconds (selectable)
Management Type:
Local Console, Remote
Condition:
Used – Inspected and in Good Condition
Country/Region of Manufacture:
United States
Seller Notes:
Unit only; no cables included. Inspected and in good condition.
Condition Notes:
Raritan MasterConsole II KVM-0D0 8-Port KVM Switch. Inspected and in good condition. Light surface wear consistent with rack use. All front-panel buttons and rear-panel ports appear intact and undamaged.
7ft KVM combo cable coiled — VGA HD15 male and dual PS/2 connectors visible at one end Full length view of AWM 7ft KVM cable coiled, showing VGA HD15 and dual PS/2 connectors at both ends
Add to Cart
Quick view

KVM Cable 7ft VGA HD15 Male Dual PS/2 Mouse Keyboard 209864-0001 KVM Switch

AWM

$9.00
Was: $17.50
KVM Cable 7ft VGA HD15 Male Dual PS/2 Mouse Keyboard 209864-0001 KVM SwitchThis is a 3-in-1 KVM combo cable designed to connect a keyboard, mouse, and monitor to KVM switches. The cable combines VGA...
29957
SKU:
29957
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Unbranded
Model:
209864-0001
MPN:
209864-0001
Type:
KVM Combo Cable
SKU:
29957
Cable Length:
7 ft (approx. 2.1 m)
Connector A:
VGA HD-15 Male (15-pin)
Connector B 1:
PS/2 6-pin Mini-DIN Male (Keyboard — Purple)
Connector B 2:
PS/2 6-pin Mini-DIN Male (Mouse — Green)
Compatible With:
PS/2 keyboard and mouse KVM switches
Number of Connectors:
3 (1x VGA HD15, 2x PS/2 Mini-DIN)
Cable Type:
3-in-1 KVM Combo (VGA + Dual PS/2)
Gender:
Male to Male
Color:
Gray
Seller Notes:
Cable only; no additional accessories included.
Condition:
Used – Inspected
Condition Notes:
This KVM VGA + dual PS/2 combo cable (209864-0001) has been inspected and is in good used condition. Cable jacket is intact; all connectors present with no broken pins visible. Normal handling wear.
Compaq 147095-001 12-foot KVM cable coiled on white surface showing full cable length with VGA and PS/2 connectors at one end Compaq 147095-001 KVM cable CPU-end connectors closeup showing blue VGA HD15 male, green PS/2 keyboard, and purple PS/2 mouse mini-DIN plugs
Add to Cart
Quick view

Compaq 147095-001 KVM Cable CPU to Switch VGA PS/2 Keyboard Mouse 12 Ft

Compaq

$15.00
Was: $30.00
Compaq 147095-001 KVM Cable CPU to Switch VGA PS/2 Keyboard Mouse 12 FtKVM cable assembly connecting a computer CPU to a Compaq KVM switch. Transmits video, keyboard, and mouse signals over a single...
25651
SKU:
25651
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Brand:
Compaq
Model:
147095-001
MPN:
147095-001
Type:
KVM Cable — CPU to Switch
SKU:
25651
Cable Length:
12 Feet
Connector Type (CPU End):
VGA HD15 (Male), PS/2 Mini-DIN 6-pin x2
Connector Type (Switch End):
VGA HD15 (Female), PS/2 Mini-DIN 6-pin x2
Interface:
VGA, PS/2 Keyboard, PS/2 Mouse
Compatible With:
Compaq KVM switches, PS/2 keyboard/mouse KVM systems
Cable Jacket:
Gray PVC, 30V VW-1 Low Voltage Computer Cable
Cable Rating:
AWM Style 2919, 30V, 80°C, E101344
Seller Notes:
Cable only; pulled from a working environment.
Condition Notes:
Compaq 147095-001 KVM cable in good used condition. Inspected and pulled from a working environment. Cable jacket intact, all VGA and PS/2 connectors clean and undamaged. Normal surface wear only.

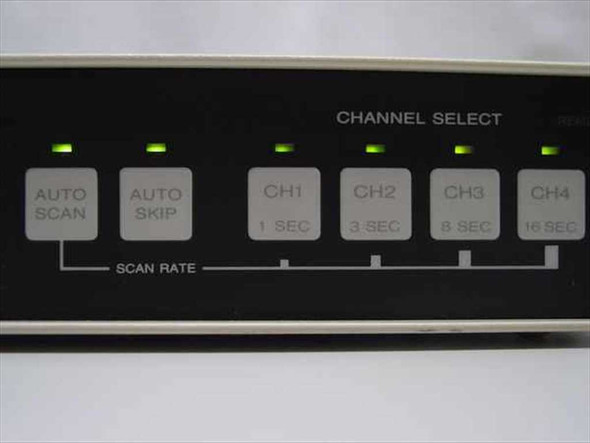

Raritan RCI MC4E Master Console 4-Port KVM Switch – front panel showing RCI logo and channel select buttons Raritan MC4E front panel closeup – Channel Select buttons CH1 CH2 CH3 CH4 with scan rate indicators and green LEDs
