Power Tronic

Power Tronic WK-6145DL3 145W ATX Switching Power Supply 100-240V Desktop PC

(No reviews yet) Write a Review
SKU:
19250
MPN:
WK-6145DL3
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout

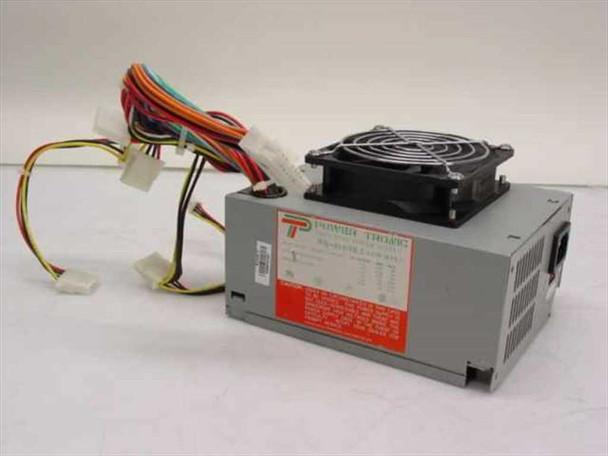

  • Power Tronic WK-6145DL3 145W ATX switching power supply — three-quarter front view showing fan, housing, and Molex output cables
  • Power Tronic WK-6145DL3 label detail showing model number, 100-240V dual input voltage specs, and DC output ratings table
  • Power Tronic WK-6145DL3 power supply — output cable harness closeup showing Molex 4-pin peripheral connectors and fan
$40.00
Was: $80.00
Current Stock: 1

Sold Out

Description

Power Tronic WK-6145DL3 145W ATX Switching Power Supply 100-240V Desktop PC

A 145W switching power supply for legacy desktop PC systems. Provides regulated DC voltages across multiple rails and accepts 100-240V AC input with manual voltage selection.

Specifications & What's Included

  • Model: WK-6145DL3 | Power Output: 145W Max
  • Input: AC 100-120V / 200-240V, 4.2A / 2.3A, 47-63Hz
  • DC Outputs: +3.3V, +5V, +12V, -5V, -12V, +5VSB
  • Form Factor: AT/ATX Desktop | Connectors: Molex 4-pin, ATX main
  • Cooling: Single internal fan | Manual voltage selection switch
  • Certifications: UL, Nemko | Origin: Taiwan
  • Unit only; no accessories included

Applications

This unit is designed for legacy AT and ATX form factor desktop computers from the 1990s through early 2000s. It was commonly used in standard tower and mid-tower PC builds requiring dual voltage support for international deployment. Compatible with systems using Molex peripheral connectors and standard ATX power distribution.

Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

Condition: Used
This Power Tronic WK-6145DL3 145W ATX Switching Power Supply has been tested at our facility and is in good working order. The unit powers on and functions as expected. Cosmetically, the gray steel housing shows typical shelf wear consistent with used surplus stock; the output cable harness and Molex connectors are intact and undamaged, as visible in our photos. The label is present and legible, showing the full DC output ratings and voltage selection information. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Power Tronic
Model:
WK-6145DL3
MPN:
WK-6145DL3
SKU:
19250
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only; no additional accessories included.
Form Factor:
AT/ATX Desktop
Power Output:
145W Max
Power Requirements:
AC 100-120V / 200-240V, 4.2A / 2.3A, 47-63Hz
DC Output Voltages:
+3.3V, +5V, +12V, -5V, -12V, +5VSB
Voltage Selection:
Manual selection switch on metal case
Frequency:
47-63Hz
Cooling:
Single internal fan
Connector Type:
Molex 4-pin peripheral, ATX main connector
Compatible With:
Legacy desktop PC systems, AT/ATX form factor cases
Country of Manufacture:
Taiwan
Certifications:
UL, N (Nemko)
Condition Notes:
Power Tronic WK-6145DL3 145W ATX switching power supply. Tested and in good working order. Housing shows typical shelf wear; cables and connectors are intact. Please contact us with any questions.
View AllClose

Related Products

Related Products

Power Tronic PK-6145DT3 145W ATX switching power supply — three-quarter front view showing fan and output harness with Molex and floppy connectors Power Tronic PK-6145DT3 145W ATX power supply — side and rear view showing AC inlet, fan grille, and output cable harness
Add to Cart
Quick view

Power Tronic PK-6145DT3 145W ATX Switching Power Supply 20-Pin Desktop PC

Power Tronic

$40.00
Was: $125.00
Power Tronic PK-6145DT3 145W ATX Switching Power Supply 20-Pin Desktop PC This is a used ATX switching power supply rated for 145W maximum output. The unit supplies regulated DC power to desktop PC...
19235
SKU:
19235
Availability:
Usually ships within 1-2 business days.
Weight:
5.00 LBS
Brand:
Power Tronic
Model:
PK-6145DT3
MPN:
PK-6145DT3
SKU:
19235
Condition:
Used – Inspected and Tested
Seller Notes:
Unit only — no additional accessories included.
Form Factor:
ATX Desktop
Power Output:
145W Max
Connector Type:
20-Pin ATX Main, 4-Pin Molex, Floppy
AC Input Voltage:
100V / 120V / 200V / 240V (selectable)
AC Input Current:
4.2A / 2.3A
Frequency:
47-63 Hz
DC Output +3.3V:
Min 0.3A / Max 6A (100W Max combined)
DC Output +5V:
Min 1.5A / Max 18A
DC Output +12V:
Min 0.2A / Max 4A
DC Output -5V:
Min 0A / Max 0.3A
DC Output -12V:
Min 0A / Max 0.3A
DC Output +5VSB:
Min 0A / Max 0.2A
Cooling:
Single 80mm case fan
Compatible With:
ATX desktop computers, 20-pin motherboards
Country of Manufacture:
Taiwan
Manufacturer:
Powertech Electronic Co., Ltd.
Condition Notes:
This Power Tronic PK-6145DT3 145W ATX power supply has been tested and is in working order. Good used condition with normal cosmetic wear. All output leads present. Please view photos and contact us with questions.

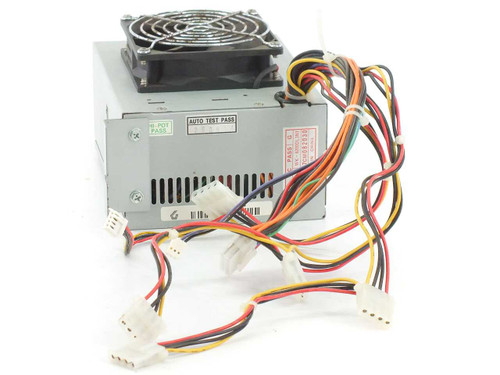

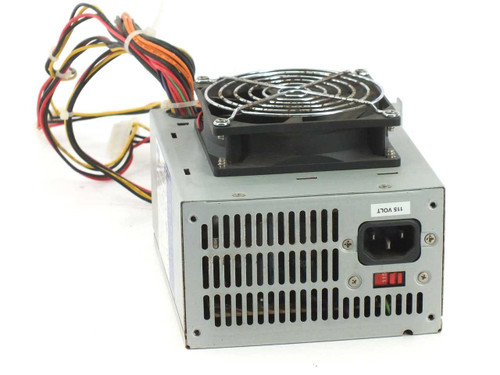

Gateway 6500125 Power Tronics WK-6200DL3N 200W ATX power supply — rear view showing IEC power inlet, 115V selector switch, and cooling fan Gateway 6500125 Power Tronics WK-6200DL3N ATX power supply — side view showing output wiring harness with Molex connectors and Auto Test Pass QC label
