Power Tronic PK-6145DT3 145W ATX Switching Power Supply 20-Pin Desktop PC
This is a used ATX switching power supply rated for 145W maximum output. The unit supplies regulated DC power to desktop PC motherboards and components via multiple voltage rails and connectors.
Specifications & What's Included
- Model: PK-6145DT3 | Manufacturer: Powertech Electronic Co., Ltd. (Taiwan)
- Form Factor: ATX Desktop | Connector: 20-Pin ATX Main, 4-Pin Molex, Floppy
- Power Output: 145W Max
- AC Input: 100V / 120V / 200V / 240V (selectable) | Frequency: 47–63 Hz
- DC Rails: +3.3V (6A max), +5V (18A max), +12V (4A max), ±5V/±12V (0.3A max each), +5VSB (0.2A max)
- Cooling: Single 80mm case fan
- Unit only—no additional accessories included
Applications
This power supply was designed for ATX-form-factor desktop computers from the late 1990s through early 2000s, supporting 20-pin motherboard connectors. It is compatible with legacy systems running processors such as Intel Pentium III/IV and AMD Athlon/Duron architectures. The unit fits standard PC tower cases and was commonly used in business desktop and entry-level consumer builds of that era.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

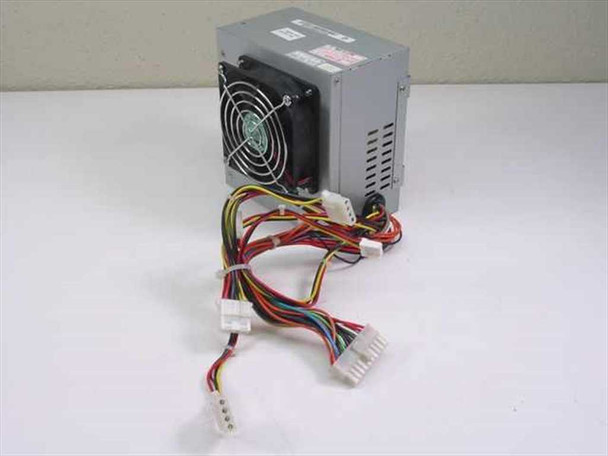

This Power Tronic PK-6145DT3 145W ATX switching power supply has been tested and confirmed to be in working order at our facility. The unit is in good used condition with normal cosmetic wear consistent with prior service. The chassis is intact, the fan appears in good shape, and all output connector leads are present and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Power Tronic |
Model: |
PK-6145DT3 |
MPN: |
PK-6145DT3 |
SKU: |
19235 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Unit only — no additional accessories included. |
Form Factor: |
ATX Desktop |
Power Output: |
145W Max |
Connector Type: |
20-Pin ATX Main, 4-Pin Molex, Floppy |
AC Input Voltage: |
100V / 120V / 200V / 240V (selectable) |
AC Input Current: |
4.2A / 2.3A |
Frequency: |
47-63 Hz |
DC Output +3.3V: |
Min 0.3A / Max 6A (100W Max combined) |
DC Output +5V: |
Min 1.5A / Max 18A |
DC Output +12V: |
Min 0.2A / Max 4A |
DC Output -5V: |
Min 0A / Max 0.3A |
DC Output -12V: |
Min 0A / Max 0.3A |
DC Output +5VSB: |
Min 0A / Max 0.2A |
Cooling: |
Single 80mm case fan |
Compatible With: |
ATX desktop computers, 20-pin motherboards |
Country of Manufacture: |
Taiwan |
Manufacturer: |
Powertech Electronic Co., Ltd. |
Condition Notes: |
This Power Tronic PK-6145DT3 145W ATX power supply has been tested and is in working order. Good used condition with normal cosmetic wear. All output leads present. Please view photos and contact us with questions. |
