Description
Gateway 6500125 Power Tronics WK-6200DL3N 200W ATX Desktop Power Supply
This is a 200W ATX form factor power supply designed for desktop computers. It converts AC input to regulated DC output across multiple voltage rails to power system components.
Specifications & What's Included
- Model: WK-6200DL3N / WK-6200DL3N1 (MPN 6500125)
- Power Rating: 200W maximum output
- Input: 100–120V / 200–240V AC, 50/60Hz with manual 115V/230V selector
- Outputs: +3.3V (12A), +5V (18A), +12V (4.2A), ±5V, ±12V, +5VSB
- Connectors: ATX 20-pin, 4-pin Molex, floppy power connector
- Cooling: 80mm internal fan
- Certifications: UL, CE, CB, N
Applications
This power supply was used in Gateway desktop computers and other systems supporting standard ATX form factor. The 200W rating suits older desktop platforms from the late 1990s through early 2000s, including single-processor workstations and entry-level systems. It is compatible with any ATX-compatible chassis requiring this power specification.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

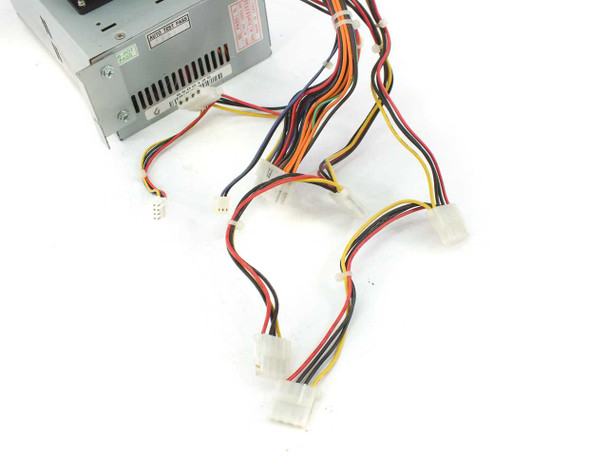

This Gateway 6500125 / Power Tronics WK-6200DL3N 200W ATX desktop switching power supply has been tested and confirmed to be in working order at our facility. The unit presents in typical used condition — the steel housing shows light surface scuffs consistent with prior installation and removal from a desktop system. The QC label on the side panel shows 'Auto Test Pass' and 'Hi-Pot Pass' markings from the original manufacturer's production testing, in addition to our own operational verification. All output wiring harnesses with 4-pin Molex and floppy power connectors are present and intact. The IEC power inlet and rear voltage selector switch are undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Power Tronics / Powertech Systems |
Model: |
WK-6200DL3N |
Secondary Model: |
WK-6200DL3N1 |
MPN: |
6500125 |
SKU: |
17002 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Power supply only — no PC chassis included. |
Form Factor: |
ATX |
Power Rating: |
200W Max |
Input Voltage: |
100–120V / 200–240V AC, 50/60Hz (47–63Hz) |
Input Current: |
5A @ 120V / 3A @ 240V |
Output +3.3V: |
Min 0.3A / Max 12A |
Output +5V: |
Min 2.5A / Max 18A |
Output +12V: |
Min 0.2A / Max 4.2A |
Output -5V: |
Min 0A / Max 0.5A |
Output -12V: |
Min 0A / Max 0.8A |
Output +5VSB: |
Min 0A / Max 0.7A |
Certifications: |
UL, CE, CB, N |
Compatible With: |
Gateway desktop computers, ATX form factor systems |
Country of Manufacture: |
China |
Cooling: |
80mm internal cooling fan |
Connector Types: |
ATX 20-pin, 4-pin Molex, floppy power |
Voltage Switch: |
115V/230V manual selector switch on rear |
Condition Notes: |
This Gateway 6500125 / Power Tronics WK-6200DL3N 200W ATX PSU has been tested and is in working order. Light surface wear on housing. All output connectors present and intact. Please view photos and contact us with questions. |
