Polaris Electronics Accu-Weld 5100 80KVA Projection Cap Welder Power Supply 480V

(No reviews yet) Write a Review
SKU:
52226
MPN:
Accu-Weld 5100
Condition:
Used
Availability:
Large equipment — requires palletized freight shipping. Contact us for a shipping quote or to arrange local pickup.
Weight:
925.00 LBS
Shipping:
Calculated at Checkout
  • Polaris Electronics Accu-Weld 5100 80KVA cap welder power supply – left-side cabinet view showing Polaris Electronics Corp logo on top panel

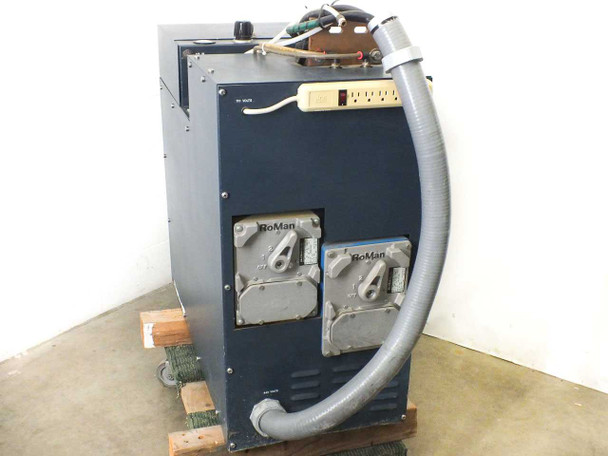

  • Polaris Electronics Accu-Weld 5100 – rear view showing two RoMan welding transformer connectors, power strip, and flexible hose
  • Accu-Weld 5100 top control panel – weld pressure gauge and pressure regulator knob with key switch
  • Accu-Weld 5100 top panel detail – air in, throttle, moisture indicator, and data cable ports with tubing connections
  • RoMan Mfg. Inc. welding transformer connectors – two units with selector switches (positions OFF, 1, 2) mounted on rear panel
  • Polaris Electronics Corp logo close-up on cabinet – nameplate reading Polaris Electronics Corp

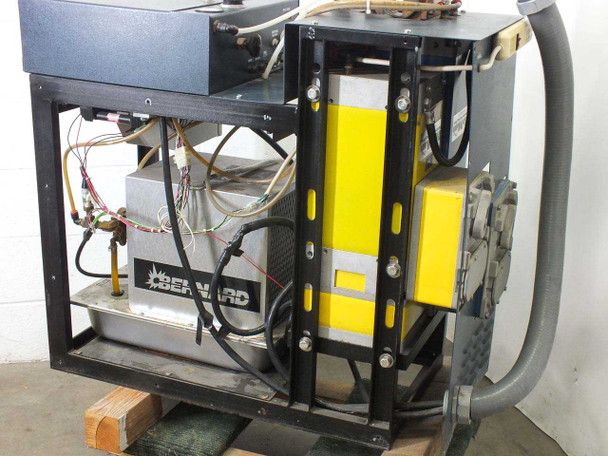

  • Accu-Weld 5100 interior right side – Bernard cooling unit (yellow/blue) and wiring harness visible with open frame
  • Accu-Weld 5100 interior – Bernard cooling unit label close-up, wiring and coolant hoses visible
  • Bernard cooling unit close-up – unit mounted inside open frame with coolant fittings and hoses
  • Bernard cooling unit alternate angle – showing right side with brass fitting and surface staining on drip pan

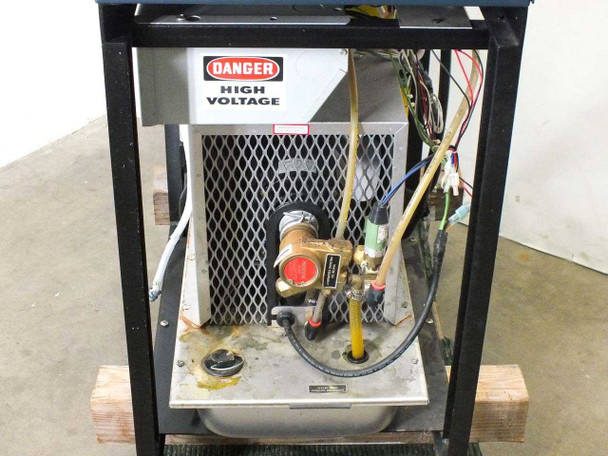

  • Accu-Weld 5100 lower interior – DANGER HIGH VOLTAGE warning label, brass solenoid valve, and mesh ventilation panel
  • Accu-Weld 5100 internal electronics – top compartment open showing control PCBs, transformer, relay block, and high-voltage capacitor assembly under protective cover
  • Accu-Weld 5100 internal electronics alternate angle – control board, solenoid valve, and wiring harness detail
  • RoMan Mfg. Inc. transformer nameplate – 80 KVA, 480V primary, 60 Hz, single phase, model S48680J2249W5W, serial 78941, date 01 AUG 95, waterflow 1 GPM
  • Polaris Electronics Corp part number label – PN A17-5022-95 and 5022-00 on cabinet exterior
$4,000.00
Was: $8,000.00
Current Stock: 1

Sold Out

Description

Polaris Electronics Accu-Weld 5100 80KVA Projection Cap Welder Power Supply 480V

80 KVA projection capacitor welder power supply designed for precision welding of microelectronic and optoelectronic packages. Operates on single-phase 480V primary input with adjustable secondary voltage output.

Specifications & What's Included

  • Model: Accu-Weld 5100 (MPN A17-5022-95)
  • Power Rating: 80 KVA
  • Primary Voltage: 480V, Single Phase, 60 Hz
  • Secondary Voltage: 122V–480V adjustable
  • Duty Cycle: 50%
  • Temperature Rise: 110°C
  • Cooling: 1 GPM waterflow, Bernard cooling unit included
  • Welding Transformer: RoMan Mfg. Inc. Model S48680J2249W5W
  • Dimensions: 40" W × 18" D × 38" H on casters
  • Welding head not included

Applications

Projection cap welders are used for joining component leads in DIP, TO-can, optical, semiconductor, and crystal package assembly. This supply powered RoMan transformer systems common in microelectronics manufacturing through the 1990s–2000s for high-speed, repeatable welds on package terminals and optical subassemblies. Compatible with standard projection welding electrode tooling for discrete component and custom optoelectronic packaging.

Condition: Used
This Polaris Electronics Accu-Weld 5100 80KVA projection cap welder power supply has been inspected and appears to be in good used condition. The cabinet exterior shows light surface scuffing and minor marks consistent with shop use. The internal electronics compartment is intact and the control boards, wiring, RoMan welding transformer, and Bernard cooling unit are all present. Note that the welding head is not included — the photos show everything that comes with the unit. There is some staining visible on the Bernard cooling unit drip pan. Due to its size and weight, this unit requires palletized freight shipping. Please view our photo set and contact us if you have any questions, to obtain a shipping quote, to arrange local pickup, or to schedule a viewing at our facility.
