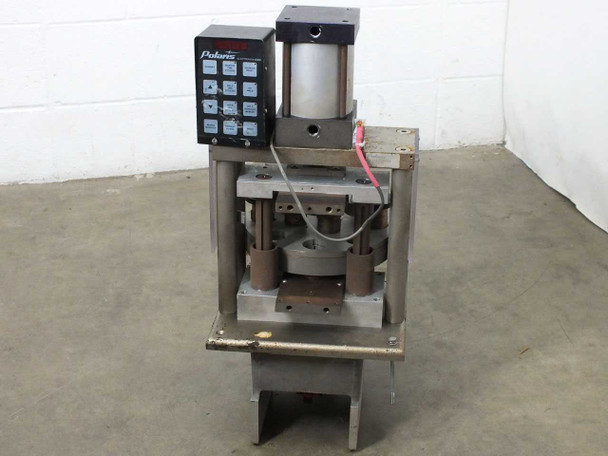

Polaris Electronics Accu-Weld 7100 AC Multi-Station Projection Cap Welder Head B07-0130-10
AC projection resistance cap welder head designed for automated microelectronic and optoelectronic package sealing. Features a 10-position rotary indexing table with integrated pneumatic actuation and Polaris Electronics keypad controller.
Specifications & What's Included
- Model: Accu-Weld 7100 (MPN: B07-0130-10)
- Type: AC Multi-Station Projection Cap Welder Head

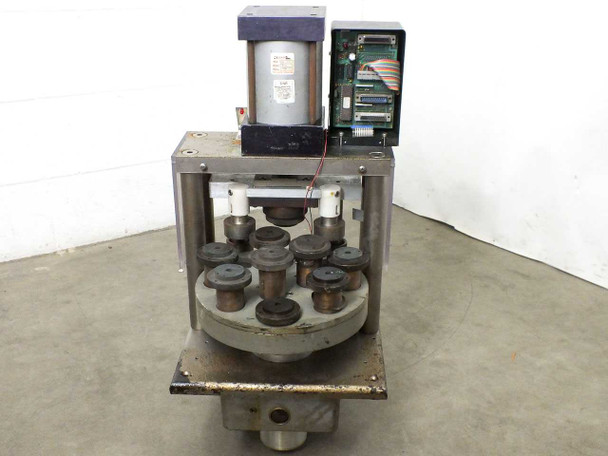

- Stations: 10-position rotary indexing table
- Compatible packages: DIP, TO, Optical, Semiconductor, Crystal, Custom
- Control functions: Squeeze Time, Weld Time, Hold Time, Percent Power, Index with weld schedule memory
- Actuator: Pneumatic cylinder
- Dimensions: 14" W x 12" D x 28" H

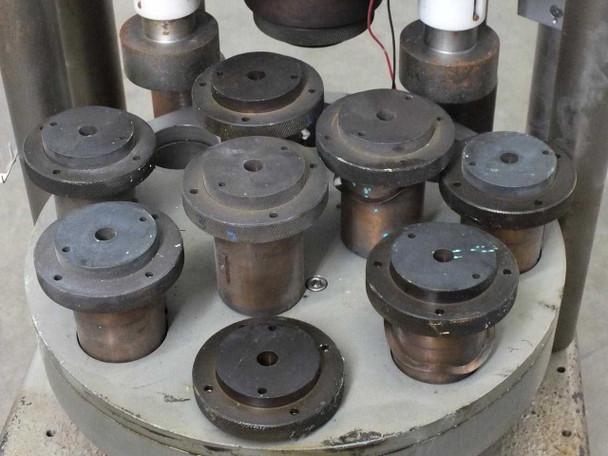

- All 10 tooling fixtures included
Applications
Used in automated cap welding operations for semiconductor and optoelectronic assemblies. The multi-station rotary table enables high-volume production of sealed microelectronic packages including integrated circuits, discrete components, and custom assemblies. Typical industrial applications include hybrid circuit manufacturing, sensor packaging, and crystal oscillator sealing.
Condition: Used
This Polaris Electronics Accu-Weld 7100 AC multi-station projection cap welder head has been visually inspected and is in used condition. As a component of a larger welding system, it cannot be powered or tested at our facility — an external power supply is required and is not included with this listing. The frame and rotary indexing table show surface corrosion and general wear consistent with industrial use. The 10 weld tooling fixtures are present on the rotary table. The control panel keypad shows wear and some surface soiling but all buttons and the LED display appear intact. A Semicoa Semiconductors asset tag (Property 03-100) is affixed to the pneumatic cylinder column. Please view our photo set and contact us if you have any questions.
This Polaris Electronics Accu-Weld 7100 AC multi-station projection cap welder head has been visually inspected and is in used condition. As a component of a larger welding system, it cannot be powered or tested at our facility — an external power supply is required and is not included with this listing. The frame and rotary indexing table show surface corrosion and general wear consistent with industrial use. The 10 weld tooling fixtures are present on the rotary table. The control panel keypad shows wear and some surface soiling but all buttons and the LED display appear intact. A Semicoa Semiconductors asset tag (Property 03-100) is affixed to the pneumatic cylinder column. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Polaris Electronics Corp |
Model: |
Accu-Weld 7100 |

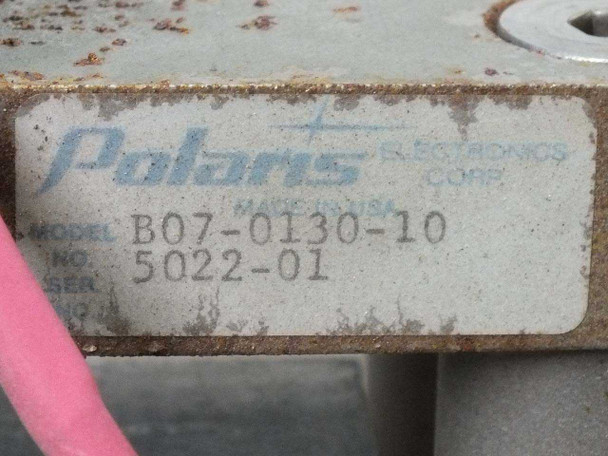

MPN: |
B07-0130-10 |
Secondary Model: |
5022-01 |
SKU: |
52230 |
Type: |
AC Multi-Station Projection Cap Welder Head |
Condition: |
Used – Pulled from Working Environment |
Number of Stations: |
Multi-Station (10-position rotary indexing table) |
Weld Type: |
AC Projection / Resistance Cap Welding |
Compatible Packages: |
DIP, TO, Optical, Semiconductor, Crystal, Custom |
Application: |
Microelectronic and Optoelectronic Package Sealing |

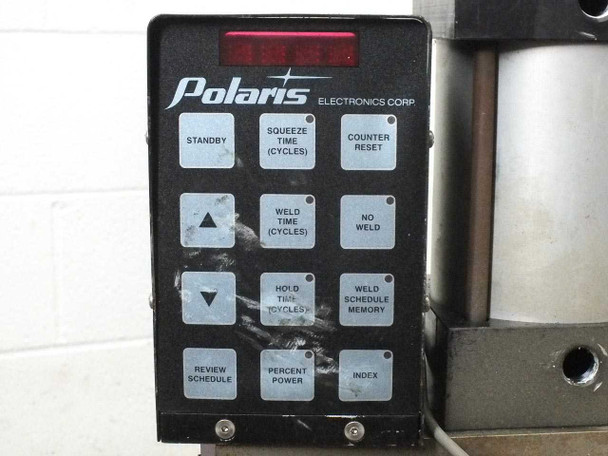

Control Panel: |
Integrated Polaris Electronics Corp keypad controller |
Control Functions: |
Squeeze Time, Weld Time, Hold Time, Percent Power, Index |
Control Features: |
Weld Schedule Memory, Review Schedule, No Weld, Counter Reset |
Actuator Type: |
Pneumatic cylinder |
Power Supply Required: |
Yes – external power supply required (not included) |
Overall Dimensions: |
14" W x 12" D x 28" H |
Country/Region of Manufacture: |
United States |
Form Factor: |
Benchtop / Floor-Standing |
Seller Notes: |
Weld head only — external power supply required and not included. 10 weld tooling fixtures present on rotary table. |
Condition Notes: |
Polaris Accu-Weld 7100 cap welder head, used, visually inspected. Cannot be tested — external power supply required, not included. Frame and table show surface corrosion and industrial wear. All 10 tooling fixtures present. Sold as-is. |
