Hitran AT0098-01 Welding Power Supply Transformer 800V Input 22.8/11.4V 1Ph 60Hz

(No reviews yet) Write a Review
SKU:
44932
MPN:
AT0098-01
Condition:
Used
Availability:
Freight shipping required — contact us for a shipping quote before purchasing.
Weight:
685.00 LBS
Shipping:
Calculated at Checkout
  • Hitran AT0098-01 welding power supply transformer — front/right side view showing enclosed steel cabinet on pallet with red coolant hose on top
  • Hitran AT0098-01 welding transformer — left/rear quarter view showing ventilated top enclosure, control panel, and cable routing

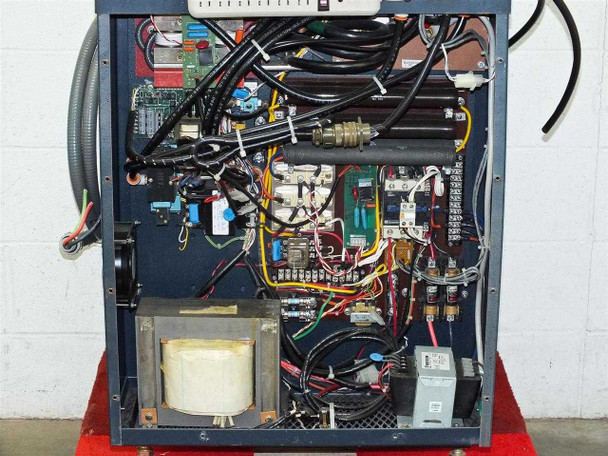

  • Hitran AT0098-01 transformer interior — right side panel removed showing main transformer core, control PCB, wiring harness, terminal blocks, and internal components

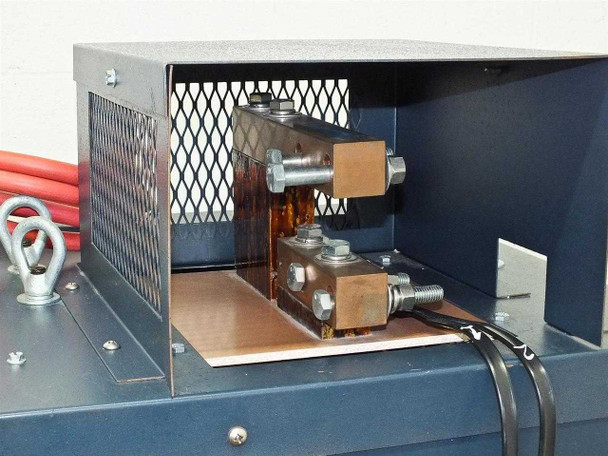

  • Hitran AT0098-01 — top enclosure open showing copper bus bar output terminals and secondary output connection hardware

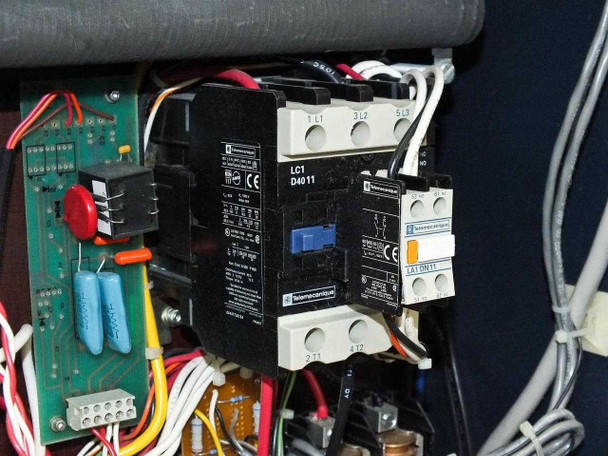

  • Hitran AT0098-01 interior detail — Telemecanique LC1 D4011 contactor with auxiliary contact block and control PCB visible
  • Hitran AT0098-01 — top panel showing coiled red coolant hose with brass fitting and hose clamp attachment points
  • Hitran AT0098-01 nameplate label — Cat. No. AT0098-01, Type ISO, SN 049374-0002, 200C Insul. Sy., 110C Rise, Class AA, 60Hz, 1PH, Input 800V, Output 22.8/11.4V, Hitran Flemington NJ
  • Hitran AT0098-01 top control panel — Operate Throttle knob, Weld Pressure gauge, Pressure Regulator knob, pneumatic fittings labeled IN/OUT/DOWN/UP, and Data Cable multi-pin port

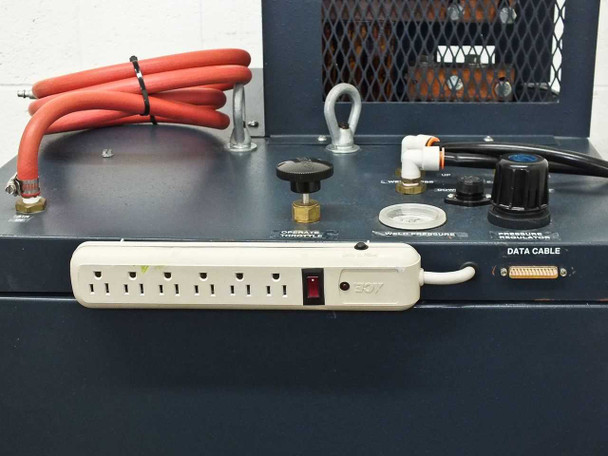

  • Hitran AT0098-01 top panel — 6-outlet power strip attached to top surface alongside control panel and coolant hose

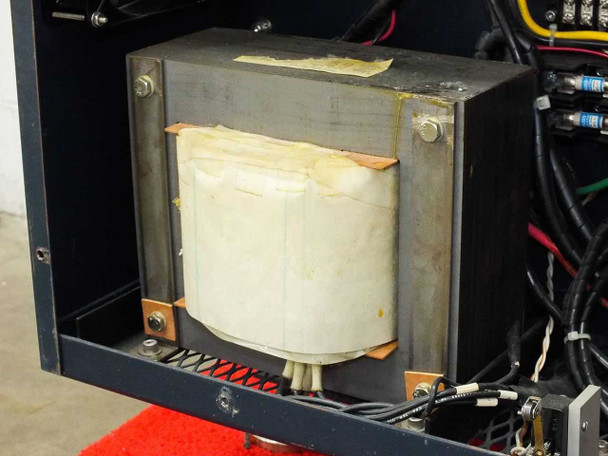

  • Hitran AT0098-01 interior — main toroidal/core-type welding transformer visible with white insulation wrap and copper foil windings
  • Hitran AT0098-01 interior — secondary control transformer (appears to be GE or similar branded) with terminal block connections
  • Hitran AT0098-01 — ventilated side mesh panel view showing internal coil/transformer components visible through expanded metal grille
  • Hitran AT0098-01 side panel detail — Weld Sequencer connector and No Weld Interlock ON/OFF toggle switch panel

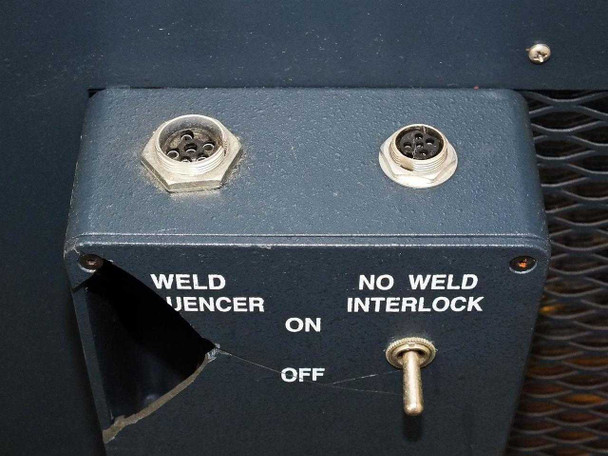

  • Hitran AT0098-01 — close-up of Weld Sequencer circular connector and No Weld Interlock toggle switch on side panel
$4,000.00
Was: $8,000.00
Current Stock: 1

Sold Out

Description

Hitran AT0098-01 Welding Power Supply Transformer 800V Input 22.8/11.4V 1Ph 60Hz

Single-phase welding power supply transformer with 800V primary input and dual secondary output of 22.8V/11.4V. Designed for use in industrial welding systems requiring step-down voltage conversion and integrated control functions.

Specifications & What's Included

  • Model: AT0098-01 | Serial: SN 049374-0002
  • Input: 800V, 1-phase, 60Hz
  • Output: 22.8V / 11.4V switchable
  • Class AA transformer with ISO 200C insulation; 110°C temperature rise
  • Enclosed steel cabinet with ventilated cooling mesh
  • Liquid-cooled with included coolant hose
  • Telemecanique LC1 D4011 contactor with auxiliary contact
  • Includes weld sequencer connector, pressure regulator, throttle control, and data cable port
  • Manufactured in Flemington, NJ

Applications

Welding transformers of this type serve as power conversion and control units in industrial welding installations, stepping down high-voltage primary power to safe, usable secondary levels for arc welding processes. The dual-output design and integrated sequencer and pressure controls support automated or semi-automated welding sequences. These units are typically mounted in central welding stations or integrated into larger welding systems where reliable voltage conversion and control switching are required.

Condition: Used
This Hitran AT0098-01 welding power supply transformer has been inspected and appears to be in good overall condition. We were not able to bench-test this unit, so it is being sold without a functional guarantee. The steel enclosure is intact with no apparent structural damage. The coolant hose, pressure controls, weld sequencer connector, and data cable port are all present. Internal components including the main transformer core, contactor, control PCB, and wiring appear intact and undamaged based on visual inspection. This unit is large and heavy — freight shipping is required. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Hitran
Model:
AT0098-01
MPN:
AT0098-01
Type:
Welding Power Supply Transformer
SKU:
44932
Serial Number (internal):
SN 049374-0002
Catalog Number:
AT0098-01 1000
Primary Voltage (Input):
800V
Secondary Voltage (Output):
22.8V / 11.4V
Phase:
Single Phase (1PH)
Frequency:
60 Hz
Insulation Class:
ISO 200C Insulation System
Temperature Rise:
110°C Rise
Transformer Class:
Class AA
Insulation Type:
ISO
Enclosure:
Enclosed steel cabinet with ventilated mesh panels
Cooling:
Liquid cooled — includes coolant hose
Controls:
Operate Throttle, Weld Pressure gauge, Pressure Regulator
Interlock:
No Weld Interlock toggle switch
Sequencer:
Weld Sequencer connector
Data Interface:
Data Cable port (multi-pin connector)
Contactor:
Telemecanique LC1 D4011 contactor with auxiliary
Country/Region of Manufacture:
United States
Manufacturer Location:
Flemington, NJ 08822
Seller Notes:
Includes coolant hose, weld sequencer, pressure controls, and data cable port. Freight shipping required.
Condition:
Used – Inspected, not bench-tested
Condition Notes:
Hitran AT0098-01 welding power supply transformer. Inspected, appears in good overall condition. Not bench-tested — sold without functional guarantee. Internal components and controls present and visually intact. Freight shipping required.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
