Oriel Optical Alignment Rail 16" Stage w/ Mirror Mount & 2 Micrometers 3"x3.5"

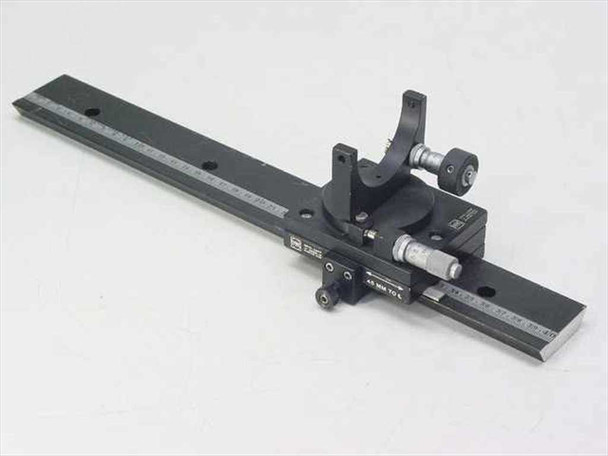

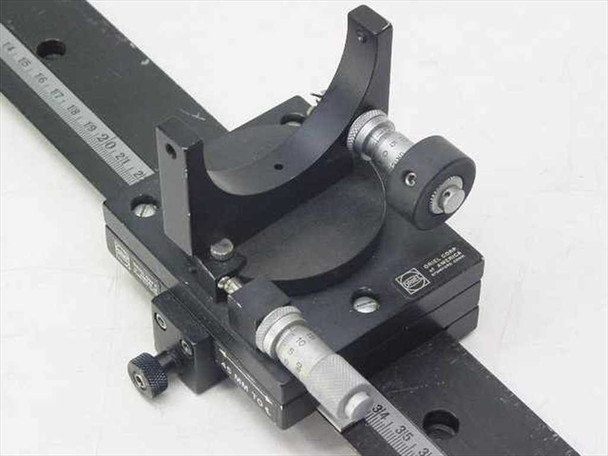

This Oriel Corp. optical alignment rail is a precision bench-mounted positioning system consisting of a 16-inch anodized aluminum rail, a 3" x 3.5" sliding stage, a circular mirror/optic mount with adjustable yoke, and two Oriel micrometer heads for fine positional control. The stage rides along the rail and locks in place, with the micrometers providing precise X and Y adjustment of the mounted optic. The rail bears a printed scale (in inches and centimeters) for coarse positioning reference, and the stage base is labeled "45 MM TO CL" indicating the centerline offset from the rail edge.
Specifications & What's Included
- Manufacturer: Oriel Corp. of America, Stamford, CT
- Rail length: approximately 16 inches
- Stage size: 3" x 3.5"
- Overall dimensions: 16" x 4" x 4"

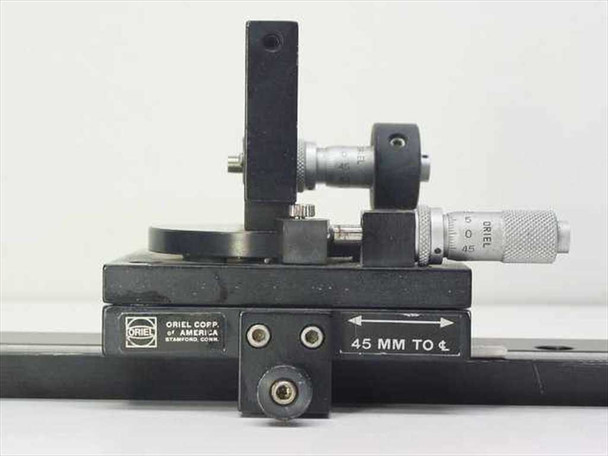

- Centerline offset: 45 mm to CL (labeled on stage base)
- Includes: optical alignment rail, 3"x3.5" stage carriage, circular mirror/optic mount with adjustable yoke arm
- Includes: 2 Oriel micrometer heads (one horizontal, one vertical axis)
- Rail surface: anodized aluminum with engraved inch/cm ruler scale
- Mounting: rail has countersunk holes for optical table or bench attachment
Applications
Oriel optical alignment rails are used in photonics labs, spectroscopy setups, laser beam steering, and general optical bench experiments where precise positioning of mirrors, lenses, filters, or other optics along a linear axis is required. The rail-and-carriage system allows components to be spaced and repositioned quickly while maintaining beam-height consistency. The integrated micrometers provide fine angular and translational adjustment of the mounted optic, making this type of assembly a standard building block in Oriel's modular optical bench system — compatible with other Oriel rail-mounted components and carriers. These systems are widely used in university physics and photonics labs, industrial metrology, laser development, and spectroscopy research, and continue to see active use as robust, durable optomechanical hardware.
This Oriel optical alignment rail with stage, mirror mount, and micrometers has been inspected and is in good used condition. The rail and all components are intact and complete. The rail surface shows light scratches and scuffs typical of used optical bench equipment — these are cosmetic and do not affect function. All photos show the actual unit and its components in detail. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Oriel |
Model: |
Optical Alignment Rail |
MPN: |
45 MM TO CL |
Type: |
Optical Alignment Rail with Stage and Mirror Mount |
SKU: |
35607 |
Manufacturer: |
Oriel Corp. of America, Stamford, CT |
Rail Length: |
16 inches |
Stage Size: |
3" x 3.5" |
Included Components: |
Mirror mount, 2 Oriel micrometers, stage |
Overall Dimensions: |
16" x 4" x 4" |
Centerline Offset: |
45 mm to centerline |
Form Factor: |
Benchtop / Optical Bench Rail |
Compatible With: |
Oriel optical bench systems and components |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Includes rail, stage, mirror mount, and 2 Oriel micrometers — complete as shown in photos. |
Condition Notes: |
This Oriel optical alignment rail with stage, mirror mount, and 2 micrometers has been inspected and is in good used condition. Light cosmetic scratches on the rail surface; all components present and intact. |
