Description
Omron J7L-50 IEC Industrial Contactor 240VAC 55A 15kW 3-Phase DIN Rail
The Omron J7L-50 is a heavy-duty IEC-compliant industrial contactor designed for three-phase motor control and power switching applications. Rated for 55A at 240VAC in AC3 service with a continuous current capacity of 70A, this contactor delivers reliable switching for motors and loads up to 15kW at 240V three-phase, 50/60Hz. The DIN rail/panel mount form factor makes it ideal for integration into motor starter panels, industrial control cabinets, and distribution boards.

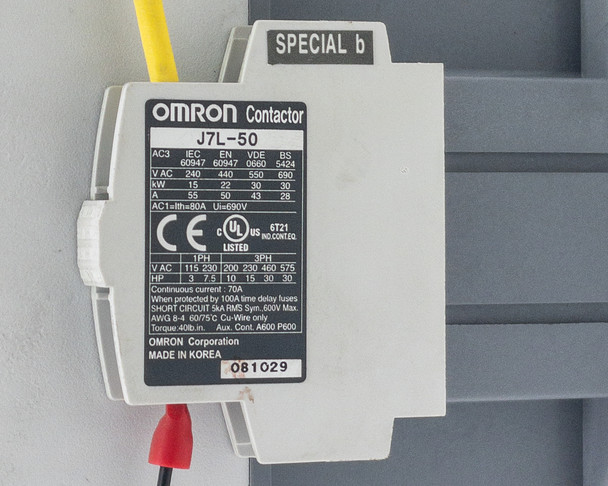

Specifications & What's Included
- Manufacturer: Omron (Korea manufacture)
- Model: J7L-50
- Rated Current: 55A AC3 @ 240VAC; 70A continuous
- Rated Voltage: 240VAC (AC3 duty); maximum rated 690VAC
- Power Rating: 15kW @ 240V, three-phase, 50/60Hz
- Frequency: 50/60Hz dual-frequency rated
- Form Factor: DIN rail and panel mount
- Main Contact Configuration: Three-pole (3P)
- Auxiliary Contact: A600 P600 (for signaling and feedback)
- Short Circuit Rating: 9kA RMS symmetrical @ 600V (100A fuse protected)
- Wire Gauge: AWG 8–4, rated 60/75°C copper conductors
- Mounting Torque: 40 lb-in
- Certifications: CE, UL, IEC 60947, EN 60947, VDE 0660
- Standards Compliance: IEC, EN, VDE, BS
- Included: Unit only; no accessories or documentation included
Applications
The Omron J7L-50 is widely used in industrial motor control circuits for machine tools, pumps, fans, compressors, and conveyor systems. IEC-compliant contactors like this model are standard in manufacturing environments, HVAC systems, and industrial automation panels across Europe and other regions following IEC standards. The heavy 55A/15kW rating makes it suitable for medium to large three-phase motors in production facilities, water treatment plants, and infrastructure installations. This series has been deployed in legacy industrial equipment and continues to be used in maintenance and retrofit applications where IEC-standard components are required.

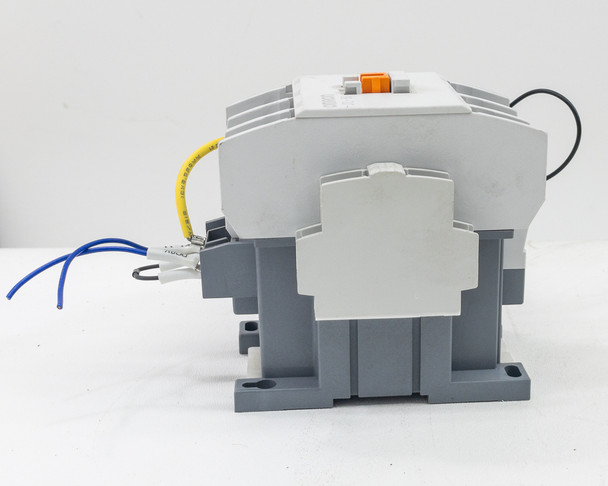

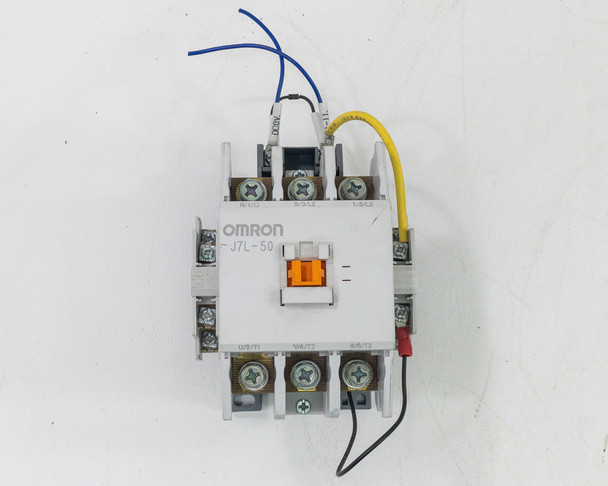

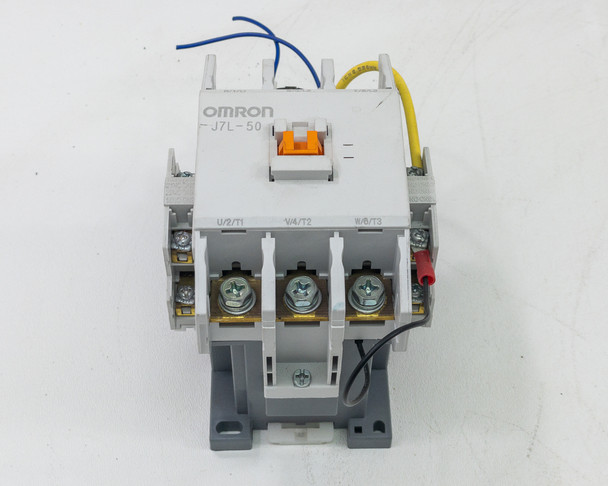

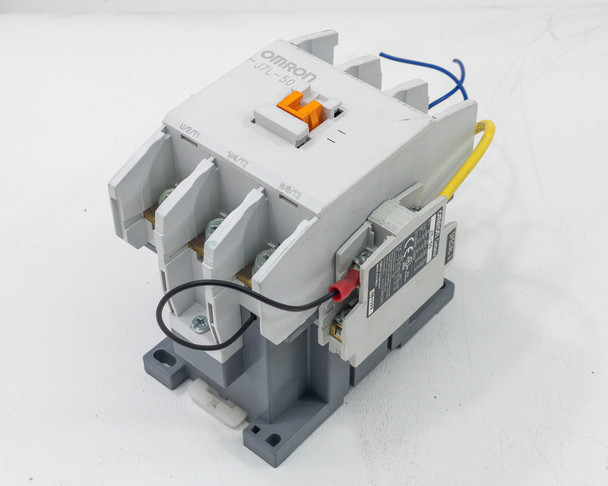

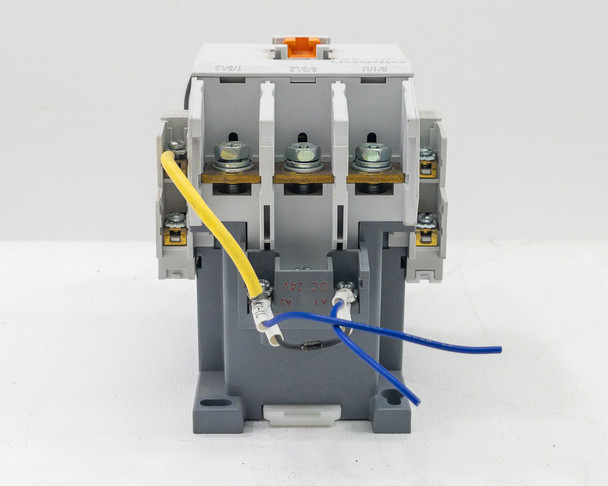

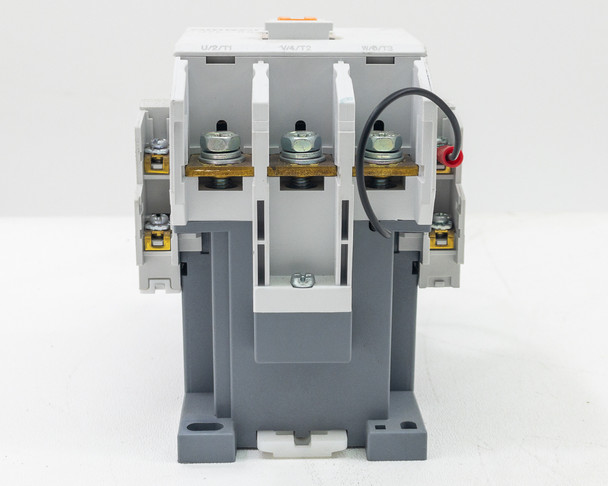

Condition: Used This Omron J7L-50 IEC Industrial Contactor has been inspected and is in good working condition. The unit was pulled from an operational environment where it was actively in use. All terminals are clean and contact surfaces are in good order. The DIN rail mounting bracket is secure and intact. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Omron |
Model: |
J7L-50 |
MPN: |
J7L-50 |
SKU: |
53358 |
Condition: |
Used – Inspected |
Seller Notes: |
Unit only; no accessories included |
Country of Manufacture: |
Korea |
Form Factor: |
DIN Rail / Panel Mount |
Voltage Rating: |
240VAC (AC3); rated to 690VAC maximum |
Current Rating: |
55A AC3 @ 240V; Continuous 70A |
Power Rating: |
15kW @ 240V, 3-Phase, 50/60Hz |
Phase: |
3-Phase |
Frequency: |
50/60Hz |
Power Requirements: |
Coil: per order suffix; Load: up to 690VAC |
Standards Compliance: |
IEC, EN, VDE, BS |
Certifications: |
CE, UL, IEC 60947, EN 60947, VDE 0660 |
Max Voltage (Ue): |
690V |
Wire Gauge: |
AWG 8–4, 60/75°C Copper |
Torque: |
40 lb-in |
Aux Contact: |
A600 P600 |
Short Circuit Rating: |
9kA RMS Sym @ 600V (100A fuse protected) |
Compatible With: |
Omron J7L series, IEC motor starters |
Condition Notes: |
Omron J7L-50 contactor, used, inspected and in good condition. Pulled from operational environment. All terminals and contacts in good order. Unit only; no accessories included. |
Maximum Voltage: |
690V (Ue) |
Auxiliary Contact: |
A600 P600 |
Type: |
IEC Industrial Contactor |
Country/Region of Manufacture: |
Korea |
Maximum Voltage (Ue): |
690V |
